Photographs and History

Harrisburg Passenger Station

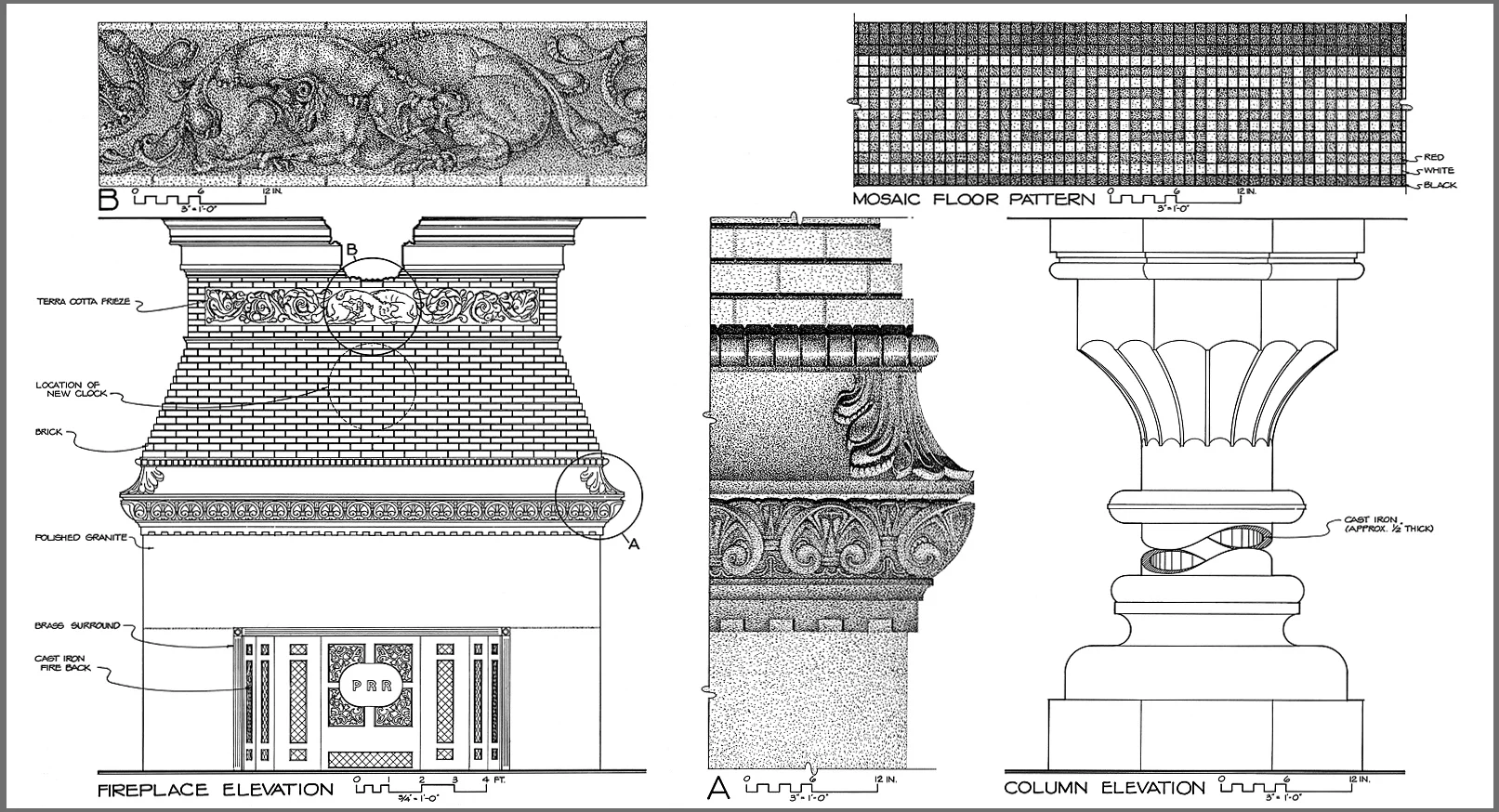

Front elevation drawing of the Harrisburg Train Station.   (below) Detail drawings of the fireplace and floor tile work. Drawings collection of the Historic American Engineering Record, National Park Service drawn by Harry Weese & Associates  .

Front elevation drawing of the Harrisburg Train Station. (below) Detail drawings of the fireplace and floor tile work. Drawings collection of the Historic American Engineering Record, National Park Service drawn by Harry Weese & Associates.

Harrisburg was at the crossroads of the eastern system, and the largest city on the PRR between Philadelphia and Pittsburgh. From the east passenger trains originated from Philadelphia, New York City, Baltimore and Washington DC, from the west traffic came via Buffalo and Pittsburgh gateways to the North, South and West.

00013a

The surviving passenger station, built between 1885-87 is the third such built by the PRR in the general area between Mulberry and Market Streets. Constructed of brick and stone, the Queen Anne style station was altered several times during the early 20th Century and featured details like facing granite and brick fireplaces in the main waiting room, coffered ceilings, wood paneling and intricate mosaic tile floor patterns. After a destructive fire in 1904, the station was completely remodeled restoring the unique gambrel roof while converting the attic space into a third floor for offices adding the eight dormers on the front (east) elevation. A major addition to facilitate the electrification to Harrisburg in 1936-37 added a two story, three bay extensions on the south end of the building to accommodate the new Power Dispatcher’s facility and State Interlocking.

Train shed interior looking east. Notice the intricate iron work on the stair railings and trusses. The active center platform has been elevated to accommodate Amtrak/ ADA compliance needs but the remaining low level platforms are still traditional herringbone brick with stone curbs. This shed is one of few remaining examples of a style of station that was once commonplace in America.

Train shed interior looking east. Notice the intricate iron work on the stair railings and trusses. The active center platform has been elevated to accommodate Amtrak/ ADA compliance needs but the remaining low level platforms are still traditional herringbone brick with stone curbs. This shed is one of few remaining examples of a style of station that was once commonplace in America.

The surviving train sheds behind and to the east of the station were of even greater significance. When constructed they were considered some of the largest of its time, utilizing historic Fink trusses constructed of wood and iron to support the roof. The twin station sheds were extended at various times and measure roughly 540 feet in length providing shelter to 8 of the 10 station tracks maintained in the busy terminal.

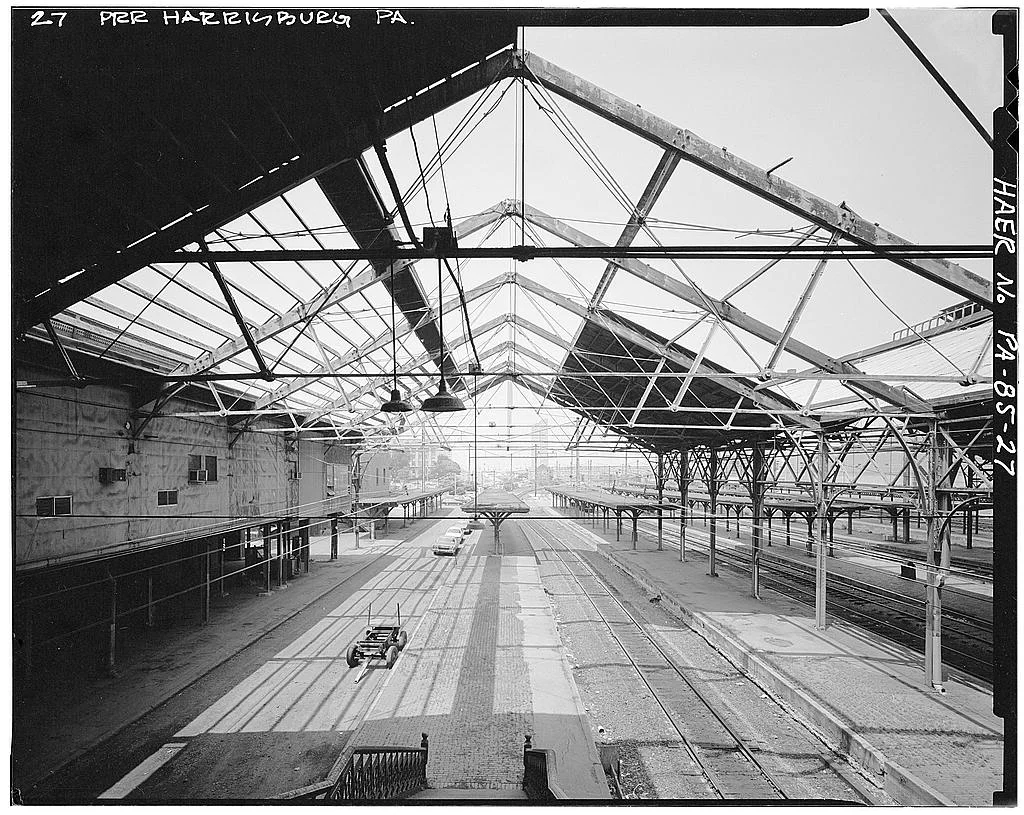

View from photographer Harlen Hambright, taken during the 1981 HAER survey. Survey caption reads "View, looking north (railroad west) under shed from concourse, showing exposed truss after shed roofing was removed." Collection of the Historic American Engineering Record, National Park Service.

View from photographer Harlen Hambright, taken during the 1981 HAER survey. Survey caption reads "View, looking north (railroad west) under shed from concourse, showing exposed truss after shed roofing was removed." Collection of the Historic American Engineering Record, National Park Service.

Current view of the south (railroad east) end of the station bound by the Mulberry Street Viaduct itself a beautiful curved concrete arch bridge. The track curving off from the bottom right is Norfolk Southern's connection with the former Reading Company Lebanon Branch, now part of the busy Harrisburg Line. The track immediately behind that and parallel to the station is the Royalton Branch which provides freight an alternate route off the Port Road via Shocks Mill, running alongside Amtrak's Keystone Line west of Roy Interlocking.

Current view of the south (railroad east) end of the station bound by the Mulberry Street Viaduct itself a beautiful curved concrete arch bridge. The track curving off from the bottom right is Norfolk Southern's connection with the former Reading Company Lebanon Branch, now part of the busy Harrisburg Line. The track immediately behind that and parallel to the station is the Royalton Branch which provides freight an alternate route off the Port Road via Shocks Mill, running alongside Amtrak's Keystone Line west of Roy Interlocking.

Today the passenger terminal and sheds survive and are on the National Register of Historic Places and are also designated as a National Engineering Landmark. Known as the Harrisburg Transportation Center, the building serves both bus lines and Amtrak, where the Keystone Service from Philadelphia and New York Terminates, and the daily New York – Pittsburgh Pennsylvanian calls in each direction. While passenger train service is a mere ghost of what it used to be, the historic building survives as a monument of what rail travel used to be for future generations.

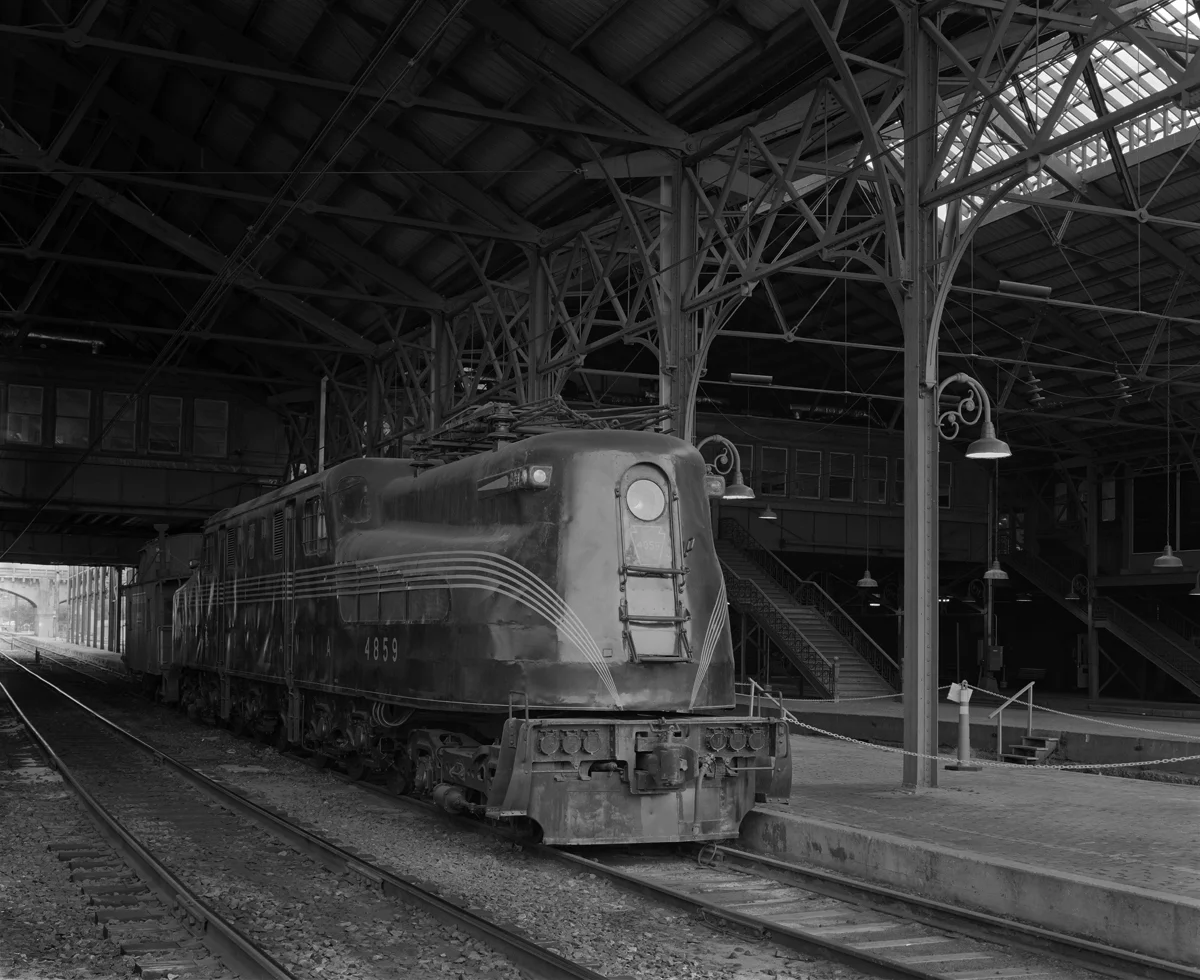

Situated on the former #5 Station track, PRR class GG-1# #4859 resides as part of a permanent display owned and maintained by the Harrisburg Chapter of the National Railway Historical Society, also accompanied by a class N6b PRR Cabin Car (caboose to non-PRR people). The 4859 is of particular significance to Harrisburg as it hauled the first scheduled electric powered passenger train into the station in 1938. The locomotive was part of a fleet of 140 locomotives built by both the PRR in Altoona and General Electric, the ubiquitous G,  was the workhorse of both the limiteds, regional and local passenger/ mail trains as well as freight on the PRR. The last operational  GG-1 ran in October of 1983 and 16 survive around the US as static displays.

Situated on the former #5 Station track, PRR class GG-1# #4859 resides as part of a permanent display owned and maintained by the Harrisburg Chapter of the National Railway Historical Society, also accompanied by a class N6b PRR Cabin Car (caboose to non-PRR people). The 4859 is of particular significance to Harrisburg as it hauled the first scheduled electric powered passenger train into the station in 1938. The locomotive was part of a fleet of 140 locomotives built by both the PRR in Altoona and General Electric, the ubiquitous G,  was the workhorse of both the limiteds, regional and local passenger/ mail trains as well as freight on the PRR. The last operational  GG-1 ran in October of 1983 and 16 survive around the US as static displays.

Mainline: Huntingdon Pennsylvania

The Huntingdon County courthouse tower is visible from the mainline on the sweeping curve entering from the east. Note the access road along the right of way which used to be the alignment of tracks 3 and 4 the former westward freight and passenger tracks respectively.

The Huntingdon County courthouse tower is visible from the mainline on the sweeping curve entering from the east. Note the access road along the right of way which used to be the alignment of tracks 3 and 4 the former westward freight and passenger tracks respectively.

Situated roughly 98 miles west of Harrisburg, Pennsylvania the Borough of Huntingdon, Pennsylvania sits along the beautiful Juniata River and the former Pennsylvania Railroad mainline. A county seat for it’s namesake Huntingdon County, the town was situated among rich agricultural areas, healthy deposits of iron, coal and clay, and hosted manufacturing including stationary, furniture, lumber and machinery. Originally laid out by Provost of the University of Pennsylvania, Rev. William Smith in 1777 the town was dedicated as the county seat in 1789 and incorporated in 1796. The Borough was once a port on the Mainline of Public Works, and later the junction of the PRR and the Huntingdon and Broad Top Mountain Railroad and Coal Company. Today the town is better known for its quaint layout, beautiful landscape and Juniata College which plays host to approximately 1500 students.

Entering from the east the relocated mainline of the late 1890s runs along the former Public Works Canal alignment. Here at the mouth of Standing Stone Creek we are standing below the "new" bridge looking north toward the remains of the original alignment and stone arch bridge that runs parallel to Penn Street.

Entering from the east the relocated mainline of the late 1890s runs along the former Public Works Canal alignment. Here at the mouth of Standing Stone Creek we are standing below the "new" bridge looking north toward the remains of the original alignment and stone arch bridge that runs parallel to Penn Street.

The Pennsylvania Railroad gained its presence in the Borough in June of 1850 with the completion of a line from Harrisburg, originally entering town along Allegheny Street. Modernization and relocation of the mainline later took place in several stages; first in 1891 and then 1894-1900 constructing the standard four track system, using the original Mainline of Public Works canal as a new right of way. The project eliminated several curves, grades, and street crossings while providing the citizens of Huntingdon connections with points east and west.

The 1872 Huntingdon train station is an Italianate style brick building. Detail of the (post 1890's) trackside elevation, while the traditional PRR herringbone brick pavers undergo restoration in the Spring of 2011  .

The 1872 Huntingdon train station is an Italianate style brick building. Detail of the (post 1890's) trackside elevation, while the traditional PRR herringbone brick pavers undergo restoration in the Spring of 2011.

PRR Hunt tower has been inactive for some time but remains standing. It was operated for a short time as a museum but now houses city offices.

PRR Hunt tower has been inactive for some time but remains standing. It was operated for a short time as a museum but now houses city offices.

Built during the second phase of the modernization Hunt Interlocking, a brick and frame structure housed a Union Switch and Signal machine to control a revised interlocking and interchange with the Huntingdon and Broad Top Mountain Railroad and Coal Company (Reporting marks HBTM). The HBTM was a coal hauler chartered in the 1850′s to tap the rich semi-bituminous coal deposits and provide shippers in the Cumberland, Maryland area providing an alternative to the B&O’s monopoly on train service. Over time the railroad suffered major setbacks including the diversion of traffic off the line by the PRR to its own line between Bedford and Cumberland which led to eventual bankruptcy in the early 1950s.

The Huntingdon train station provided riders a cross platform transfer to HBTM trains which ceased operation in November of 1953. Little is left of the interchange and station tracks except for an overgrown branch diverging just west of the interlocking plant through Portstown Park, crossing on a deck girder bridge over the Juniata and running a short distance along State Road 3035. In addition to the interchange and passenger facilities, the PRR maintained a freight station and mainline icing facility west of the station area for trains of refrigerated meats and produce prior to mechanical refrigeration.



Today, while the mainline has been reduced to two tracks, the railroad is still very busy, though no interchange takes place with the HBTM, intermodal, merchandise and mineral traffic rolls though at speed along a mainline refined in the late 1890′s to efficiently expedite traffic to points east and west. The Huntingdon County Chamber of Commerce has taken residence in former Hunt Tower, and the landmark 1872 train station has been renovated and is being used for commercial space.

From the Mainline...

As most of you have seen, this blog centers around all things Pennsylvania Railroad for the most part. Even though the Railroad is what brought me to create this work, and using the blog to further it with research about location specific notes, history, etc, the landscape itself along the former PRR (and all other railroads for that matter) is an open book for interpreting how the railroad helped develop our Country. Over time, the relationship between the community and the railroads has changed, industry has gone away and the visual clues are left behind for young people that care, to piece together what once was. As a photographer, my goal to is to consider the "big picture" looking at the whole package and where the railroad fits in, hence the title, "From the Mainline". Its sort of a cultural/ historical/ industrial archeology project that is brought together with a camera.

My inspiration came from many photographers including William H Rau, Walker Evans, George Tice, David Plowden, Frank Gohlke, and William Clift to tip the iceberg, but the real drive is simple, a love for the railroad and history. Interestingly enough when I am fortunate enough to travel for this project, I have seen places and things that already have vanished with little to no recognition. I suppose its a double sided sense of loss that preservationists feel at the loss of a landmark or what most railfans feel when their favorite railroad succumbs to merger, or how O Winston Link felt when the last fire was dropped on a N&W steam locomotive, but like some I am driven to photograph at exhaustion the places and things that tie back to the past, if for nothing else, to satisfy my only personal curiosity.

Former 1911 Lincoln High school of Tyrone Pennsylvania,  Fall of 2008. Made just a few days before its complete demise. The gloomy fog is fitting for this image of what remained of the beautiful relic.

Former 1911 Lincoln High school of Tyrone Pennsylvania,  Fall of 2008. Made just a few days before its complete demise. The gloomy fog is fitting for this image of what remained of the beautiful relic.

Picture 7

Take a case in point, the Lincoln School building in Tyrone PA, built in 1911 as the new Senior High, later expanded with a Junior High wing in 1929, and then becoming the Lincoln Elementary School with the construction of a new Central High School in 1962. This building continued to serve that purpose until construction of a new facility in 1999.Eventually sold to S&A Homes, the building was slated for removal. Here is where I come in... I happened to be in the Tyrone - Huntingdon area for a trip to photograph in September of 2008, my first to the Tyrone area. While driving aimlessly as I normally do, this site caught my eye. We scoped out the location, the light was all wrong, so it was deemed necessary to come back the next morning. So we did, arriving at some ungodly hour with heavy fog, and there it stood, like a Greek or Roman ruin. A flat bed trailer presented itself for an elevated view, the negative was made, and most likely the following Monday the pillars came down. That is why I do this, every image is important, and if you are serious every one needs to count!



For more perspective on the historic town of Tyrone Pennsylvania please visit http://www.tyronehistory.org

Industry Along The Line

Former Milling Complex of the Wheatena Company, ConAgra and finally Homestat Farms Ltd located off Second Street in Highspire Pennsylvania. The facility straddles Jury St, in this view looking West. To the right (North) is the milling buildings and offices, the left (South) are the storage silos. The dwellings in the background are typical of the area, resembling company homes from the nearby former Bethlehem Steel Steelton Plant. If one looks carefully there is a former Chessie Covered hopper tucked away to the left of the grade crossing in the center foreground.

Former Milling Complex of the Wheatena Company, ConAgra and finally Homestat Farms Ltd located off Second Street in Highspire Pennsylvania. The facility straddles Jury St, in this view looking West. To the right (North) is the milling buildings and offices, the left (South) are the storage silos. The dwellings in the background are typical of the area, resembling company homes from the nearby former Bethlehem Steel Steelton Plant. If one looks carefully there is a former Chessie Covered hopper tucked away to the left of the grade crossing in the center foreground.

Picture 6

While most imagine massive industry along the former PRR mainline, there was significant carload business scattered along the system, whether accessed by running tracks along the main, branch lines, or industrial tracks, these small businesses are something that the Company relied on to generate revenue. Take this Milling Complex for example, we are located on what the 1945 edition of a PRR CT1000 refers to as the the Wheatena Corp. Number 1 and#2 sidings on the Old Line in Highspire Pennsylvania at milepost 186. The Wheatena Corporation, dates back to 1879, when a New York City baker began roasting whole wheat and packaging it as a cereal called Wheatena. While the product was manufactured at a Modern plant in Rahway NJ through the better half of the 20th Century, the raw wheat came from this particular location. By the 1960's, The Ulhman Company's subsidiary, Standard Milling Company purchased Whetena and the Highspire Flour Mill, moving the cereal manufacturing to the Highspire Plant almost immediately in October of 1967. Production continued into the 21st Century under later lessees and owners International Home Foods, ConAgra,  and finally, William Stadtlander's Homestat Farm Limited who currently owns the Wheatena royalties and product line.  As of the purchase in 2001, Wheatena products were still manufactured in Highspire and was still served by Norfolk Southern Corp, however during a recent visit, the mill looks inactive, but it is unclear for how long the facility has been shut down.

PRR Bridge 147, Mt Union Pennsylvania

Upstream side of Bridge 147 on the Former PRR Middle Division, completed in 1906.  Note the center pier (center of the image), expanded to emphasize the center of the bridge, a nod to traditional   stone arch bridge building aesthetics. To the immediate right the railroad crosses Croghan Pike, Route 522 and enters town to the North of the sprawling interchange complex of the East broad Top Railroad.

Upstream side of Bridge 147 on the Former PRR Middle Division, completed in 1906.  Note the center pier (center of the image), expanded to emphasize the center of the bridge, a nod to traditional stone arch bridge building aesthetics. To the immediate right the railroad crosses Croghan Pike, Route 522 and enters town to the North of the sprawling interchange complex of the East broad Top Railroad.

Built under the supervision of Chief Engineer Alexander C Shand, Middle Division Bridge Number 147 was completed in 1906. In a tradition started by PRR Chief Engineer William H Brown, with his bridge in Johstown PA spanning the Conemaugh River, the bridge was built of cut stone because of its low maintenance and increased durability over early steel and iron structures. The bridge spanning the Juniata River on the Southeast Side of Mt Union consists of six segmental stone arch spans each 100' in length and 58' wide. Because the bridge consists of an even number of spans, the Center Pier was expanded by 8' to create a visible center to the bridge, a nod to traditional bridge building techniques in which an odd number of spans was utilized to define the center of the structure.  Bridge number 147 brings the former four track main of the PRR into Mt. Union on an elevated fill, avoiding grade crossings through the once bustling interchange town with the East Broad Top Railroad. Today, the bridge serves the Norfolk Southern Corporation's busy two track Pittsburgh Line, though later altered with reinforced concrete casing, the bridge remains another great example of PRR's tradition of Cut Stone masonry bridges that were built to last.

Rockville Bridge

Susquehanna River and Rockville Bridge, looking East. Marysville Pennsylvania

Susquehanna River and Rockville Bridge, looking East. Marysville Pennsylvania

Teller_Rockville

Opened in 1902 under the direction of Chief Engineer William H Brown, the Rockville Bridge is the longest masonry arch railroad viaduct in the world. Built by the Pennsylvania Railroad, the 3820' long span is made of 48 seventy foot spans over the Susquehanna River, connecting the PRR Harrisburg Terminal and Buffalo Line with the Mainline West, and connection to the sprawling Enola Yard complex through a complex junction in Marysville PA. This area of the PRR was the Eastern Hub of lines coming from New York, Philadelphia, Baltimore, Buffalo, and Hagerstown, creating a westward funnel, concentrating mainline traffic to Pittsburgh and points west.

While the terminal deserves more in depth coverage, the Rockville Bridge and supporting approaches particularly on the West Bank in Marysville, represent the forward thinking of PRR engineers in designing and managing traffic flow of passenger, thru freight and terminating/ originating freight without interference and delay.

Today this bridge faithfully serves the Norfolk Southern Corporation seeing heavy freight traffic and a round trip of daily Amtrak NYC-Pittsburgh service trains. While the track layout has been altered over the years, changing from the original 4 track system, to three, to the current two track layout, the bridge's appearance is still just as impressive as Griff Teller's "1949 Main Lines-Passenger and Freight" commissioned  for PRR advertising purposes. Located on the West side, in Marysville, is a personal favorite location, to view the traffic crossing the mile wide river. Like many, I never seem to get enough of this impressive structure, another historic piece of the Standard Railroad of the World!

PRR and the Greater Johnstown Area

Part 6: Cambria City and the Western Suburbs: Leaving Johnstown proper, the Mainline of the PRR crosses another site associated with the history of the Great Flood of 1889. A seven span stone arch bridge over the Conemaugh River, officially know as Bridge 222 built under the guidance of Chief Engineer William Brown in 1888, was the sight of tragedy as flood waters washed across the valley, trapping over 500 people and debris, eventually catching fire and killing all but 80 in the blaze. While the structure survived the damage, over 2200 lives collectively were lost in what is still considered America’s worst natural disaster.

Later, in the history of this structure the PRR modernized the bridge reinforcing it in concrete on the South Side and expanding the bridge to accommodate the four track system the PRR was know for. Today, there is more plans for the bridge with the City planning its South Side re-facing to incorporate decorative lighting for night time illumination, tying in the Point Stadium, Inclined Plane, and Festival Park, adding another visual landmark to the Johnstown Discovery Network.

Eastward View of Bridge 222 from Brownstone Hill, note the reinforced concrete facade from the later expansion to a four track mainline system. This bridge continues to serve Norfolk Southern today and is planned to be restored/ refinished as an anchor for the Johnstown Discovery Network system.

Eastward View of Bridge 222 from Brownstone Hill, note the reinforced concrete facade from the later expansion to a four track mainline system. This bridge continues to serve Norfolk Southern today and is planned to be restored/ refinished as an anchor for the Johnstown Discovery Network system.

View of Brownstone Hill from the former Conemaugh and Black Lick rail yard on the North Side of the Conemaugh River. The mainline threads along the base of the mountain in the back lots of commercial and industrial buildings along Route 56 from left to right in the photo.

View of Brownstone Hill from the former Conemaugh and Black Lick rail yard on the North Side of the Conemaugh River. The mainline threads along the base of the mountain in the back lots of commercial and industrial buildings along Route 56 from left to right in the photo.

As the Mainline again follows the Conemaugh River westward, it hugs the base of Brownstone Hill in the back lots of Cambria City. Opposite, on the North Side of the river, the C&BL takes a wondering path, servicing the area know as the Lower Works, the original Cambria Iron Works that established Steel Making in area circa 1852. While the mainline is pretty straight forward, the C&BL runs through ruins of its former self. In the neighborhood of Minersville, vacant yard trackage and a quiet engine facility, far to large to be justified for the sometimes monthly operations of today stands testament to a company railroad that once thrived on terminal switching, moving in raw materials to the mill and finished product to the PRR and B&O.

L  ooking South East from 4th Street in Cambria City's neighborhood on the North side of the Conemaugh River, we see the Conemaugh and Black Lick Main running along the concrete flood walls that now keep the flood prone river in check. The siding diverting to the left appears to be a leg of a Wye that led to a branch extending into the hillside for slag dumping and steel waste, most likely coming from the nearby Cambria Works just out of view in the top right of this image.

Looking South East from 4th Street in Cambria City's neighborhood on the North side of the Conemaugh River, we see the Conemaugh and Black Lick Main running along the concrete flood walls that now keep the flood prone river in check. The siding diverting to the left appears to be a leg of a Wye that led to a branch extending into the hillside for slag dumping and steel waste, most likely coming from the nearby Cambria Works just out of view in the top right of this image.

Further West, past the engine house the C&BL once again crosses the Conemaugh one last time on the Ten Acre Bridge to access the Wire and Rod Works in the Morrelleville Section one of the last facilities still doing what it was intended to do by Bethlehem Steel. From the North Side, a spur continues on from the locomotive shops only to be lost in the weeds along Cramer Pike.

On the South Side of the River we make one more significant observation on the PRR main. At MP 277.3 stood SG tower in the Western Suburbs of town. Here interchange was conducted with the C&BL. More significantly on the mainline, tracks 1, 2, and 3 (4 split off remotely 3 miles West) divided along the South Bank, while track 5 and 6 ran along the North to Conpitt Junction some 13 miles further West. Track 5 and 6 known as the Sang Hollow Extension, was built between 1881-83 to handle heavier freight traffic through the area, eventually connecting back with the Mainline and elusive Conemaugh Line, a low grade back road into Pittsburgh, at JD Interlocking just west of New Florence PA.

Excerpt from a 1951 PRR Pittsburgh Division, Central Region track chart, showing the Mainline from SG located in the Western Suburbs of Johnstown to Conpitt Junction, 14 miles to the West, which was the end of the Low Grade Sang Hollow Branch and beginning of the Conemaugh Main, a slower route which provided an easier profile for heavy drags and mineral trains into Pittsburgh. The chart was provided from the  PRR Multmodalways Online Archive

Excerpt from a 1951 PRR Pittsburgh Division, Central Region track chart, showing the Mainline from SG located in the Western Suburbs of Johnstown to Conpitt Junction, 14 miles to the West, which was the end of the Low Grade Sang Hollow Branch and beginning of the Conemaugh Main, a slower route which provided an easier profile for heavy drags and mineral trains into Pittsburgh. The chart was provided from the PRR Multmodalways Online Archive

Just west of SG tower near milepost 278 the Sang Hollow Extension crosses the Conemaugh on a ballasted deck bridge at the area know as Dornock Point. Along the ridge in the rear of this image, the mainline continues westward along the southern bank of the Conemaugh River.

Just west of SG tower near milepost 278 the Sang Hollow Extension crosses the Conemaugh on a ballasted deck bridge at the area know as Dornock Point. Along the ridge in the rear of this image, the mainline continues westward along the southern bank of the Conemaugh River.

This concludes our tour of the Greater Johnstown Area, check back soon for more in depth posts on other towns related to the Pennsylvania Railroad. For more imagery from my Mainline Project please visit my website.

For more information on the PRR and the neighboring landscape check out some of the links below. As a side note, I would like to thank the many deicated people that spend so much time and energy preserving, interpreting, and sharing the past, present, and future of our Railroad, Social and Industrial Heritage in this Country! Please feel free to send me more links and I will be sure to add them!

Altoona Memorial Railroaders Museum

American Memory Project: Library of Congress

Center for Railroad Photography and Art

The Hagley Library

Johnstown Discovery Network

National Railway Historical Society

Pennsylvania Historical and Museum Commission

Pennsylvania Railroad Technical and Historical Society

Pennsylvania State Railroad Museum

PRR and the Greater Johnstown Area

Part Five: Johnstown Proper: Although Johnstown has lost a good deal of manufacturing the City still has a lot to offer including several great museums, walking tours, the historic Inclined Plane to Westmont, Point Park and a Minor League Baseball Stadium among other key features that are part of the Johnstown Area Heritage Association. Below are several images made over the past five years of the City Center, exploring both the City's relationship with the railroads as well as the landscape and architecture in general.

View looking Northeast of Franklin Street Bridge across the Stoneycreek River from Somerset Street. Building on the far side is the Conrad Building which dates from 1900  .

View looking Northeast of Franklin Street Bridge across the Stoneycreek River from Somerset Street. Building on the far side is the Conrad Building which dates from 1900.

View of St. Mark’s Evangelical Lutheran Church, demolished some time after this visit in 2007, for the Northrop Grumman Technology Park that now occupies the site  .

View of St. Mark’s Evangelical Lutheran Church, demolished some time after this visit in 2007, for the Northrop Grumman Technology Park that now occupies the site.

View from Flood Wall, Stoney Creek River and Franklin St Bridge. The church to the right is the Trinity United Methodist Church.

View from Flood Wall, Stoney Creek River and Franklin St Bridge. The church to the right is the Trinity United Methodist Church.

Support tracks and an interchange yard that runs parallel to Washington St fans out behind the Gautier Works in town, illustrating the Work’s dependency on the railroad to transport both raw and finished materials from just one of the many divisions of the Bethlehem Works.

Support tracks and an interchange yard that runs parallel to Washington St fans out behind the Gautier Works in town, illustrating the Work’s dependency on the railroad to transport both raw and finished materials from just one of the many divisions of the Bethlehem Works.

Leaving the Gautier Works complex behind the C&BL crosses the Conemaugh River on a impressive through truss span, and ducks under the PRR mainline just East of the Johnstown train station.

Leaving the Gautier Works complex behind the C&BL crosses the Conemaugh River on a impressive through truss span, and ducks under the PRR mainline just East of the Johnstown train station.

Just past the C&BL underpass is the train station the PRR built in 1916 by famous Architect Kenneth M. Murchison of New York City. Murchison is also known for his historic designs of the surviving Delaware and Lackawanna Stations in Hoboken NJ and Scranton PA as well as Baltimore’s Union Station (later known as Baltimore Penn Station for the dominate service of the PRR).  The station, just recently donated to the Johnstown Area Heritage Association is intended to become a cornerstone to the downtown tourism development and provides a beautiful entry to a City on the verge of rebirth as an Industrial and Cultural Heritage Center in Western PA.

Just past the C&BL underpass is the train station the PRR built in 1916 by famous Architect Kenneth M. Murchison of New York City. Murchison is also known for his historic designs of the surviving Delaware and Lackawanna Stations in Hoboken NJ and Scranton PA as well as Baltimore’s Union Station (later known as Baltimore Penn Station for the dominate service of the PRR).  The station, just recently donated to the Johnstown Area Heritage Association is intended to become a cornerstone to the downtown tourism development and provides a beautiful entry to a City on the verge of rebirth as an Industrial and Cultural Heritage Center in Western PA.

PRR and the Greater Johnstown Area

Part Four: Johnstown's Old Conemaugh Section: Moving into Johnstown from Franklin we enter a historic neighborhood that at one time was served by several railroads. The Baltimore and Ohio’s Somerset & Cambria Branch was a line incorporated in 1879, to tap local coal resources and serve the Bethlehem works. Though not nearly the operation of the PRR, the B&O nonetheless maintained a presence in town. Coming up from the South along the Stonycreek River, the line comes into the Old Conemaugh Section of town and forks, moving West toward a connection with the C&BL along Washington Street, and East along the sprawling Gautier Works between Clinton and Short Street toward the former Station area and Freight house that still stands today.

View looking West on Short Street with former S&C Freight House on the right and the Cathedral of Saint John Gualbert standing prominently in the center.

View looking West on Short Street with former S&C Freight House on the right and the Cathedral of Saint John Gualbert standing prominently in the center.

Three very unique houses along Railroad Street in the Conemaugh Section of Johnstown.

Three very unique houses along Railroad Street in the Conemaugh Section of Johnstown.

Two Churches are evident in this view from a lot bordering the Former S&C Branch looking Northwest. The Steeple in the foreground belongs to the 1891 Zion Lutheran Church the two further towers are part of the Cathedral of Saint John Gualbert built in 1895.

Two Churches are evident in this view from a lot bordering the Former S&C Branch looking Northwest. The Steeple in the foreground belongs to the 1891 Zion Lutheran Church the two further towers are part of the Cathedral of Saint John Gualbert built in 1895.

View North from Matthew Street with Clinton Street side of the Gautier Works.

View North from Matthew Street with Clinton Street side of the Gautier Works.

Rear view of the 1906 Central Catholic School, part of St. Joseph's German Catholic Church on Railroad Ave. This view is from Short Street looking south

Rear view of the 1906 Central Catholic School, part of St. Joseph's German Catholic Church on Railroad Ave. This view is from Short Street looking south

View from Singer Street looking Northwest. Note the Gautier Works behind the buildings on Railroad Street at the bottom of the hill.

View from Singer Street looking Northwest. Note the Gautier Works behind the buildings on Railroad Street at the bottom of the hill.

As mentioned the B&O and C&BL served the Gautier Works located along Clinton Street, accessing the sprawling facility from the North Side. The Gautier Works produced wire fencing, plows and other steel products for the agriculture industry. The size of this facility is quite evident from high views such as the one afforded from the surrounding hill sides.

View of trackage along Washington Street looking Northwest. Note the Gautier Works to the right. From  from the track layout this appeared to be an interchange area with B&O S&C Branch and the C&BL.

View of trackage along Washington Street looking Northwest. Note the Gautier Works to the right. From  from the track layout this appeared to be an interchange area with B&O S&C Branch and the C&BL.

PRR and the Greater Johnstown Area

Part Three: Franklin

Franklin is directly across from East Conemaugh, spread in two small neighborhoods, the eastern section is stacked on the hillside overlooking the former mill and river valley, once a home to many steel workers and the actual “hot side” of the Johnstown Works.

View of the eastern section of Franklin from East Conemaugh.   Former PRR Mainline and Woodvale Yard in foreground. Note the Strank Memorial Bridge and old Chessie boxcar that appeared in the East Conemaugh Post last time from the opposide side of the Conemaugh River.

View of the eastern section of Franklin from East Conemaugh. Former PRR Mainline and Woodvale Yard in foreground. Note the Strank Memorial Bridge and old Chessie boxcar that appeared in the East Conemaugh Post last time from the opposide side of the Conemaugh River.

The former blast furnace and open hearth mills of the Bethlehem Johnstown Works from the Locust St. Bridge in Franklin. Note the C&BL lead that used to provide rail service into the mill.

The former blast furnace and open hearth mills of the Bethlehem Johnstown Works from the Locust St. Bridge in Franklin. Note the C&BL lead that used to provide rail service into the mill.

Further West, down Rt 271, heading South West, you cross the Conemaugh River and enter the western end of town, including a small area of housing and churches that also was home to the Rail Car Division later spun off to FreightCar America Works, which was to become one of the last remaining steel related manufacturing facilities of the former Bethlehem Johnstown Works.

Car Wash and St. John the Baptist Church from Jasper Alley.

Car Wash and St. John the Baptist Church from Jasper Alley.

Various freight cars waiting for work at the Franklin Railcar America facility   .

Various freight cars waiting for work at the Franklin Railcar America facility.

In 2008 the works closed its doors, taking much need jobs and tax revenue from this struggling little town.  As of the Fall of 2010, the facility was being leveled, ending hopes of manufacturing jobs that were once plentiful in a small town with big industry.

Stored tank cars awaiting reconditioning. The weedy yard and empty tracks of the C&BL interchange yard speak of the impending shut down of Railcar America facility which happened in 2008.

Stored tank cars awaiting reconditioning. The weedy yard and empty tracks of the C&BL interchange yard speak of the impending shut down of Railcar America facility which happened in 2008.

PRR and the Greater Johnstown Area

Part 2: East Conemaugh

The railroad maintained facilities here including Woodvale Yard, access to the Johnstown branch and interchange with the Conemaugh and Black Lick RR, the Baltimore and Ohio Railway, and a engine terminal that supported both local operations and helper assignments that assisted Eastbounds on the ascent of the Allegheny escarpment.

View looking toward East Conemaugh. Taken from the Town of Franklin, Conemaugh and Black Lick trackage is in the foreground, the River, and finally the PRR and East Conemaugh nestled along the distant ridge. The bridge to the right is the Strank Memorial Bridge which is soon to be replaced.

View looking toward East Conemaugh. Taken from the Town of Franklin, Conemaugh and Black Lick trackage is in the foreground, the River, and finally the PRR and East Conemaugh nestled along the distant ridge. The bridge to the right is the Strank Memorial Bridge which is soon to be replaced.

The town itself, like many other smaller Pennsylvania towns, is a unique assortment of original buildings, signage, and character, void of the congestion, shopping malls, and the box store epidemic of suburban sprawl.

Small businesses flank quiet side streets that run parallel to the former PRR Mainline and Woodvale Terminal. This is a view from Davis Street between Cherry and East Railroad St.

Small businesses flank quiet side streets that run parallel to the former PRR Mainline and Woodvale Terminal. This is a view from Davis Street between Cherry and East Railroad St.

The town’s design speaks of its relationship to the railroad, how the commercial center borders just blocks off the railroad tracks, becoming more residential as you progress further up the hill. Hand painted signage, beautiful old examples of small town architecture and community churches dot the landscape.

Former First National Bank Building, 300 Block of Greeve St.

Former First National Bank Building, 300 Block of Greeve St.

Church of the Living God, Cambria Street, with residences on neighboring Heritage St. to the right.

Church of the Living God, Cambria Street, with residences on neighboring Heritage St. to the right.

PRR: A Johnstown View

Johnstown, Pennsylvania is a town dear to me, through my travels photographing the Mainline Series, the location was key to other areas that lacked amenities, central to the railroad's Western ascent of the Alleghenies, and home to some amazing people, landscapes, architecture, and history. Beginning in the 1850’s with Cambria Iron works, the area flourished, with the steel works growing and changing, the facilities eventually became part of the Bethlehem Steel Company. In early times, tragedy in the way of the Great Flood of 1889 struck, taking over an estimated 2200 lives, with almost 1000 more missing. Subsequent floods in 1936 and 1972 necessitated additional flood walls and engineered river channels to prevent the loss of life and property that devastated Johnstown at an early age.

Later, in the 20th Century tragedy would come in other ways, mainly the collapse of domestic steel production. In the early 1970’s employment was holding steady at approximately 11,800 employees. Ten years later compounded by environmental regulations, a location that couldn’t compete with the inter-modal transport Pittsburgh and Burns Harbor was privileged to, and damage incurred from the Flood of 1977; employment plummeted to 2100 workers in 1982. As time progressed some facilities have been re-purposed, others survived only later to be shuttered. While much of the Steel Production is gone the City has embraced re-invention moving forward into the 21st Century.

Cover_grid

Over the three plus years traveling the Mainline from Harrisburg to Pittsburgh I stayed in Johnstown many times, through out the various seasons. It allowed me time to become aquatinted with the area and photograph in the surrounding landscape more than many other places. While Altoona, Pittsburgh, and the Harrisburg areas have plenty to offer, for me, Johnstown is a particularly special place.

Though the steel industry at large has been absent from Johnstown for quite some time, the resilient people have moved on, adapted and are moving forward to bring more business and tourism to the area. Small boroughs, beautiful and unique architecture and a sense of small town life are things that really attracted me to the area, not to mention the history and railroad!

Over the next two months we will examine the region and its relationship to the former PRR Mainline moving from East to West, establishing a larger view of not just the trains, but the greater landscape that thrived around it.

Tyrone Pennsylvania

Just West of the of the former PRR Tyrone train station and current Amshack the Mainline made a sharp turn South heading down the Valley to the well know City of Altoona. This simple study looks across Spruce St and the Mainline at dusk in September of 2008. To the right is the yard trackage and connection to the Bald Eagle Branch, a line that provided a alternative route to the Mainline and access to the Upper Susquehanna Valley.

Just West of the of the former PRR Tyrone train station and current Amshack the Mainline made a sharp turn South heading down the Valley to the well know City of Altoona. This simple study looks across Spruce St and the Mainline at dusk in September of 2008. To the right is the yard trackage and connection to the Bald Eagle Branch, a line that provided a alternative route to the Mainline and access to the Upper Susquehanna Valley.

Hello again! I have been absent for a while but for good reasons! Stay tuned for many more updates and a series of posts about the great City of Johnstown, a place that I spent a great deal of time photographing and visiting during the Mainline Project! The series will touch on history and the landscape in which Steel mills and Steel rails intertwined with the Conemaugh River, defining the city's industrial status though a great deal of the 20th Century. Many other exciting projects are on the horizon, making 2011 a much more productive photography year! I will talk more about that soon, but for now enjoy this post on one of my favorite images from the Tyrone area! I will actually be traveling back to some of these areas this month and hope to share more as they become available! Enjoy!

Mike Froio

McKeesport Connecting Railroad

Interior view, heavy repair and machine shop of the former McKeesport Connecting Railroad.

Interior view, heavy repair and machine shop of the former McKeesport Connecting Railroad.

MCKCon_RR

Not far off the beaten path of the PRR, in the steel producing areas around Pittsburgh along the Monongahela River Valley, was a small industrial railroad that was incorporated in 1889 to build and  service the McKeesport - Port Perry line that was held under capitol stock by the National Tube Works of New Jersey. The railroad was a terminal company who's primary role was to support operations of its owner's mill and make outside connections to the B&O, Pittsburgh and Lake Erie, Union Railroad, Bessemer and Lake Erie and PRR. Transferred to US steel in 1942 and later, outside contractor Transtar Inc, the company became part of the larger Union Railroad conglomerate that still serves predecessor Camp Hill Corporation making pipe with materials supplied from the US Steel Irvin and Gary works for both the water and gas industry. In addition the Union Railroad still serves the region's remaining coke production facilities in Clairton, the sprawling Edgar Thompson Works in Braddock, and finishing mills in Irvin with interchange to all major class one railroads in the region.While the Union Railroad has consolidated maintenance facilities to the Monroeville area shop complex, the original 1906 McKeesport Connecting RR shop and roundhouse still stand in the company's namesake town, open to the elements and quietly rusting away, another relic of steam era architecture that could be lost in time.

Detail of equipment bins in the former roundhouse area which appears to last be used for car repair, tool, and parts storage.

Detail of equipment bins in the former roundhouse area which appears to last be used for car repair, tool, and parts storage.

Penn Coach Yard Power House: Lost Facilities of the PRR

View of powerhouse and neighboring coach yard facilities prior to demolition.

View of powerhouse and neighboring coach yard facilities prior to demolition.

View of powerhouse and neighboring coach yard facilities prior to demolition. On November 15th, 2009, the 425 foot tall chimney of the Penn Coach Yard Power Plant, built for the former Pennsylvania Railroad, was demolished after standing prominently on the West Bank of the Schuylkill River since the late 1920's. It was part of a power plant constructed to provide steam and power for the massive coach yard and roundhouse complex that was part of the massive Philadelphia Improvements Project taken on by the Railroad and City Planners to redevelop Center City,  phasing out Broad Street Station and introducing Pennsylvania Station for through passenger service connections.

Designed by Graham, Anderson, Probst and White and constructed in 1929, the facility was built to accompany Pennsylvania Station which was also built by the same firm. The structure was similar in design without some of the more elaborate details that the beautiful station still shows today.

The power plant was used into the 1960's until decommissioned and for many years, was left neglected and vacant as the building changed hands from the PRR to the ill fated Penn Central Merger, development of Amtrak and later South Eastern Pennsylvania Transportation Authority (Septa).

Several discussions surfaced over the years to redevelop the facility as a condominium and mixed residential district, keeping the historic building as a centerpiece of the new project. Unfortunately, after many ideas and proposals, it was decided to bring down the building for what Amtrak considered a security risk among other concerns. Sadly what will take the building's place will be a parking and storage facility for the local Amtrak maintenance of way base, located between Septa's Powelton Ave Coach Yard, the elevated freight bypass know as the Highline, and Amtrak's Penn Coach Yards.

In the early hours of Sunday November the 15th, many came out to watch the massive stack be "dropped" to the south onto the neighboring Pullman Commissary another historic structure that fell victim during this project. Over the following weeks the remaining power house was taken down with heavy equipment and a wrecking ball forever removing a piece of railroad and industrial history from Philadelphia's skyline!

In the company of former PRR Silverliner cars, we see the remaining moments of the unofficial "Drexel Shaft" as it drops to its final resting place.

In the company of former PRR Silverliner cars, we see the remaining moments of the unofficial "Drexel Shaft" as it drops to its final resting place.

Duncannon, Pennsylvania

Duncannon

Duncannon is a quiet little riverside town that sits just below the confluence of the Juniata and Susquehanna Rivers in Perry County Pennsylvania. Along the banks of the Susquehanna runs the Middle Division of the former Pennsylvania Railroad. Above, we see the view from Cumberland Street looking East toward the former Passenger Station on Water Street. The beautiful brick and wood design is similar to neighboring Marysville, and Newport stations both of which survive today.

Coatesville: Part 2

Coatesville_002

Following up from an image posted in November, here we are again in the steel city of Coatesville PA along the Mainline, this time looking across the tracks at the remains of the historic 1865 station house. From the Westbound side looking South, the remaining segment of the station canopy and more details of the battered station building are visible. Immediately to the West is the well know stone arch bridge over Brandywine Creek, an impressive structure built with the typical stone and craftsmanship seen all across the former Pennsy Mainline.

ALTO Tower

ALTO tower stands guard over the Western Limits of the interlocking and the junction of the Holidaysburg Branch that leaves the Main to the left.

ALTO tower stands guard over the Western Limits of the interlocking and the junction of the Holidaysburg Branch that leaves the Main to the left.

Looking west from the 17th Street Bridge, no less than four main tracks pass underneath you and in front of ALTO tower, the last remaining tower of 6 that originally guided trains through the busy terminal area of Altoona PA. Built in 1910, the quaint but weathered structure stands equipped with a typical Union Switch and Signal Electro-pneumatic interlocking plant. Through consolidation over the years, the tower's territory was expanded with the addition of CTC machines to control traffic through SLOPE (West of Alto), ANTIS, HOMER, ROSE, AND WORKS (All East of ALTO).

In addition to the steady flow of traffic coming off Horseshoe Curve eastbound, heavy westbounds will stop for helpers here for the assist up the stiff grade to the summit of the Allegheny Mountains. While Altoona is not the Company town it was for the PRR, Norfolk Southern utilizes the Juniata Shops for heavy overhaul projects for both their equipment and contract work to other railroads. In addition the heritage and stories of the PRR live on at the Altoona Railroader's Memorial Museum, soon to be the home again to K4's 1361.

Pittsburgh Pennsylvania Station

View Looking East toward UF Interlocking from tracks 7 and 8, former Pittsburgh Pennsylvania Station.

View Looking East toward UF Interlocking from tracks 7 and 8, former Pittsburgh Pennsylvania Station.

Built by noted Chicago architect Daniel Burnham, and completed in 1903, Pittsburgh's Union Station served the PRR and several subsidiary lines, making it unique, as typical Union Stations served several roads. Later renamed Pennsylvania Station in 1912 to reflect specifically the Company it served, this Station was the Gateway to Pennsy "Lines West" including the Panhandle Line to St Louis and the Fort Wayne Division onward to Chicago. While the historic office tower and trademark rotunda has been saved, its importance as a long distance hub of train travel has dwindled. Currently, one through route to Chicago via Washington DC is available on the Capitol Limited and the station also serves as the Western terminus of the Pennsylvanian, which utilizes the former PRR Mainline from NYC to Pittsburgh via Philadelphia. Perhaps someday, with push for more high speed rail in this country, this terminal will once again look like it did circa 1940, with rail activity under the now mostly empty station shed.

Coatesville

View from the remaining canopy looking East toward Philadelphia at the Coatesville Train station, September 2010.

View from the remaining canopy looking East toward Philadelphia at the Coatesville Train station, September 2010.

Further West of the Junction of the Mainline and Philadelphia and Trenton Branch in Thorndale and East of the Junction of the Atglen and Susquehanna Branch, the Freight bypass to Enola Yard in Harrisburg, lays an Industrial town called Coatesville. Situated in the Brandywine Creek Valley, Coatesville, plays host to the former Lukens Steel Mill Complex, a "mini mill" facility that produces high quality plate and slab steel. While the mill is still active the town is very reminiscent of areas like Johnstown and Bethlehem, some neighborhoods in need of much attention. The station house, located at Third and Fleetwood Streets, is currently shuttered and vacant. The historic structure dates back from 1865, according to the City and has served a long career for the PRR and its predecessors. Currently, one or two sections of the Eastbound canopy still stand, and the Westbound Platform has a lone and battered bus shelter for passengers. While not all buildings have the opportunity to be saved or restored, this Station would certainly be a great candidate and much needed anchor for the surrounding neighborhood.
