Philadelphia Division: Rowenna - Marietta

Continuing East on the York Haven line from Shocks Mill Bridge, we encounter more history on the fabled low-grade project of Alexander Cassatt. The east bank of the Susquehanna River was host to two major modes of transportation by the mid 1800’s, the Public Works Canal and the Columbia Branch of the Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad. By the time plans came for the new low-grade the canals had been largely abandoned for some time, however the Columbia Branch became a vital link to the original Philadelphia and Columbia as well as the Columbia & Port Deposit Railroad providing connections to the mainline via Royalton. While designing the new low-grade the Columbia branch was the choice line to connect the Northern Central via the new Shocks Mills bridge, the old alignment would require revisions to fit the requirements of the new line. By the turn of the century Cassatt’s low-grade project would bring big changes to the local railroad scene. With the consolidation and construction of the new freight network many of the older track alignments were abandoned in favor of a separate right of way to avoid pedestrian and street traffic. Common to many locations on the PRR, these abandoned segments were either sold off or utilized as stub end tracks to serve industries still active near the town centers.

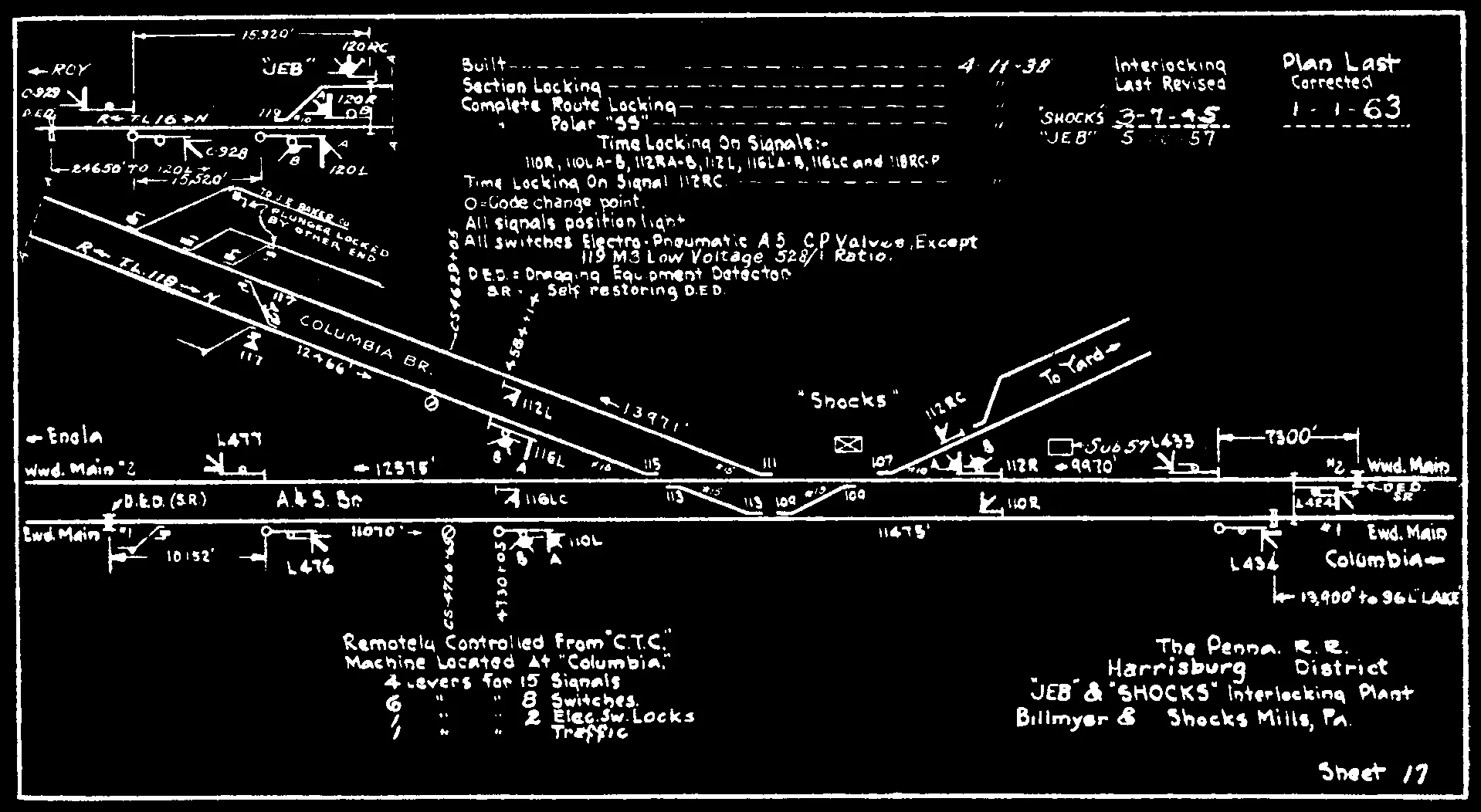

Interlocking plate of "Shocks" location of the junction of the former Harrisburg and Lancaster branch between Royalton and Columbia and the low-grade York Haven Line. Note the track diverting to the right of the interlocking point titled "to yard", this is the original alignment of the H&L Columbia Branch retained to serve several freight customers.     Plate collection of   The Broad Way  .

Interlocking plate of "Shocks" location of the junction of the former Harrisburg and Lancaster branch between Royalton and Columbia and the low-grade York Haven Line. Note the track diverting to the right of the interlocking point titled "to yard", this is the original alignment of the H&L Columbia Branch retained to serve several freight customers. Plate collection of The Broad Way.

In the village of Rowenna, just east of the Shocks Mill Bridge, a segment of the old Harrisburg and Lancaster drops off the embankment where the Royalton - Columbia branch and the York Haven line meet at an interlocking simply known as Shocks. This spur continued parallel to the mainline for several miles accessing agricultural industries and a military transfer depot constructed during World War II. Sill in service today, this branch serves the former Military installation, now an industrial park as well as a feed trans-load facility off Vinegar Ferry Road.

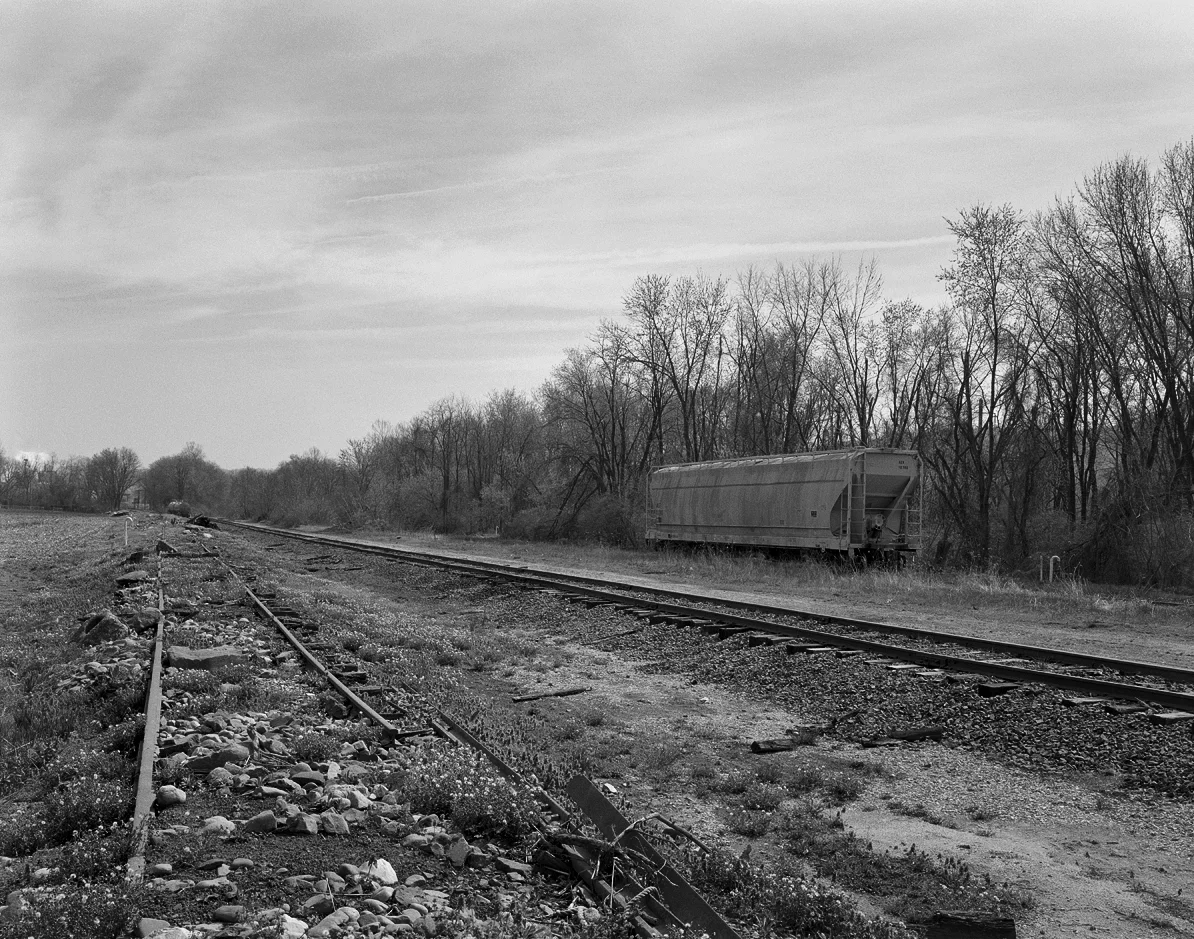

Remaining trackage from the old Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad's Royalton - Columbia Branch, now an industrial track retained to serve a few local customers. The active 1902 York Haven line alignment is out of view to the to right on an elevated fill to accommodate trains off the Shocks Mill Bridge  .

Remaining trackage from the old Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad's Royalton - Columbia Branch, now an industrial track retained to serve a few local customers. The active 1902 York Haven line alignment is out of view to the to right on an elevated fill to accommodate trains off the Shocks Mill Bridge.

Just a few miles further east we enter the Borough of Marietta. Established in 1812, Marietta once boasted many river, rail and canal dependent industries. On the south end of town remnants of the old Columbia Branch surface in an isolated area bound by Chiques Creek and Furnace Road. This area, which the creek and a local iron furnace are named after (albeit different spellings) derives from the Native American word Chiquesalunga, or crayfish. In different eras it has been spelled Chickies, Chikis and Chiques but all refer to this common meaning. The Chickies Furnace #1 opened in 1845 with production thriving until the late 1890’s closing due to better, more efficient facilities, most likely in nearby Steelton.

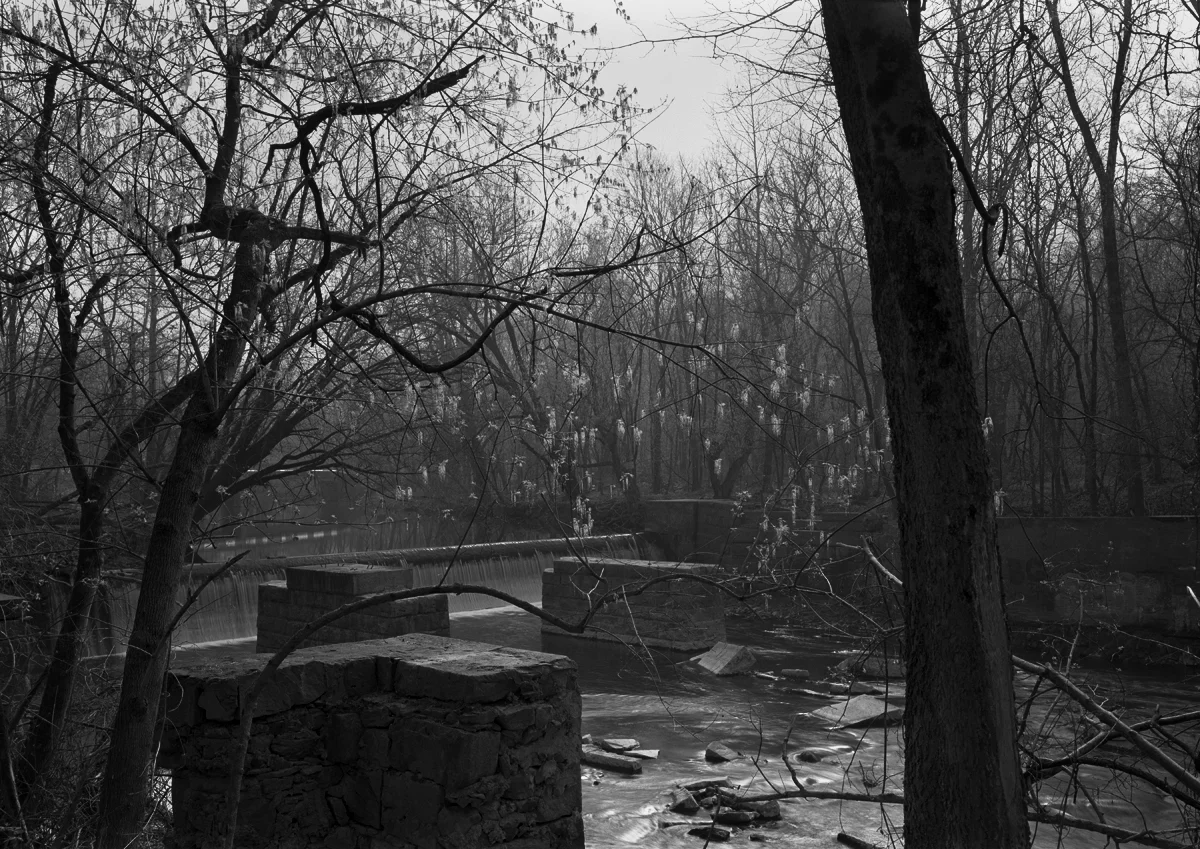

Remaining bridge piers of the former Columbia branch stand up-stream in Chiques Creek. In view is one of William H. Brown's typical stone arch bridges on the active York Have line. This area is located at the former site of the Chickies Furnace, an early site of iron production in the 1800's.

Remaining bridge piers of the former Columbia branch stand up-stream in Chiques Creek. In view is one of William H. Brown's typical stone arch bridges on the active York Have line. This area is located at the former site of the Chickies Furnace, an early site of iron production in the 1800's.

Among the foundations and rubble that remains of the former Chickies Furnace #1, the Columbia branch can be found along the old canal bed. You can spot telltale signs of PRR construction methods, the most immediate is the use of the ubiquitous 3 pipe railings on a bridge over a sluice between the canal and creek. Piers also remain from a deck bridge that carried the branch over the creek prior to the 1936 flood while the former roadbed of cinder ballast provides reference of where the line entered the area from the west. Just down stream on Chiques Creek, the York Haven line crosses the outlet to the Susquehanna on a W. H. Brown trademark 3 arch stone bridge well above high water. The history of when the Columbia branch was abandoned ties into not only the construction of the low-grade but also the great flood of 1936, subject of next week’s post!

Alternate view looking upstream at Chickies Furnace reveals the dam that fed a channel for the old iron works as well as the various walls that date back to the original 1846 furnace site. Note the piers from the former Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad Columbia branch. The piers were most likely upgraded around the same time the low-grade was built judging by the similarities in the stone when compared to the newer arch bridge down stream.

Alternate view looking upstream at Chickies Furnace reveals the dam that fed a channel for the old iron works as well as the various walls that date back to the original 1846 furnace site. Note the piers from the former Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad Columbia branch. The piers were most likely upgraded around the same time the low-grade was built judging by the similarities in the stone when compared to the newer arch bridge down stream.

Philadelphia Division: Shocks Mills Bridge

During a developing thunderstorm the Shocks Mills bridge reveals its scars with the back lighting emphasizing the difference between the original stone arches and the replacement deck girder spans to the left. This view is from a large rock cluster in the river looking north from the east bank of the mighty Susquehanna River.

During a developing thunderstorm the Shocks Mills bridge reveals its scars with the back lighting emphasizing the difference between the original stone arches and the replacement deck girder spans to the left. This view is from a large rock cluster in the river looking north from the east bank of the mighty Susquehanna River.

Perhaps the bane of Chief Engineer William H. Brown's existence, the Shocks Mill Bridge is of significant note among the countless stone arch bridges, overpasses and culverts constructed on the PRR during his tenure. Opened in 1903 the Shocks Mills bridge was a part of the low-grade freight only line being constructed to connect Philadelphia and Harrisburg. Situated roughly 8 miles railroad west of Columbia the strategic bridge and accompanying line linked the Northern Central in Wago with existing lines in Columbia and ultimately the new Atglen and Susquehanna further down river. The 28 arch stone bridge was over 2200 feet long spanning the Susquehanna River with trains riding approximately 60 feet above low water. A smaller sister to the beautiful Rockville Bridge further upstream, initial construction cost the PRR $1 million dollars to build the bridge and long fill on the eastern approach. However problems with the bridge developed when piers began to settling in 1904 resulting in more money and time spent to reinforce the compromised areas of the span. After this additional work the bridge endured decades of heavy use and the additional of catenary during the later electrification phase of freight lines in 1937-38.

shocksmills.001

In June of 1972, Hurricane Agnes would batter the East Coast causing record floods throughout the area resulting in over 3 billion dollars in damage and causing over 128 fatalities. Cash starved Penn Central was hit hard having multiple washouts throughout the system but one of more significant would be the loss at Shocks Mill. On July 2nd, 1972 a train crew noticed problems with the center piers of the bridge as flood waters raged below during one of the worst natural disasters in American history. Soon after, six piers toward the center of the stone bridge would collapse rendering the low-grade line useless until the damage could be assessed and rebuilding could take place. Becuase the PC was under bankruptcy protection court permission was sought to rebuild the vital link. Started late in the third quarter of 1972 the new construction was completed by August of 1973 utilizing nine new concrete piers supporting deck girder spans to bridge the void. Until settling compromised a pier on the Rockville bridge in 1997 this would be the only major failure on record of the proven and sturdy construction methods Brown used during his 25 year tenure as Chief Engineer.

Philadelphia Division: Cordorus Creek

CodorusCreek.001

During the construction of the low-grade, surveyors encountered several obstacles in the form of creeks and rivers. At approximately milepost 47 on the York Haven Line, Chief Engineer, William H. Brown handled Codorus Creek like many others around the system utilizing the standard cut stone masonry arch bridge, this one consisting of five arches. The Codorus bridge curves to the east on a high fill as  the mainline climbs toward the Shocks Mill Bridge over the Susquehanna River, less than a mile to the east.

Philadelphia Division: Cly

Former location of Cly block station and interlocking. The tower actually sat just around the curve, with this bridge supporting the eastbound home signals. Note the extra space on the right, this area was once four tracks wide with the Northern Central and York Haven Lines coming down from Enola.  Four miles east of here the NC would diverge from the York Haven Line at Wago Junction. This location was once part of the electrified low-grade line, evident by the cut steel posts on the left side of the tracks. Norfolk Southern has been doing considerable work here replacing rail, signals and general clean-up. After making this photo the former PRR signal bridge would fall, being cut up, further eliminating the visual clues that speak to the heritage of this line.

Former location of Cly block station and interlocking. The tower actually sat just around the curve, with this bridge supporting the eastbound home signals. Note the extra space on the right, this area was once four tracks wide with the Northern Central and York Haven Lines coming down from Enola.  Four miles east of here the NC would diverge from the York Haven Line at Wago Junction. This location was once part of the electrified low-grade line, evident by the cut steel posts on the left side of the tracks. Norfolk Southern has been doing considerable work here replacing rail, signals and general clean-up. After making this photo the former PRR signal bridge would fall, being cut up, further eliminating the visual clues that speak to the heritage of this line.

Leaving the greater Harrisburg / Enola area from the west bank of the Susquehanna, the PRR's York Haven Line drops down river toward Columbia, PA. This line was a key component of PRR president Alexander J. Cassatt’s plan to build a low-grade freight bypass diverting traffic off the mainline from the Philadelphia area. Existing lines and new construction in the early 1900’s provided access to Baltimore by way of both the Northern Central via York and the Columbia and Port Deposit Branch via mainline connection at Perryville, Philadelphia via the new Atglen & Susquehanna and Lancaster via the original Philadelphia & Columbia. Running a distance of 15 miles east from Enola Yard along the former Northern Central alignment, this “branch” was actually one of the busiest electrified freight arteries in the east. Alongside the Susquehanna River in the town of Cly, the railroad maintained an interlocking here connecting the York Haven Line to the Northern Central. These lines would run parallel to Wago Junco where the NC drops southwest toward the city of York.

Plate drawing of Cly interlocking circa 1963. Note on the bottom right the Northern Central was already reduced to one track east of the interlocking in the vicinity of Cly tower and Wago Junction where the line physically split off from the York Haven line to Columbia. By this time little freight traffic traveled east of York on the former Northern Central route and passenger traffic no longer warranted double track in many locations. Plate drawings collection of  http://broadway.pennsyrr.com/Rail/Prr/Maps/.

Plate drawing of Cly interlocking circa 1963. Note on the bottom right the Northern Central was already reduced to one track east of the interlocking in the vicinity of Cly tower and Wago Junction where the line physically split off from the York Haven line to Columbia. By this time little freight traffic traveled east of York on the former Northern Central route and passenger traffic no longer warranted double track in many locations. Plate drawings collection of http://broadway.pennsyrr.com/Rail/Prr/Maps/.

Cly tower was constructed in 1906; one of the few PRR interlockings utilizing an Armstrong plant of mechanical levers to control switches over the later US&S electro-mechanical installations.  Constructed of brick the two-story tower was a contrast to neighboring installations built in the late 1930’s like Cola to the east, which controlled long stretches of line utilizing a Centralized Traffic Control installation. Though an important junction the Northern Central to York was never a preferred freight route in later days of the PRR hosting passenger trains and local freight. During the Penn Central years the route suffered heavy damage as a result of Hurricane Agnes. In a dire financial situation, Penn Central opted not to rebuild the route and Cly’s importance as an interlocking diminished resulting in the eventual closing of the tower in the early 1980’s under Conrail. Today there is little left here as Norfolk Southern works to modernize this line, the catenary poles have been cut down and position light signals replaced with modern installations. While connection is still made to the branch to York in a simplified interlocking at Wago the modern Cly is a mere curve and grade crossing at milepost 54 of the Enola Branch.

Mainline Tour: Philadelphia Division Overview

Leaving the City of Harrisburg behind we will begin to explore the various lines radiating east. On the Philadelphia Division trains traverse routes purchased under PRR President, J. Edgar Thompson in an effort to gain access to Philadelphia. Later these routes would be improved upon or supplemented during President Alexander J. Cassatt’s series of system wide improvements which focused on reducing operational problems associated with the older alignments and increasing capacity

Images of upcoming posts exploring the former Philadelphia Division of the Pennsylvania Railroad. This series will include coverage on both the Mainline, Northern Central, Atglen & Susquehanna, Columbia and Port Deposit and Columbia Branch.

Images of upcoming posts exploring the former Philadelphia Division of the Pennsylvania Railroad. This series will include coverage on both the Mainline, Northern Central, Atglen & Susquehanna, Columbia and Port Deposit and Columbia Branch.

Understanding this network requires a look back to the early 1800’s during the building of canals as a key national transportation network. Pennsylvania followed suit with construction of the State Mainline of Public Works in 1826which was completed in 1834. The system would utilize a series of canals, inclined planes and railroads to move people and freight across the expansive countryside from Philadelphia to Pittsburgh. While some considered the network an engineering marvel the seasonal and logistic limitations quickly proved impractical. In time the Mainline of Public Works would begin to struggle financially. Furthermore the State granted a charter to the Pennsylvania Railroad for construction of a private rail line connecting Harrisburg and Pittsburgh in 1846 which would be in direct competition to the Public Works network. While many protested the new technology, the PRR ultimately won building their right of way in many cases parallel to the canal alignments. Shortly after completion of this line, PRR president J. Edgar Thompson secured access east of Harrisburg via control of the Harrisburg, Portsmouth, Mt. Joy and Lancaster Railroad (H&L) in 1849 providing  a connection to the Philadelphia and Columbia Railway (P&C) in both Lancaster and Columbia.With this connection to the State operated P&C, the only all rail network between Pittsburgh and Philadelphia would be created. With limited funding however, the P&C quickly became the operational lynchpin to quality rail service due to primitive trackage and poor right of way construction. By 1857 the PRR successfully purchased all remaining properties associated with the Public Works system, abandoning most of the canal and inclined plane operations but allowing the PRR to rebuild the P&C to suit the needs of the expanding railroad.

Detail of Pennsylvania Railroad system map circa 1855 listing connecting service with the Harrisburg & Lancaster RR, Columbia & Harrisburg RR and Columbia Railroad (actually the Philadelphia & Columbia) all which eventually would be taken over by the PRR. (Library of Congress Collection)

Detail of Pennsylvania Railroad system map circa 1855 listing connecting service with the Harrisburg & Lancaster RR, Columbia & Harrisburg RR and Columbia Railroad (actually the Philadelphia & Columbia) all which eventually would be taken over by the PRR. (Library of Congress Collection)

Around the same time the PRR would acquire access to Baltimore via control of the Northern Central in 1861 establishing connections to the mainline in Harrisburg and the former P&C and H&L near Columbia.  This line also provided connections to the Anthracite fields in Shamokin, Lake Ontario access via the Elmira Branch and a mainline to Buffalo, New York providing connections with Canadian Railways. During the system improvements of President A. J. Cassatt between 1899-1906 the Northern Central would also become the western anchor of a new freight only low-grade from New York and Philadelphia.  Built to separate heavy freight traffic from the current mainline with its winding curves and undulating grades of the original P&C and H&L, Cassatt and Chief Engineer, William H. Brown surveyed a line connecting with the Columbia and Port Deposit Railroad (C&PD) near Safe Harbor on the Susquehanna River. The C&PD would become the link between Cassatt’s new low-grade, the industrial center Columbia and the Northern Central via a new bridge over the Susquehanna at Shocks Mills, providing access to existing lines to gain access to Harrisburg.  Subsequently the C&PD would also become the route of choice for moving freight to Baltimore via connection to the mainline at Perryville due to the water level alignment and lack of grades making the older NC route the default passenger line.

Detail of an 1863 system map shows the integration of the lines purchased under J. Edgar Thompson including the Northern Central which comes from the bottom center heading directly toward Hanover Junction. (Rutgers University Collection)

Detail of an 1863 system map shows the integration of the lines purchased under J. Edgar Thompson including the Northern Central which comes from the bottom center heading directly toward Hanover Junction. (Rutgers University Collection)

Known as the Atglen and Susquehanna the new line climbed the Susquehanna River valley slowly veering east to cut across the rolling countryside of Lancaster County.  Void of road crossings, major industry, challenging gradients or curves, the line came parallel to the mainline in a hamlet known as Atglen. Junction with the mainline was in neighboring Parkesburg via a fly-over arrangement insuring no delays to both freight and passenger traffic. Continuing east the mainline hosted combined freight and passenger traffic on four track mainline for nine miles to Thorndale where freight once again left on a low-grade line known as the Philadelphia and Thorndale Branch.

Detail of a 1911 system map showing the completion of Cassatt's low-grade network by way of the Atglen & Susquehanna Branch (lower center to lower right) between Cresswell and Parkesburg, Pennsylvania. (Rutgers University Collection)

Detail of a 1911 system map showing the completion of Cassatt's low-grade network by way of the Atglen & Susquehanna Branch (lower center to lower right) between Cresswell and Parkesburg, Pennsylvania. (Rutgers University Collection)

Though large parts of this network have been abandoned the mainline still serves Amtrak’s successful Keystone Service while many of the lines along the Susquehanna River still connect the Norfolk Southern network to York and Baltimore via the old NC and C&PD. This segment of the mainline tour will explore the various routes the PRR used to move traffic between the Harrisburg and Philadelphia Terminals, utilizing imagery, maps and text to explain operations specific to each route.
