Royalton's Early Transportation Roots

The canal lock that survives along Water Street in Royalton survives in ruin as quiet testimony of rail's triumph over canal transportation in the race to build America. One of 14 locks along the Eastern Division Canal it was part of Pennsylvania’s failed Mainline of Public Works that gave way to the Pennsylvania Railroad.

The canal lock that survives along Water Street in Royalton survives in ruin as quiet testimony of rail's triumph over canal transportation in the race to build America. One of 14 locks along the Eastern Division Canal it was part of Pennsylvania’s failed Mainline of Public Works that gave way to the Pennsylvania Railroad.

In a strip of land between the former Harrisburg and Lancaster Railroad's Columbia branch and the Susquehanna River in modern day Royalton, Pennsylvania lays one of the few remaining clues of another transportation empire that succumbed to the practicality of the railroads. The State owned Mainline of Public Works was completed in 1834 creating a multimodal transportation network to connect Philadelphia and Pittsburgh in direct competition with the Erie Canal. Consisting of over 273 miles of canal and 120 miles of railroad, the system utilized various modes of transport based on  geographic necessity. The Philadelphia & Columbia Railroad connected its namesake towns to the Eastern Division of the Pennsylvania Canal. The Eastern Division ran 43 miles north from Columbia along the east bank of the Susquehanna River in Lancaster and Dauphin Counties.  The canal made a northern connection to the Juniata Division Canal at Duncan’s Island and intermediate connections to Harrisburg and the Union Canal in Middletown. The Juniata Division paralelled the Juniata River making connection with the Allegheny Portage Railroad in Hollidaysburg where canal boats were then transported by rail over a series of inclined planes to cross the Allegheny ridge at a summit of 2322 feet above sea level. West of the Allegheny summit the Portage Road  made connection to the Western Division Canal in the City of Johnstown following the path of the Conemaugh, Kiskiminetas and Allegheny Rivers westward to Pittsburgh and the Ohio River.

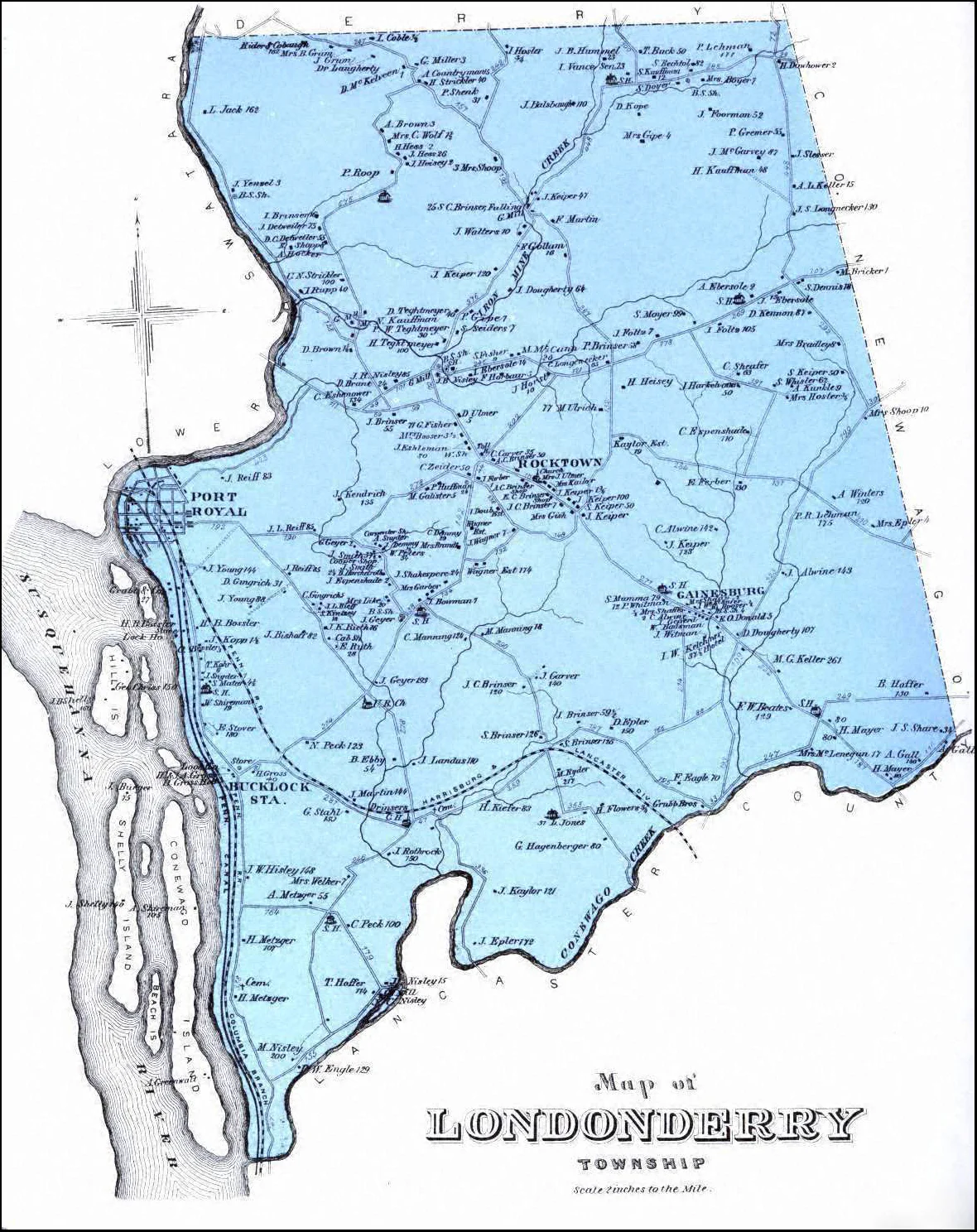

1875 map of Londonderry Township illustrates the Eastern Division of the Pennsylvania Canal as well as the railroads that would put the Mainline of Public Works out of business. Map Collection of  http://maley.net/atlas/ .

1875 map of Londonderry Township illustrates the Eastern Division of the Pennsylvania Canal as well as the railroads that would put the Mainline of Public Works out of business. Map Collection of http://maley.net/atlas/.

The dangerous and slow inclined planes of the Portage Road along with the canals would prove to be the downfall of the Public Works system limited by capacity and the seasonal nature of operations. The vast and diverse infrastructure needed constant work, many cases in remote areas making the system costly to maintain. By the 1840’s some investors began to look to the railroad as a better transportation solution and in 1846 the charter to build the Pennsylvania Railroad, a privately owned rail route from Harrisburg to Pittsburgh would challenge the Public Works System running almost exactly the same route. While the benefit of rail transportation over the Public Works was quickly realized subsequent expansion east to Philadelphia in 1854 would create the first all rail route across the state, dealing the final blow to the canals and Portage Railroad. The PRR eventually purchased most of the bankrupt Public Works system from the state to improve their mainline, often offering favorable routes alongside of towns rather than the early street running alignments of the original 1846 railroad.

Philadelphia Division: Royalton

Plate drawing of Roy Interlocking circa 1957. By this date this facility was a remote interlocking under the control of the operator at State Tower in Harrisburg.  Note the jump over that positions the freight main on the proper side of the passenger mainline to diverge south along the Susquehanna to make connection with the York Haven line at Shock Mills. Plate drawing collection of  The Broad Way .

Plate drawing of Roy Interlocking circa 1957. By this date this facility was a remote interlocking under the control of the operator at State Tower in Harrisburg.  Note the jump over that positions the freight main on the proper side of the passenger mainline to diverge south along the Susquehanna to make connection with the York Haven line at Shock Mills. Plate drawing collection of The Broad Way

Straddling the towns of Middletown and Royalton in Dauphin County, Royalton interlocking was a strategic point where most freight and passenger traffic separated for the trip east to New York, Philadelphia and Baltimore. Approximately 10 miles east from State Interlocking the mainline and Columbia branch (today Norfolk Southern's Royalton branch) ran along side each other with the freight operating on tracks furthest to the north. The Columbia branch, which drops south along the Susquehanna diverted freight trains away from the main at Royalton requiring traffic to cross into the path of the busy passenger main. To avoid this potential traffic disruption the PRR applied a proven technique of building a fly-over to allow all tracks/trains to gain proper position without the need to physically cross or intersect the other route.

View of current interlocking looking west at Roy. In the distance one can see the eastbound home signals and Amtrak's Middletown station, the overhead bridge is Burd Street. Note the older style relay hut and air plant on the right side of the tracks, this was the site of the original 2 story frame tower that controlled the interlocking prior to the late 1950’s project which moved control of this interlocking to State. Norfolk Southern operates the line diverging to the left as the Royalton Branch, which connects to the Enola and Port Road branches at Shocks Mill. This was the former PRR Columbia branch and at one time was a double track electrified artery that linked the mainline with the low-grade line to points east.

View of current interlocking looking west at Roy. In the distance one can see the eastbound home signals and Amtrak's Middletown station, the overhead bridge is Burd Street. Note the older style relay hut and air plant on the right side of the tracks, this was the site of the original 2 story frame tower that controlled the interlocking prior to the late 1950’s project which moved control of this interlocking to State. Norfolk Southern operates the line diverging to the left as the Royalton Branch, which connects to the Enola and Port Road branches at Shocks Mill. This was the former PRR Columbia branch and at one time was a double track electrified artery that linked the mainline with the low-grade line to points east.

Prior to the late 1950's Royalton interlocking was controlled by a two story frame tower that sat on the eastern side of the tracks (railroad was oriented north - south here). The early interlocking plant was of an older design using a mechanical armstrong complex to control the switches and signals between the mainline and Columbia branch. The Columbia branch served as a back road connection from the mainline and freight yards in Harrisburg  to the low-grade route via Shocks Mill allowing freight from all directions to bypass congestion in Enola when necessary. In the late 1950’s Royalton interlocking was made a remote facility named Roy with control given to the operator at State Tower in Harrisburg. Evidence of this project survives in the form of a single story relay house that rests on the foundation of the former tower. As part of Amtrak’s Keystone Line rehab, Roy was rebuilt once again providing Amtrak with a set of crossovers for operational flexibility (the line is now governed by Rule 261-allowing bi-directional traffic flow) while maintaining the connection to the Royalton branch.

The single story brick building next to the westbound home signal protecting the Columbia Branch was a small yard office and maintainers building. The structure survives today to serve Amtrak C&S crews, having recently received new windows and an extension, evident by the different color brick on the left side of the structure.

The single story brick building next to the westbound home signal protecting the Columbia Branch was a small yard office and maintainers building. The structure survives today to serve Amtrak C&S crews, having recently received new windows and an extension, evident by the different color brick on the left side of the structure.

Special thanks to Mr. Don Rittler, who's input on operations at Royalton provided some insight on this relatively obscure facility on the Pennsylvania Railroad. Don worked as a tower operator for the PRR and its successors in the Harrisburg region from 1937-1979.
