Photographs & History

Photographs and History

Quarryville | 19th Century Railroading With Big Aspirations

TM Fowler Map circa 1903, illustrating the town of Quarryville. Though construction of the A&S had just commenced in 1903, the line is clearly depicted In the bottom left corner, complete with a connection between the new route and Quarryville Branch that was never constructed. Collection of the Southern Lancaster County Historical Society scanned from Mary Boomsma

TM Fowler Map circa 1903, illustrating the town of Quarryville. Though construction of the A&S had just commenced in 1903, the line is clearly depicted In the bottom left corner, complete with a connection between the new route and Quarryville Branch that was never constructed. Collection of the Southern Lancaster County Historical Society scanned from Mary Boomsma

Quarryville has always been a crossroad of activity in the fertile farmlands of Southern Lancaster County. Farmers purchased lumber, grain, and fertilizer here and reciprocally exchanged their bounties in town and beyond via the local county railroad, a lifeline to the outside world. Commonly known as the Quarryville Branch this rail line had an interesting early history that started with big hopes and ended with financial disaster. The Lancaster & Reading Narrow Gauge Railroad was chartered in 1871 to build a narrow gauge network between Safe Harbor and Reading via Lancaster including a branch to Quarryville, competing directly with the neighboring Reading Company subsidiary the Reading & Columbia.  Before construction commenced it was decided to build the line to standard gauge instead, but the Panic of 1873 quickly stalled progress. Falling into financial distress, the Lancaster & Reading Narrow Gauge Railroad was ironically leased to the Reading Company becoming an extension of its Lancaster Branch, part of the R&C.

A typical PRR train traversing the former Lancaster & Reading Narrow Gauge Railroad between Lancaster and its southern terminus in Quarryville. Walter G. Minnich Jr. collection

A typical PRR train traversing the former Lancaster & Reading Narrow Gauge Railroad between Lancaster and its southern terminus in Quarryville. Walter G. Minnich Jr. collection

With the contract secured for the branch to Quarryville, the Reading looked to another opportunity, the potential of connecting with the B&O mainline by extending south from Quarryville to Elkton, MD, a move that would involve the financially strapped narrow gauge railroad the Lancaster, Oxford & Southern. When presented the idea of becoming a bridge route, the LO&S optimistically commenced plans to build new extensions on its existing route including a new line to Quarryville, with the intention of everything being converted to standard gauge. Once complete perhaps the small common carrier would see financial success or even be purchased at a profit by the Reading or the B&O. The plan, however, began to crumble when the Lancaster & Reading Narrow Gauge Railroad defaulted on their mortgage, rendering the Reading lease null and void, and the property went up for auction in 1900. At the Philadelphia Stock Exchange, a tense bidding war played out between extended representatives of the B&O, Reading Company and PRR. Charles H. Locher, a Lancaster businessman, minor shareholder of the L&RNGR and friend of the PRR attended the auction, outbidding the competition and thus protecting their coveted territory by eliminating the plan for the competitor's line once and for all. Regardless the LO&S completed the branch to Quarryville but the hopes for financial success or being converted to standard gauge were never realized, the railroad toiled in bankruptcy through 1910 scrapping its Quarryville Branch in 1917 with the rest of the railroad ceasing operation the following year.

Quarryville Station, view before the Lancaster Oxford & Southern abandonment in 1917. Note the dual gauge trackage in the foreground, an area shared by the LO&S and the PRR. Image Walter G. Minnich Jr. collection, Southern Lancaster County Historical Society

Quarryville Station, view before the Lancaster Oxford & Southern abandonment in 1917. Note the dual gauge trackage in the foreground, an area shared by the LO&S and the PRR. Image Walter G. Minnich Jr. collection, Southern Lancaster County Historical Society

While the drama of railroad barons and hopes of back-road competition unraveled, another chapter in railroad history was playing out in the small town. The PRR commenced construction of the new Low Grade route across Southern Lancaster County. Situated at the approximate center of the eastern segment of the new Atglen & Susquehanna Branch, Quarryville was the epicenter of construction and staging between 1903 and 1906. Despite the building of the new line, it was very evident that the PRR had no intention to tap the small agricultural market with any additional resources other than the branch it maintained from Lancaster. When construction was completed the A&S cut through the Borough on an elevated fill with little more than a water stop, a telephone box and overpasses over its branch and another on Church Street.

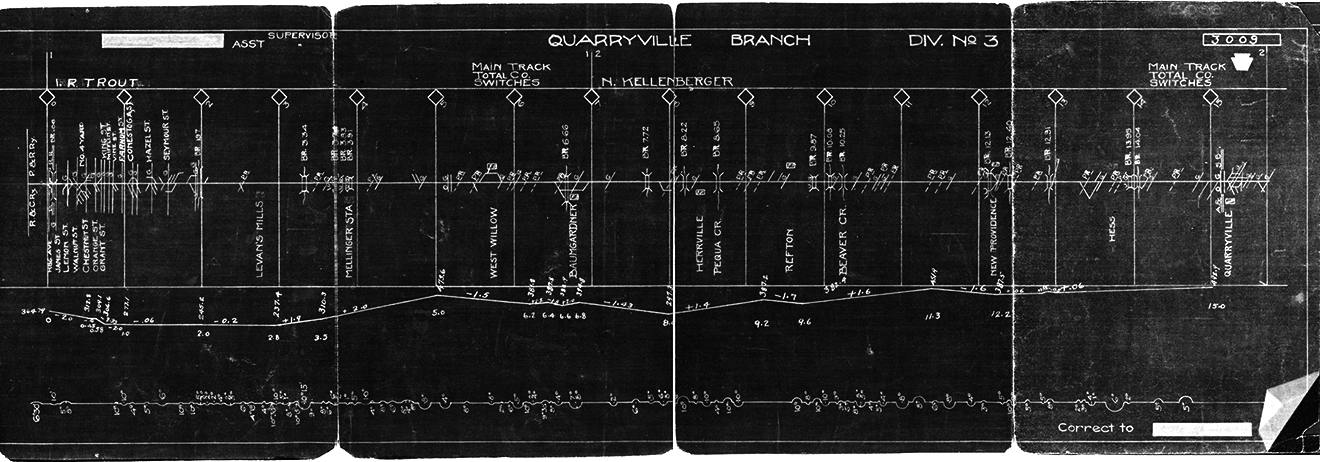

Pennsylvania Railroad track chart showing the grades and curvature of the former Lancaster & Reading Narrow Gauge Quarryville Branch circa 1940.

Pennsylvania Railroad track chart showing the grades and curvature of the former Lancaster & Reading Narrow Gauge Quarryville Branch circa 1940.

For the next half a century the railroads continued to operate separately from one another. As the PRR entered its final year's maintenance on marginally performing branches were often deferred, and the Quarryville Branch was certainly no exception. Entering the Penn Central era, with finances already tight, management looked to shed money-losing lines; the Quarryville Branch made the short list when the Penn Central petitioned the ICC for the abandonment of over 138 line segments in 1971. Making matters worse the branch suffered an even greater blow in 1972 when it sustained significant damage from Hurricane Agnes placing most of the branch out of service.  Regardless, the shippers in Quarryville rallied, seeking a deal with Penn Central, who had estimated that a 1700’ line connection to the A&S would come with a price tag of $130,000 a burden the broken railroad could not afford. Shippers agreed to pay the cost of construction, and the PC withdrew 2.26 miles from the ICC petition, saving the most lucrative piece of the branch and rail service to local shippers. Finally, after 67 years of trains flying over the town, Quarryville had a connection to the A&S, but that too would only last another 15 years.

40 Years | A Brief History of Conrail

Two Conrail trains part ways at iconic Horseshoe Curve west of Altoona, Pennsylvania on the former Pennsylvania Railroad main line over the Alleghenies, October 21, 1988. Image courtesy of  Mike Danneman

Two Conrail trains part ways at iconic Horseshoe Curve west of Altoona, Pennsylvania on the former Pennsylvania Railroad main line over the Alleghenies, October 21, 1988. Image courtesy of Mike Danneman

At the close of the 1960’s railroads of the Northeast struggled with mounting debts, declining traffic and deferred maintenance. Coal, once the railroads mainstay traffic source, took a nosedive as the nation’s appetite for oil increased, triggering financial panic among many rail carriers in the Mid-Atlantic. The Pennsylvania Railroad and New York Central, once bitter rivals, merged into the Penn Central creating perhaps the most infamous face for the ensuing financial disaster seven major carriers faced in the early 1970’s. In order to avoid the complete collapse of railroading in the east, congress enacted the Regional Rail Reorganization Act of 1974 (commonly referred to the 3R Act). The Act provided interim funding for the struggling carriers while creating Consolidated Rail Corporation, a government funded private company. Under the Act the United States Railway Association prepared a plan to determine what lines of the seven carriers would be incorporated in the final system plan to be transferred to Conrail. This plan would be approved by congress under the subsequent Railroad Revitalization and Regulatory Reform Act of 1976 (4R Act) which was signed into law in February of 1976.

The original Conrail system map circa April 1st, 1976. Note the absence of the iconic Conrail logo. Collection of the Multimodalways Project

The original Conrail system map circa April 1st, 1976. Note the absence of the iconic Conrail logo. Collection of the Multimodalways Project

Conrail was incorporated in Pennsylvania the same month and began operations April 1st 1976. The company’s function was to revitalize freight service between the Northeast and Midwest, operating as a for-profit operation. In 1981 Conrail’s economic standings began to turn around showing its first profit since incorporation. Under the leadership of L. Stanley Crane, a former Southern Railway CEO, the railroad flourished, shedding an additional 4100 unprofitable and redundant miles from the system between 1981 and 1983. The Staggers Rail Act of 1981 also provided much needed deregulation of railroad rates and tariffs allowing for changes in rate structuring that dated back to the turn of the century, giving railroads the ability to better compete with trucking companies. By the time Conrail approached its 10th birthday the railroad was ready to return back to the private sector. In the fall of 1986 congress signed in the Conrail Privatization Act authorizing a public stock offering that resulted in one of the largest IPOs in US history raising $1.9 billion in 1987.

Normal
 0




 false
 false
 false

 EN-US
 JA
 X-NONE







































































































































































 /* Style Definitions */
table.MsoNormalTable
	{mso-style-name:"Table Normal";
	mso-tstyle-rowband-size:0;
	mso-tstyle-colband-size:0;
	mso-style-noshow:yes;
	mso-style-priority:99;
	mso-style-parent:"";
	mso-padding-alt:0in 5.4pt 0in 5.4pt;
	mso-para-margin:0in;
	mso-para-margin-bottom:.0001pt;
	mso-pagination:widow-orphan;
	font-size:12.0pt;
	font-family:Cambria;
	mso-ascii-font-family:Cambria;
	mso-ascii-theme-font:minor-latin;
	mso-hansi-font-family:Cambria;
	mso-hansi-theme-font:minor-latin;}

   Tony Palladino worked for design firm Siegel & Gale when he developed the iconic Conrail logo and identity, shown here in a lettering diagram. Collection of the Milton Glaser Design Study Center and Archives.

Tony Palladino worked for design firm Siegel & Gale when he developed the iconic Conrail logo and identity, shown here in a lettering diagram. Collection of the Milton Glaser Design Study Center and Archives.

Conrail’s ubiquitous blue locomotives and “can opener" logo developed by designer Tony Palladino became the symbol of a profitable network, a success story for a new era of railroading which also saw the creation of Norfolk Southern and CSX Transportation. Ironically in the 1990’s NS and CSX engaged in a takeover battle that would have created an unhealthy imbalance in northeastern rail service, the compromise was instead a split of the Conrail system. CSX would take 42% of Conrail’s assets and the former NYC properties with NS assuming the 58% balance and much of the PRR network. Interestingly enough, the final split of Conrail is similar to a merger proposal from the 1950’s in response to the proposed marriage of the New York Central and Chesapeake & Ohio. The PRR had looked to join forces with the N&W and Wabash, both of which it already had a controlling interest in. Regardless, the ICC rejected both mergers but the net result some fifty years later is the same. Outside of the major split of Conrail assets three terminals where competition was in jeopardy continues to be serviced by the jointly owned Conrail Shared Assets Operation, providing equal access for both railroads in Detroit, Northern and Southern New Jersey/ Philadelphia continuing the Conrail name that began operations 40 years ago today.



In Memoriam

Donald T. Rittler: 1919 - 2016

It is with a heavy heart that I share the news of the passing of Donald T. Rittler, a former Pennsylvania Railroad train director who lived and worked in the Harrisburg area for most of his life.  In 2012 I had the privilege to meet Mr. Rittler during a private tour of the Harris tower museum, arranged by NRHS Harrisburg Chapter members. When Don arrived he brought this already fantastic interactive site alive with first hand experiences of running one of the most important interlocking towers on the PRR Philadelphia Division. Since to that meeting I had several opportunities to talk with Don about his experiences on the railroad including a very special return visit to Harris that I was so lucky to share with my father and son.

During my visit to Harris in 2012 I had some time to chat with Don while photographing him with the 4x5 view camera. I am lucky to have this image of Don at the train director's desk, a familiar place throughout his 42 years of working in interlocking towers for the Pennsylvania Railroad, Penn Central and Conrail.

During my visit to Harris in 2012 I had some time to chat with Don while photographing him with the 4x5 view camera. I am lucky to have this image of Don at the train director's desk, a familiar place throughout his 42 years of working in interlocking towers for the Pennsylvania Railroad, Penn Central and Conrail.

Don Rittler started his career with the Pennsylvania Railroad on October 11th, 1937 as a messenger for the interlocking towers on the PRR Philadelphia Division. The first person to be hired since the 1927 furlough of employees as a result of the Great Depression, Don worked the introductory job spending his days relaying messages and paperwork from tower to tower as needed, gaining a familiarity to the basic operations and chain of command among the many towers on the system.  On December 1st, 1940 Don posted his first position as a block operator and leverman, working the Philadelphia Division extra list, filling in at different towers over the years.

Detail of Don's home away from home, Harris Tower's interlocking machine and train director's desk, a post Don worked for many of his years during his tenure with the PRR which began in 1937.

Detail of Don's home away from home, Harris Tower's interlocking machine and train director's desk, a post Don worked for many of his years during his tenure with the PRR which began in 1937.

In 1944, like many other PRR employees Rittler was summoned to serve his country in World War II. Holding the title of Master Sergeant in the Army’s 775th Railway Grand Division and the 3rd Military Regiment, Don’s deployment centered in the Pacific Theater during the height of the war. Initially working in the Philippines operating the Manila Railway Don’s unit moved to Japan to secure a railhead for military transport inland in the event of land attacks. As a result of the infamous atomic bombs, their services were not needed for this purpose but they did continue to work keeping the Japanese rail systems functional. Returning to the US a short two years later almost exactly to the day, Rittler resumed his tenure with the PRR, holding tower positions as both leverman and eventually train director for State and Harris towers near the Harrisburg passenger station.  Rittler, who’s father was a master machinist for the Pennsy in Enola was always fascinated with the railroad, as it was always apart of his life, with many friends, neighbors and family also employed by the PRR.

Don and his wife Mary built a house in New Cumberland near Lemoyne and lived a wonderful life with their daughter Donna, sharing the family like atmosphere and camaraderie of the many railroaders Don worked with on a daily basis. He continued to work in the Harrisburg area well into the Penn Central era eventually moving to Conrail after the 1976 consolidation. Amtrak was slowly taking over operations on the Keystone Corridor in the mid 1970’s and Don’s choices of where to work were becoming increasingly limited. Don ultimately worked first shift at Lemo tower in Lemoyne, which he described as a welcome break from the busy towers he was accustomed to like Harris, finishing out a spotless 42 year career in railroading in 1979. After retirement, Don was very gracious with his time and experience in the towers, helping the NRHS Harrisburg Chapter develop the interpretive exhibit for the Harris tower project. He would also on occasion visit with small groups at the museum to provide first hand working knowledge of his craft like I was so fortunate to experience. Don’s presence at Harris will be greatly missed but thanks to his generosity, his legacy and knowledge will live on with the Harrisburg Chapter and the Harris tower museum.


May your presence always be felt at Harris tower, rest in peace Don.


For more information about memorial services for Mr. Rittler, please click here



Interview | From America with Love

As mentioned last week, here is the interview I did with photojournalist and educator Niko J Kalliantiotis for the project From America with Love a curated platform hosted by the organization Orama Photos, Greece. The interview discusses the Main Line Project as well as my overall approach to photography and will be part of a larger survey showcasing the current state of contemporary American photography. Enjoy!

From the Main Line is a project that draws on many personal interests and is intended to be a long term investment creatively. Franklin Boro and Main Line, View from East Conemaugh, Pennsylvania.

From the Main Line is a project that draws on many personal interests and is intended to be a long term investment creatively. Franklin Boro and Main Line, View from East Conemaugh, Pennsylvania.

NJK: You have been working on the Railroad project for approximately ten years. Can you please discuss the nature of the project from its inception to its current state

MFP: When I started the project From the Main Line, I was looking for something that connected a number of different personal interests, something big that I could dive into in phases and that would provide a sort of long-term return creatively. The railroad is what initially led me to pick up a camera, I wanted to get back to the subject but not in the sense of the trains themselves, I instead wanted to focus on the surviving infrastructure and landscape. I chose the Pennsylvania Railroad (PRR) because of its historical significance and the amount of surviving elements that would provide visual clues to juxtapose its past and current importance.  My initial approach was pretty simple, go out and follow the railroad between Harrisburg and Pittsburgh exploring the railroad right of way and the places the railroad served.

Between trips I took a lot of time to look at the work and figure out what was missing, what the project needed to convey the scale and significance of the PRR. I turned to the historical work of William H. Rau, a commercial photographer who was commissioned in the 1890s by the PRR to illustrate the railroad for marketing purposes. The work really struck me on both a technical and conceptual level. Here you had a photographer who was looking at the pinnacle of transportation and engineering utilizing a medium that was also coming into its own. Photographing a railroad that spanned the wilds of western PA, a corridor of modernity that was the lifeline for industry and people alike, an engineered landscape very different from its surroundings. It was Rau’s work and others like him that enlightened me to just how significant the railroad was, not just in the sense of the their engineering accomplishments but also how towns and industry flourished because of the railroad’s presence. In addition to Rau the writing of Harvard Landscape Studies professor John Stilgoe helped to better understand the physical, cultural and social impact the railroads had, and how to sort of recognize these attributes in my own work. From this research my approach became more informed, thus did the work. I was beginning to realize my photographs along with writing and historical resources could do a more effective job in telling the story of the railroad and the towns it served. It was the story of America’s rise in the industrial revolution, developing the east and concurring the west. My role is to illustrate and disseminate the layers of history along this engineered landscape. Utilizing both the exhibition format and a more in depth blog format allows the work to be both creative and historically informative, something that really appeals to my creative approach. Like the photographers before me who were hired to document the American scene, I continue a tradition in celebrating one of the most important transportation networks in the United States and how it remains a different but vital part of the American landscape.

NJK: There is a consistency in the aesthetic decisions and a timeless quality in the work. Can you talk briefly about your concept behind those aesthetic decisions?

MFP: Photography is great medium in that for me it is still part science, part creativity and make no mistake about it, the two are closely related. I typically work with a view camera, which lends itself to a slow methodical way of making pictures. The process, from lens selection, composition, exposure, development, scans and print is all very intuitive, very intentional. Recently I have introduced digital capture into the mix and even that is treated the same way. I have preferences in what light I like to work in, though sometimes beggars can’t be choosers, when you are 100 miles from home and railroad officials have committed to you for the day you have to make due with what you’re given. Being a good photographer means knowing the limits of your materials and how to manipulate what you have to get it to fit your visual aesthetic. I prefer black and white, I tend to print a little dark and a little flat, I like my work to be void of people, not because I don’t like them, but really because its about the timeless quality of these landscapes. The hand of industry and the railroads is implied, it doesn’t always need to be seen.

NJK: I find in the mood and testimony of the photographs a link to the current industrial situation in small town America. Is there a connection towards that territory or is the project strictly based on the documentation of the PRR?


MFP: Like many other photographers in this genre I am not trying to make a political statement I am simply conveying the information to the viewer (though that sounds a bit oversimplified). Yes the work is about the railroad, but if you don’t connect it to the landscape it travels and the industry it serves or once served you are missing the point. The landscape and the railroad developed for two reasons, need and opportunity, there is a very important relationship between the two, and when industry or the railroad left small towns, it brought despair, hardship and wave of social and economical issues.

I was in Mingo Junction, Ohio on a trip once, home to a massive Wheeling-Pitt steel plant and part of the PRR main line to St Louis. I stopped to ask a gas station attendant if I could use the property to make a photograph of the mill, his reply was, “take all the pictures you want, the mill just closed yesterday, over 500 people are without jobs now”. I haven’t been back since, but I bet its different, I bet its pretty sad, but you know what, I’ve been to the towns where the mill still works, its not much different these days, the culture has changed. The owners of these mills are often international corporations, they aren’t building communities to attract employees anymore, and they are barely treading water to stay alive in cutthroat markets. In the ten years I have been doing this I have seen whole neighborhoods disappear, mills close, even rail lines abandoned, its part of the life cycle and unfortunately some parts of the country suffer from it more while others are insulated from just how bad it gets when the jobs leave town. The railroad is literally the string that threads together modern economies and those of the past, its an essential part to understanding the importance and heritage of these places and one of biggest reasons I embarked on this project.

While From the Main Line is about the railroad I also take great care to consider the neighboring economies past and present to understand the larger life cycles of the surrounding landscape. View from West Singer Street, Johnstown, Pennsylvania.

While From the Main Line is about the railroad I also take great care to consider the neighboring economies past and present to understand the larger life cycles of the surrounding landscape. View from West Singer Street, Johnstown, Pennsylvania.

NKJ: From where do you derive inspiration for your work and what are some of the difficulties working on a project of such a large scale?

MFP: My inspiration comes from a number of sources. Photographically I can ramble off a dozen or more photographers: Walker Evans, Frank Gohlke, David Plowden, William Clift, William Rau, Carleton Watkins… the list goes on. But I also draw inspiration from the virtually nameless photographers, illustrators and graphic artists who worked for the railroads at various capacities. Graphic artists that captivated the fascination of potential travelers in brilliant full color adds, illustrators that sold albums of lithographs highlighting scenic vistas along the main line. Company photographers who were the day-to-day people chronicling the less than glamorous life of small towns and railroad construction and maintenance, anonymous photos of natural disasters and even the occasional train wreck. They captured the energy, excitement and details of life along the line; for this project it is often the historical imagery that feeds the creative imagination.

As far as working on a large-scale project, I don’t see any issues to it; it’s like a long-term investment. In this day and age people have such a short attention span I often wonder if I am shooting myself in the foot, but our quest in life is to do something you enjoy and be excited about right? Well, guess what… I still am after 10 years. When I am not excited anymore, I’ll stop and move on, but honestly with the depth of history of the PRR and the landscape it travels I don’t see myself loosing interest anytime soon. For me its not just about making art, it’s about preservation and that is not always something that happens overnight.

NJK: What are your intentions in communicating the work with the public and how do you promote and distinguish your work among a dense photographic community?

MFP: While I target the photographic community, most of my aim is toward a larger audience. I accomplish this through the usual mix of social media, email campaigns, and networking. Last year I had the opportunity to put together an exhibition for the Monmouth Museum in Lincroft, NJ, a sort of a visual history of the last 100 years of railroading. It was great to put my work in the context of some the photographers in my top ten list of all time favorites, it was also fun to put together a show that had a level of visual sophistication that transcended a show of just a bunch of “train pictures” as some people would dismiss it as.

I try to distinguish my work as being creative but also historically minded. I haven’t seen too many people with the level of commitment to a subject like this who have the balance between a good photographic and historical aesthetic, but as you said this is very saturated market. I am certainly not the only one reinventing the wheel.

NJK: How is the work received among the preservation community, considering the historical component?

MFP: In the historical field abroad the work has been received with open arms, and I am forever grateful for that. These are people that have worked so hard to preserve so many facets of the late Pennsylvania Railroad and many others, some even worked from the railroads at one point or another. I was born 8 years after the company’s demise; I am just going on imagination and my visual ability to present historical facts and images along side my own perception of the railroad. To me the recognition from the historical community is more important and far more gratifying than making it big in the art world, it’s a diverse group of people who never cease to amaze me with their generosity, intellect and conversation.

NJK: What is your advice to students and emerging photographers?

MFP: Don’t let a rejection set you back, present yourself as a professional and work as such. Even if it’s an assignment that doesn’t peak your personal interest dive into it head on, you might learn something. If you want to work in the field or be successful stick to your passion and always look to different mediums to expand your outlook on a given subject.

NJK: What is your opinion on the current state of American Photography, and the work that is promoted by photography dedicated platforms and social media nowadays?

MFP: I think it’s the same as it was 100 years ago. There are a lot of talented photographers out there, some rise to the top, some stay in the middle and others go unknown. The difference today is technology has leveled the playing field to a certain degree, but in reality, if you want to be successful you need to be visually literate and able to convey an idea in your own creative and unique way. That goes for fine art or commercial work. Social media floods us with visual resources day in and day out, most of it is crap, a few get lucky, but you can always pick out the professionals in their imagery, composition and presentation.

Crossing Mine Ridge

Looking west into Eby's curve the railroad traverses a fill across the timeless Amish farmland as it enters the Pequea Valley. The curve used to host four main tracks like much of the main line but much of the heavy tonnage would be diverted away from this segment after the  Atglen & Susquehanna branch opened in 1906.

Looking west into Eby's curve the railroad traverses a fill across the timeless Amish farmland as it enters the Pequea Valley. The curve used to host four main tracks like much of the main line but much of the heavy tonnage would be diverted away from this segment after the  Atglen & Susquehanna branch opened in 1906.

With Mine Ridge in the distance a fill carries the main line towards the summit from the west as it crosses between the Pequea and Chester Valleys. This area defined the ruling grade on the main line of the Philadelphia Division and continues to be the most challenging part of Amtrak's Keystone line.

With Mine Ridge in the distance a fill carries the main line towards the summit from the west as it crosses between the Pequea and Chester Valleys. This area defined the ruling grade on the main line of the Philadelphia Division and continues to be the most challenging part of Amtrak's Keystone line.

Passing through the pastoral Lancaster County landscape the eastbound ascent of Mine Ridge takes the PRR mainline around a series of reverse curves that carry the railroad over the 560’ summit dividing the Pequea and Chester Valleys. Gap, a quaint community whose history dates back to when William Penn visited the area late in the 1600’s is located at the crossroads of the Philadelphia & Lancaster Turnpike and the Newport Turnpike. The small village of roughly 1900 residents is divided by the first pair of significant curves on the main line including the 4° Eby’s curve and the 4° Gap curve. To attain the summit the railroad climbs a .56% ruling grade and enters a cut on the Gap curve through Mine Ridge, limiting trains to a maximum of 50mph. Through William H. Brown's improvement years there were several attempts to reduce curvature of the route, but an ambitious project was proposed to eliminate the curves all together in the first quarter of the 20th century. With an estimated cost of $2.7 million, the realignment would require the removal of a large piece of Mine Ridge to eliminate a total of four curves with one large gentle arc, increasing speeds from 50 to 90 mph and reducing average travel time by 1.5 minutes. Alas the realignment was deemed too costly for the time and was never revisited, leaving the same basic arrangement that survives today now part of Amtrak's Keystone Line.

The Paoli Local: 100 Years of Electrification on the Pennsylvania Railroad

At 5:55 AM, Saturday, September 11th 1915 the first scheduled electric powered train departed Paoli for Philadelphia marking the beginning of one of the most famous railroad electrification projects in the United States.

Overbrook Station marks the location where the Pennsylvania Railroad crosses from the Philadelphia city line into the suburban district knows locally as the Main Line. This location is full of PRR character including the station built in 1860, a PRR standard design interlocking tower and the original details from the first phase of the PRR's great electrification project.

Overbrook Station marks the location where the Pennsylvania Railroad crosses from the Philadelphia city line into the suburban district knows locally as the Main Line. This location is full of PRR character including the station built in 1860, a PRR standard design interlocking tower and the original details from the first phase of the PRR's great electrification project.

At the close of 1910 the Pennsylvania Railroad had certainly accomplished some remarkable projects. The building of Penn Station and the Hudson and East River Tunnels was an engineering feat that put the railroad at a major advantage over many others, giving them direct access to New York City while establishing a through connection to New England markets.  Out of necessity the new terminal utilized trains running on a proven direct current third rail system, as steam engines would literally suffocate passengers in the lengthy tunnels. The PRR had already begun utilizing DC propulsion on routes previous to the terminal as a way to economize operations and included subsidiaries Long Island Railroad and part of the West Jersey & Seashore. To the north the New Haven had just inaugurated heavy electrified main line service utilizing a new alternating current installation in 1907, but with little time to observe the New Haven’s technology the PRR’s conservative management instead chose the proven DC system.

Soon after the New York terminal project was completed, engineering forces turned their attention to a major traffic bottleneck in the PRR’s corporate home of Philadelphia. Broad Street Station, built by the Wilson Brothers in 1881 and expanded by Frank Furness in 1892-93 was a 16-track stub ended terminal that was situated in the city center directly across from city hall. Broad Street saw a host of trains including commuter and long distance trains that stopped, terminated or originated here; because of the nature of a stub end terminal and a lengthily and congested reverse move to the engine facilities west of the Schuylkill River, trains faced a host of delays limiting Broad Street’s capacity and efficiency. In order to ease congestion the PRR turned to engineering consultant Gibbs & Hill to develop a solution utilizing electric traction, but this time with AC propulsion. Now several years into the New Haven’s electrification the PRR could capitalize on their triumphs while incorporating technological advances to perfect the new installation. A simplified infrastructure and commercial power purchased from Philadelphia Electric made AC propulsion very economical over DC which required the railroad to construction dedicated power plants. With a supply agreement in place the PRR and Philadelphia Electric could easily expand the network over the next several years, sharing the power generation expansion cost with other commercial and industrial customers.

The western terminus of the 1915 electrification was Paoli, Pennsylvania just 20 miles west of Broad Street Station. Here in a modern view we look west toward the interlocking tower and former shop facility used to service the MP54 MU cars. Telltale details of the 1915 electrification include both the lattice style and tubular trolley poles that support the catenary system. Note: This photograph was taken with Amtrak permission under watchman protection, the author does not condone any type of trespassing on railroad or private property.

The western terminus of the 1915 electrification was Paoli, Pennsylvania just 20 miles west of Broad Street Station. Here in a modern view we look west toward the interlocking tower and former shop facility used to service the MP54 MU cars. Telltale details of the 1915 electrification include both the lattice style and tubular trolley poles that support the catenary system. Note: This photograph was taken with Amtrak permission under watchman protection, the author does not condone any type of trespassing on railroad or private property.

The initial phase of electrification would be a costly investment due to the complexities of the Philadelphia Terminal’s trackage.  Once completed however, it could not only support electrified Paoli service but also main line service to Wilmington, Trenton, the West Chester Branch and Chestnut Hill branch freeing up valuable terminal space while maximizing the benefit of the initial cost. Power would be supplied by the Schuylkill River generating station and transmitted across the river to the Arsenal Bridge sub-station then on to the West Philly, Bryn Mawr and Paoli sub-stations. Here the 25 cycle 44,000 volt single phase power would be stepped down to 11,000 volts and fed to trains via overhead trolley lines supported by cable suspension supports strung between tubular steel trolley poles. The route to Paoli was 20 miles in length and electrification included wiring a coach yard and service facility in the West Philadelphia shops as well as a new facility in Paoli, a total of roughly 93 miles of track. Initially limited to just the Paoli commuter runs the electrification would power some 80 plus trains a day while affording an 8% overall increase in capacity at Broad Street. Though this seems like a small advantage for such a significant investment, the PRR looked to the future making this the first of several steps to dramatically increase capacity by expanding electric operations off the initial hub.

Two of the original sub-station buildings still survive along the main line at Bryn Mawr (L) and Paoli (R). Note to the right of the Paoli sub-station the vacant land which was the location of the Paoli shops.

Two of the original sub-station buildings still survive along the main line at Bryn Mawr (L) and Paoli (R). Note to the right of the Paoli sub-station the vacant land which was the location of the Paoli shops.

While planning, design and construction of the Paoli electrification was taking place, the PRR turned to the proven class P54 steel coach that was already in production. Though only a basic coach design the PRR had incorporated provisions in the plans to accommodate electrification and operating components when it was time to develop a fleet of self-propelled multiple unit (MU) cars. These motorcars would largely makeup the initial fleet of the PRR’s electric operations until suitable locomotives were developed to haul long distance trains. Classified as MP54's many were already in electrified service on the Long Island and WJ&S utilizing DC propulsion. The MP54 fleet eventually comprised of over 1400 cars; 480 ran on the PRR proper, 923 on the Long Island Railroad and 18 on the WJ&S /PRSL, some of which outlasted the PRR itself, remaining in operation through 1981.

Detail of the Union Switch & Signal interlocking machine at Paoli tower. Though still in service the interlocking plant here and the facility's importance has been greatly reduced with the elimination of the shops. The model board reflects the abandoned #2 and #3 main tracks west of the interlocking.

Detail of the Union Switch & Signal interlocking machine at Paoli tower. Though still in service the interlocking plant here and the facility's importance has been greatly reduced with the elimination of the shops. The model board reflects the abandoned #2 and #3 main tracks west of the interlocking.

With the first phase of electrification a success the railroad continued expansion from the Broad Street terminal, next on the Chestnut Hill branch in 1918 and the White Marsh branch in 1924. Concurrent to the expansion of the PRR’s electrified network other notable projects commenced, one of great importance was the Philadelphia Improvements. With heavy construction beginning in 1927 the PRR sought to replace Broad Street Station with a new subterranean station and office tower called Suburban Station and Penn center respectively. All north-south oriented main line trains would utilize a new through station on the west bank of the Schuylkill River called 30th Street Station. East-west trains utilized an upgraded facility out on the main line in North Philadelphia to eliminate the need to reverse out of the terminal to continue after stopping since 30th was actually off the New York-Pittsburgh Main Line. Commuter trains in and out of Suburban would also service 30th Street from a separate upper level reducing the concentration of travelers separating commuter operations from the long distance and regional trains.

Though the massive Philadelphia Improvements took years to complete electrification continued at a rapid rate extending south to Wilmington on the main line including the branch to West Chester in 1928 and north on the main line to Trenton and the Schuylkill Valley Branch to Norristown in 1930 completing the electrification of all Philadelphia region suburban lines. Further studies reiterated the economical advantage of electrification outside the commuter zones for regional and long distance trains between New York, Philadelphia, Washington DC and Harrisburg, prompting PRR president William Wallace Atterbury to close the gaps in electrification beginning late in 1928. Despite the Great Depression the electrification project continued through 1933, completing the retrofit of the New York Terminal for AC traction and finishing catenary work to complete the network to Wilmington and Paoli. Understanding that Wilmington would not be a suitable southern terminal for electrification, catenary was pushed south to Washington DC including Potomac Yard, financed by a $70 million loan secured from depression era federal recovery programs. Beginning in January of 1934, various reports say up to 20,000 men went to work, comprising of furloughed railroad employees and new hires in the electrical / construction trades to complete the electrification of the New York – Washington DC main line, which opened for business on February 10th 1935. As a result of the success on the north-south “corridor” the PRR sought to complete electrification from the eastern seaboard west to the Harrisburg terminal including all associated freight and passenger main lines. Work commenced on the Low Grade from Morrisville to Enola, the main line from Paoli to Harrisburg, the Columbia Branch and Port Road. Completed in 1938 the entire electrification created a powerful conduit that put the railroad in an excellent position to handle the impending pressure of wartime traffic demands.

View looking east at the western limits of the Paoli interlocking plant. Number 2 and 3 track mains (center tracks) are basically stub end sidings here used occasionaly for track and maintenance equipment. The surviving infrastructure of the electrification reflects various generations of expansion including the massive singnal bridge, tubular trolley poles and the sub-station. This would have been some of the western most electrified trackage until the 1938 expansion to Harrisburg.  Note: This photograph was taken with Amtrak permission under watchman protection, the author does not condone any type of trespassing on railroad or private property.

View looking east at the western limits of the Paoli interlocking plant. Number 2 and 3 track mains (center tracks) are basically stub end sidings here used occasionaly for track and maintenance equipment. The surviving infrastructure of the electrification reflects various generations of expansion including the massive singnal bridge, tubular trolley poles and the sub-station. This would have been some of the western most electrified trackage until the 1938 expansion to Harrisburg. Note: This photograph was taken with Amtrak permission under watchman protection, the author does not condone any type of trespassing on railroad or private property.

The electrified infrastructure of the PRR Main Line has remained visibly the same over the ensuing decades despite modifications and renewal. Surviving the Pennsylvania Railroad, Penn Central, Conrail and Amtrak the sub-stations, tubular catenary poles and surviving interlocking towers remain along with many original station buildings preserving the character of the Main Line, a name synonymous not only with the railroad but towns along the route to Paoli. As Amtrak continues to renew their electric traction system the original details of the 1915 electrification, now part of the successful Keystone Corridor could be on borrowed time. There are plans being developed that would call for a total replacement of the 1915 era catenary system. The construction of larger modern support towers similar to those found on the Northeast Corridor will allow Amtrak to move feeder and transmission lines to the railroad right of way much like later phases of electrification did. For now while you ride the Paoli Local or one of Amtrak’s Keystone Service trains take note of the historical infrastructure that survives, that infrastructure around you was part of the one the most ambitious and successful railroad electrification projects in the world!

Preserving the legacy of the Pennsylvania Railroad

At the close of 2014 the Greer Family donated a remarkable piece of Pennsylvania Railroad history in the form of an oversized album of large format photographs made by Frederick Gutekunst (1831-1917) a native of the Germantown section of Philadelphia. Operating out of a studio at 7th and Arch Streets for more than 50 years Gutekunst was considered one of the preeminent photographers in the post-Civil War era. Some of his subjects included noteworthy people like Thomas Eakins and Walt Whitman but also extended beyond portraiture to include architecture and the built environment of the PRR. Before this album surfaced most examples of his work were in the form of stereo views, making this collection of 16x12” large format prints incredibly rare.

Plate 61, Allegheny Tunnel, Galitzen, Pennsylvania. One of 91 beautiful images from the Album of Frederick Gutekunst's photographs recently donated to the Library Company of Philadelphia by the Greer family. Image collection of Library Company of Philadelphia

Plate 61, Allegheny Tunnel, Galitzen, Pennsylvania. One of 91 beautiful images from the Album of Frederick Gutekunst's photographs recently donated to the Library Company of Philadelphia by the Greer family. Image collection of Library Company of Philadelphia

The portfolio, dating from ca. 1875, titled simple “Scenery of the Pennsylvania Railroad” represents one in a series of campaigns the PRR embarked on to celebrate the railroad as a destination, touting the freshly manicured railroad dissecting the wilds of Pennsylvania, following serpentine rivers, paralleling the canals the road made obsolete; a symbol of modern engineering and progress in America. Fittingly the railroad chose photography over traditional illustrations and paintings, providing a tangible image which potential travelers could connect to, a portal into the world of the PRR and the landscape it traveled. Like his contemporary William H. Rau, Gutekunst utilized the large plate view camera to portray the growing railroad as the country recovered from the American Civil War. This remarkable portfolio illustrates the Pennsylvania Railroad before the grand system improvements started under Chief Engineer William H. Brown and his successors, which would last from the late 1870’s well into the first decade of the 20th Century.

On the Conemaugh at Lockport, Pennsylvania, by Frederick Gutekunst. Up until the PRR portfolio surfaced, much of Gutekunst's work for the PRR was only known to exist in stereo views like this. Image collection of Library Company of Philadelphia.

On the Conemaugh at Lockport, Pennsylvania, by Frederick Gutekunst. Up until the PRR portfolio surfaced, much of Gutekunst's work for the PRR was only known to exist in stereo views like this. Image collection of Library Company of Philadelphia.

What makes this donation even more special, especially to PRR preservationists is that we owe a great debt of gratitude to a former Pennsylvania Railroad employee for having the foresight and pride in his employer to save the portfolio.

David St. John Greer, was born in Philadelphia in 1914, his father a laborer and his mother a seamstress. Settling in New Jersey, David completed high school in Pemberton, NJ and enrolled in a 4-year business administration program at Drexel University. Graduating from Drexel in 1937, Greer would begin a 32-year career with the Pennsylvania Railroad. Though the details of his early years with the company are limited, in 1943 despite being exempt as a railroad employee to serve during WWII, he felt compelled to serve his country and enlisted in the Navy. Greer was never deployed in active war but was appointed as the Assistant Supervisor of Exports for the PRR Port of Philadelphia and later served as the District Property Transportation Officer in the Port of Philadelphia Customs House while also acting on the Ports Conditions Committee. Greer was released from active duty in January of 1946 as a Lieutenant returning to his civilian job with the PRR. Over the next 11 years Greer worked all over the system as a Supervising Agent for important terminals like Williamsport, Harrisburg, the company piers of New York, and Philadelphia. In 1953 he was promoted to Superintendent of Stations in the Pittsburgh Region and later the Chicago area from 1955-57. By the end of 1957 Greer was promoted to Manager / Director of Freight Stations and Motor Service on the entire system, responsible for all stations and trucking companies owned by the PRR. In 1968, the fateful year long time rivals PRR and NYC merged Greer was appointed Director of Stations system wide where he served just one short year, deciding that he could no longer work for the merged railroads.

David St. John Greer, pictured here in the center of the middle row (dark suit) was a devoted Pennsylvania Railroad employee who purchased the Gutekunst album after the ill fated merger of the PRR and rival New York Central in 1968. After being in their possession for over 45 years the Greer family decided to donate the album to the Library Company of Philadelphia where it will  join a sizable collection of Gutekunst's work along side the William H. Rau commissions for the PRR. Image courtesy of the Greer Family.

David St. John Greer, pictured here in the center of the middle row (dark suit) was a devoted Pennsylvania Railroad employee who purchased the Gutekunst album after the ill fated merger of the PRR and rival New York Central in 1968. After being in their possession for over 45 years the Greer family decided to donate the album to the Library Company of Philadelphia where it will  join a sizable collection of Gutekunst's work along side the William H. Rau commissions for the PRR. Image courtesy of the Greer Family.

During that last year, the PC worked to wipe the slate of documents and ephemera from the PRR archives offering items for sale to employees and later holding public auctions. It was here that Greer purchased the Gutekunst Album along with a number of other pieces of PRR memorabilia. Greer’s son, David, recalls, “My father loved the PRR and hated the merger. He particularly loved freight operations. He worked in places that included many of the locations in Pennsylvania pictured in the [Gutekunst] photographs and felt a close kinship to the railroad and the state of Pennsylvania. He took good care of the album but would occasionally sit and look at the photos much as I have done for the past twenty years.” David’s father gifted many of the other items he purchased at auction after his retirement, but held on to the album of photographs. “I think it is telling he kept the photographs, clearly the most valuable piece of railroad memorabilia he had. He also kept things that I think reminded him of the good times on the railroad. As an example he kept and displayed the menu from his dinner on the last run of the all Pullman Broadway Limited. The train crew signed the menu and he kept it along with some of the serving pieces that were used for this dinner. I think he felt that the end of the Broadway Limited was the end of an era. He flew to Chicago on business so that he could ride home on the Limited’s last eastbound trip as an all Pullman train, disembarking at Paoli near his home.”

Survived by his daughter Ann Hiros and son David Greer, David St. John Greer passed in December of 1993, leaving the album among other items with the family. In late 2013 I had heard about the album surfacing through PRRT&HS archivist Charlie Horan and in March of 2014 had the pleasure of meeting David on a train trip to Pittsburgh riding the Juniata Terminal Company PRR 120 and the Warrior Ridge (A Ride on the Pennsylvania). Dave expressed his interest in donating the album to a place that not only could care for it properly but also make it accessible to the public. Given my experience with the Rau collection housed at the Library Company of Philadelphia I suggested that David consider the institution, not only because of Gutkunst’s Philadelphia connection but also because of the existing collection of his work already at the LCP. It would also bring together two very important collections of photography that focused on the Pennsylvania Railroad from the 19th Century. At the close of 2014 the Greer family ultimately decided the album belonged in LCP’s permanent collection, adding to an incredible archive of 19th Century prints and photographs. We are lucky to have this resource preserved where it will ultimately be digitized for many future generations to enjoy in the honor of David St John Greer and photographer Frederick Gutekunst.

Happy Holidays from Michael Froio Photography

Web_Froio.SFbranch

Friends, As 2014 winds down and we are amidst the holiday season I’d like to take a moment to thank everyone for all the wonderful words and support. Between formally becoming a small business owner, commercial commissions, lectures, curating an exhibition, writing, research and making photographs for the Main Line Project it has been a truly amazing year. I look forward to taking the final days of 2014 to reflect on the year and spend some much-needed time with the family. Looking forward to 2015 there is a number of events on the horizon,more information will follow after the start of the New Year. I have taken a moment to assemble here some of my favorite holiday posts from years past, enjoy and happy holidays from my family to yours!

Sincerely,

Michael Froio

Holiday Traditions: Story of the Night before Christmas Paintings by PRR employee William W. Seigford Jr.

This time of year, family and friends come together to celebrate the holidays with traditions developed over generations. As a part of our family tradition I have the pleasure to read to my children on Christmas Eve as my father did before, the fabled poem, The Night Before Christmas by Clement Clark Moore. First published anonymously in December of 1823, it is now the tradition in many American families to read the poem on Christmas Eve.

The story and illustrations presented here were made in 1953 by Pennsylvania Railroad employee, William W. Seigford Jr. who maintained an office at the Harrisburg Passenger Station. They were displayed in the station during the Christmas season alternating with other decorations for several years until Seigford was transferred to Cincinnati in 1956. The paintings were never displayed in Cincinnati but remained in Seigford’s possession until he retired from Penn Central as General Foreman of Passenger Locomotives and Cars in July of 1974. After retirement he returned to the Lancaster area and subsequently donated the paintings to Amtrak’s Lancaster Passenger Station for display during the Christmas season. Surviving the Pennsylvania Railroad and Penn Central, all 12 original paintings hang proudly in the beautiful 1929 waiting room under the watchful eye of Amtrak employees Richard Peiffer and Donna Whitney, who facilitated the making of these reproductions for future preservation.

I would like to acknowledge Mr. William (Bill) L. Seigford for his help on this post as well as his continued support on the Main Line Project, his knowledge and generosity have been a invaluable resource.

The Lionel Corporation: Model Railroad Icon of the Holiday Season

Page 12-13 of Lionel's 1947 product catalog illustrating the deluxe train sets # 1447WS and 1459WS featuring accessories including the log dump car and working cattle pen. Note the locomotive which is modeled after the PRR's failed S2 steam turbine locomotive, which ironically Lionel produced more of than the Juniata Shops!  Original 1947 catalog collection of the author.

Page 12-13 of Lionel's 1947 product catalog illustrating the deluxe train sets # 1447WS and 1459WS featuring accessories including the log dump car and working cattle pen. Note the locomotive which is modeled after the PRR's failed S2 steam turbine locomotive, which ironically Lionel produced more of than the Juniata Shops!  Original 1947 catalog collection of the author.

With modest beginnings Joshua Lionel Cowen and Harry C. Grant founded the Lionel Corporation in 1900, building model trains for retail window displays to help draw consumers to their stores. In 1906 the company responded to the increasing demand for the electric trains in the consumer market and developed its trademark three-rail “standard gage” track to simplify wiring and use of accessories.  By 1915 Lionel would supplement the large standard gage with the budget minded O scale which would later become the standard size of their product lines. Lionel’s use of sharp advertising was ultimately responsible for tying model trains to Christmas, making them popular presents during the holidays, establishing traditions that survive today.  By WWI Lionel was one of three major US manufactures of toy trains, surpassing competitor Ives as the market leader by the 1920’s. Lionel’s growth and aggressive ad campaigns further led to Ives' bankruptcy in 1928.

Lionel 027 gage locomotives and tenders! No Lionel layout was complete with extra motive power, this includes many Pennsy inspired locomotives lettered in both the classic Lionel Lines and PRR. Original 1947 catalog collection of the author.

Lionel 027 gage locomotives and tenders! No Lionel layout was complete with extra motive power, this includes many Pennsy inspired locomotives lettered in both the classic Lionel Lines and PRR. Original 1947 catalog collection of the author.

Like many other companies, the Great Depression would be a severe detriment to Lionel’s business, as a result their 1927 operating profit of over $500,000 plummeted to $82,000 in 1930, and ultimately a loss in 1931 of over $200,000 putting Lionel into receivership by May of 1934. A product credited with saving Lionel during the Depression era was a wind up hand car featuring Mickey and Minnie Mouse which Lionel sold well over 250,00 units providing the cash flow to keep the company from closing.

"From the Ranch Lands and Dairy Country!" Lionel was well known for there operating accessories including the Cattle Car and Milk cars both which were accompanied by track side platforms for loading and unloading. Original 1947 catalog collection of the author.

"From the Ranch Lands and Dairy Country!" Lionel was well known for there operating accessories including the Cattle Car and Milk cars both which were accompanied by track side platforms for loading and unloading. Original 1947 catalog collection of the author.

In 1942 Lionel ceased toy production to produce items for the United States Navy during World War II. Regardless of the lack of toy train production, the advertising department pushed heavily to urge American teenagers to start planning their post-war layouts. By late 1945 Lionel resumed production, replacing their original product lines with more realistic trains and accessories exclusively in O Scale. Considered by many aficionados as the golden years, 1946-1956 saw sales soaring with new items including the famous Santa Fe Warbonnet EMD F3 locomotives as well as the Pennsylvania Railroad GGI and experimental S2 steam turbine locomotive. During the 1950s Lionel would tout its short-lived title of largest toy manufacturer, out selling American Flyer almost 2:1. After 1955 sales declined steadily with the rising popularity of the smaller but more realistic HO Scale and to many the end of the true “Lionel era” was in 1959. Over the years Lionel was diversified unsuccessfully and the name survived in different ways including retail toy outlet Lionel Kiddy City. Today the Lionel name remains the most famous name in model trains, though not associated with the original corporation, Lionel LLC owns most of the product rights and trademarks continuing the legacy started by American businessmen Joshua Lionel and Harry Grant well over 100 years ago.

Holiday Travel: A vintage add from the Pennsylvania Railroad

prr_night-beforexams

William H Brown: The Tale of Two Bridges

In a beautiful image by William H. Rau we see the Conestoga River bridge, one of Brown's first stone bridges. Utilizing the figure and boat as a device for scale in the foreground Rau is looking south, as noted by the finished facade of the bridge. To the left out of view is the Lancaster Water Works which still survives today. Photograph collection American Premier Underwriters, Inc.

In a beautiful image by William H. Rau we see the Conestoga River bridge, one of Brown's first stone bridges. Utilizing the figure and boat as a device for scale in the foreground Rau is looking south, as noted by the finished facade of the bridge. To the left out of view is the Lancaster Water Works which still survives today. Photograph collection American Premier Underwriters, Inc.

In 1881 a rising figure in the Pennsylvania Railroad by the name of William H. Brown was promoted to chief engineer. At 45 years old the Lancaster County native had 31 years under his belt working his way from a rod man on a survey crew in 1850 to the top of one of the most ambitious engineering departments in the railroad world. Brown had a reputation for knowing every grade, curve and crossing on the PRR. As chief engineer his tenure was likely one of the most notable in the transformation of the Pennsylvania Railroad’s physical plant during the 19th and early 20th centuries, implementing various programs of improvements up until his retirement in 1906. According to his obituary in the New York Times he, “made 133 changes and revisions to the Main Line, built fourteen elevated railways through cities, forty-one tunnels, and 163 stone bridges, including [the world's largest] Rockville stone bridge.” The last point was perhaps one his more notable achievements and certainly one of the most recognizable today; the stone masonry arch bridge.

The connection between Brown's first two stone bridges are linked to various correspondence in the planning stages for both locations. Born from the endorsement of stone bridges during the four track expansion, they diverged at the time of design. The Conestoga is two tracks with provisions for expansion (note protruding stone work along the arches) the Conemaugh bridge designed and built with four tracks. Both survive today and remain in active service on Amtrak's Keystone corridor and Norfolk Southern's Pittsburgh line respectively. Left detail; Photographer unknown, image courtesy of LancasterHistory.org, Lancaster, Pennsylvania. Right detail William H. Rau, collection of American Premier Underwriters, Inc.

The connection between Brown's first two stone bridges are linked to various correspondence in the planning stages for both locations. Born from the endorsement of stone bridges during the four track expansion, they diverged at the time of design. The Conestoga is two tracks with provisions for expansion (note protruding stone work along the arches) the Conemaugh bridge designed and built with four tracks. Both survive today and remain in active service on Amtrak's Keystone corridor and Norfolk Southern's Pittsburgh line respectively. Left detail; Photographer unknown, image courtesy of LancasterHistory.org, Lancaster, Pennsylvania. Right detail William H. Rau, collection of American Premier Underwriters, Inc.

Two of the earliest spans Brown designed for the Main Line were the crossing of the Conemaugh River in Johnstown and the Conestoga in Lancaster. Though bid separately both were originally to be constructed utilizing iron truss spans until Pittsburgh Division superintendent Robert Pitcairn endorsed the use of stone to Brown instead. Touting stone’s strength, durability and its abundant supply on the PRR, the stone bridge would be a long term solution, able to support the growing traffic and heavier trains the PRR was becoming accustomed to. It was there that the course divided for the two bridges. The Conemaugh bridge was built as planned with four tracks and the first to prove Pitcairn’s endorsement true surviving the wrath of the great flood of 1889 just a year after its completion.

With bridge renewals a major part of the program to expand the PRR’s trademark four track main line across the state of Pennsylvania, the Brandywine Creek bridge in Coatesville and the Conestoga bridge in Lancaster were the last remaining two track spans west from Philadelphia. As discussed previously, the Lancaster terminal was also a choke point in the movement of traffic necessitating the construction of the Lancaster Cut-Off. Just to the east of the junction of this new route with the old main was the Conestoga River, a 61-mile tributary of the Susquehanna. The crossing of the Conestoga saw several successive bridges built for the railroad; the first a 1400’ long series of wood lattice truss spans dating from the P&C which was consumed by fire and later replaced with a fill and a shortened series of iron Whipple trusses around the Civil War. Though Brown had considered another iron design for Conestoga in 1887 its design ultimately followed the fate of the Conemaugh bridge, choosing to use stone instead. Though initial correspondence suggests the Conestoga bridge was to be a four-track span, costs and traffic levels dictated a compromise in design, building a two-track span with provisions in place for expansion. As a result the five arch, 329’ long stone masonry bridge was constructed with foundations to support a four track span. In addition, contractors left stones protruding from the southern side of the bridge, which would allow for any expansion to tie into the existing structure when demand necessitated. Completed in 1888 traffic grew through the next decade but plans were on the horizon that would direct freight off the main line to a new dedicated low-grade from Atglen to Columbia, by-passing Lancaster all together. Though the span in Coatesville was replaced in 1906 to support the combined traffic demands east of Atglen the Conestoga bridge was never expanded, nor was the main line between Lancaster and Royalton since the PRR now had three two-track routes for both freight and passenger moves via the Main Line, Atglen & Susquehanna low grade and the Columbia branch.

Today many of Brown’s bridges are still in service without remark; the only exception of course is Shock’s Mills, which partially failed during Hurricane Agnes in 1972. Building like the Romans for an empire in the transportation world, Mr. Brown and other people like him on competing railroads represented the pinnacle of engineering, design and forethought that built the United States and are largely responsible for the rail networks we have today.

New Line: PRR's Lancaster Cut-Off

1912 Sanborn Map Illustrating the addition of the Lancaster Cut-Off which would divert traffic away from the PRR's congested Old Main through the city center. Map collection of the Penn State University Library.

1912 Sanborn Map Illustrating the addition of the Lancaster Cut-Off which would divert traffic away from the PRR's congested Old Main through the city center. Map collection of the Penn State University Library.

Opening in 1883 the Lancaster Cut-Off was part of a series of main line improvements to eliminate excessive grades, traffic congestion and operational issues associated with the original main line through downtown Lancaster. Under the direction of chief engineer William H. Brown a two-track bypass running along the city’s north side was constructed between Dillerville and an interlocking named CG where it joined the existing main line just west of the Conestoga River. Though originally designed to divert only through trains away from Lancaster the improved line became the preferred routing because of the continuing problems operating through the busy city center. As a result service to the station on Queen Street declined, stirring complaints from city officials who demanded better passenger rail service.

Interior view of the concourse bridge waiting area in the 1928-29 passenger station that replaced the antiquated Queen Street station facility on the Old Main.

Interior view of the concourse bridge waiting area in the 1928-29 passenger station that replaced the antiquated Queen Street station facility on the Old Main.

Complaints continued well into the 20th century until city officials and the PRR began negotiations for a new passenger station to be located on the Cut-Off. Construction of the new facility began in August of 1928 and was dedicated dedication on April 27th of 1929. Situated between Lititz Pike and North Prince Street the beautiful brick and limestone colonial revival styled station featured a second floor waiting room with large arched windows and limestone walls. A concourse bridge over the main line connected the waiting room with 2 high level platforms while baggage was moved via a subterranean tunnel and elevators from the neighboring express building located immediately west of the station.

This plate drawing of the consolidated CORK interlocking plant circa 1963 illustrates the expansiveness of the consolidated territory which was once controlled be three separate towers. Plate drawing collection of  The Broad Way.

This plate drawing of the consolidated CORK interlocking plant circa 1963 illustrates the expansiveness of the consolidated territory which was once controlled be three separate towers. Plate drawing collection of The Broad Way.

The construction of the new facility also necessitated additional track capacity since the old line would be largely abandoned after this project was complete. Sidings and runners were added to the two main tracks through the station complex. A new interlocking tower aptly named Lancaster controlled the new station trackage in addition to consolidating three existing interlocking towers: DV (Dillerville) - junction with the Old Line, Cut-off, Columbia branch and H&L to Harrisburg, CG (Conestoga) junction of the old main, cut-off and main line east and ES - junction with the New Holland Branch and end of the four track main line just east of the Conestoga bridge. Later renamed Cork this standard design tower of the Depression era was constructed of brick with a copper clad bay and hip roof. Inside the tower a 67 lever Union Switch & Signal Model 14 interlocking machine controlled the expansive physical plant.

As built the Lancaster Cut-Off was intended to bypass traffic that did not service the City of Lancaster, today the route is the sole surviving main line for Amtrak and Norfolk Southern operations based out of Dillerville. On the east end of the Cut-Off the grade of the Old Line can be spotted at former CG interlocking where the two lines split. (L) In the brush to the left you can make out the diverging path of the Old Main in the gap in the trees. (R) The expansive area around the main looking east is where the Old Line connected to the Cut-Off and main line east. Just out of view is the Conestoga River Bridge.

As built the Lancaster Cut-Off was intended to bypass traffic that did not service the City of Lancaster, today the route is the sole surviving main line for Amtrak and Norfolk Southern operations based out of Dillerville. On the east end of the Cut-Off the grade of the Old Line can be spotted at former CG interlocking where the two lines split. (L) In the brush to the left you can make out the diverging path of the Old Main in the gap in the trees. (R) The expansive area around the main looking east is where the Old Line connected to the Cut-Off and main line east. Just out of view is the Conestoga River Bridge.

Cork remained operational into the 21st century, during the Keystone Corridor rebuild several revisions to the interlocking simplified the infrastructure in the area pairing out the various control points and retrofitting the old building with new CTC like control boards mounted directly to the old interlocking machine. By the close of the first quarter of 2013 Cork’s local control was cut-over to Amtrak’s centralized dispatching center in Delaware, ending 84 years of continual service under three different railroads. Despite the loss of CORK the PRR passenger station continues to serve the city of Lancaster  undergoing a slow and expensive renovation that will renew its facade and interior while adding modern amenities like climate control and new electrical systems. It is unclear to the author if additional retail spaces will be developed in the lower level but the facility seems to be ripe with opportunity for travelers who visit the county seat, home to a vibrant arts and tourism region. Only time will tell what the final development of the Lancaster passenger station will bring but today it continues to serve its intended purpose maintaining the Pennsylvania Railroad's presence in the city of Lancaster.

Dillerville: Lancaster's Western Gateway

Dillerville Junction was a complex interlocking controlling access to several important lines on the PRR in the northwestern corner of Lancaster. This remarkable view looking railroad west from the Lancaster Cut-Off depicts the new line veering off to the right connecting with the H&L line to Harrisburg. The old alignment of the H&L into Dillerville and Lancaster still exists and is where Rau's photographic train is sitting behind the interlocking tower. Straight ahead is the connection to the Columbia Branch while the tracks that fan off to the left from that line in the distance  are the original alignment and connection to the Old Main to the Queen Street station. The last line of note through the junction is the single track passing left to right in front of the tower crossing all of the PRR tracks at grade, this was the Reading Company's Lancaster Branch, part of its Reading & Columbia Division which terminated at the foot of North Prince Street. The meticulous landscaping, track and ballast work reflect a railroad that took great pride in their physical plant. Image circa 1888 by William H. Rau, Collection of American Premier Underwriters, Inc.

Dillerville Junction was a complex interlocking controlling access to several important lines on the PRR in the northwestern corner of Lancaster. This remarkable view looking railroad west from the Lancaster Cut-Off depicts the new line veering off to the right connecting with the H&L line to Harrisburg. The old alignment of the H&L into Dillerville and Lancaster still exists and is where Rau's photographic train is sitting behind the interlocking tower. Straight ahead is the connection to the Columbia Branch while the tracks that fan off to the left from that line in the distance  are the original alignment and connection to the Old Main to the Queen Street station. The last line of note through the junction is the single track passing left to right in front of the tower crossing all of the PRR tracks at grade, this was the Reading Company's Lancaster Branch, part of its Reading & Columbia Division which terminated at the foot of North Prince Street. The meticulous landscaping, track and ballast work reflect a railroad that took great pride in their physical plant. Image circa 1888 by William H. Rau, Collection of American Premier Underwriters, Inc.

In 1835 Revolutionary War officer and Sheriff of Lancaster County, Adam Diller founded Dillerville, a one time separate settlement in Lancaster’s northwest corner. In June of the same year Diller would grant the Harrisburg & Lancaster Railroad a 1.5-acre plot to construct a depot. From these meager beginnings Dillerville would develop to become the western gateway of the Lancaster terminal, evolving with continual improvements after the PRR assumed control of the Philadelphia & Columbia and Harrisburg & Lancaster Railroads.

Originally the location where the PRR predecessors split away heading west on their respective routes, DV interlocking as it became known, developed into a far more complex facility with the addition of the Lancaster Cut-Off in 1883. The second know tower in this location was completed in 1884 for the new cut-off utilizing Armstrong levers to control lower quadrant semaphore signals and switch points throughout the junction. This tower was built in the typical style of that era with Victorian details including a slate shingled hip roof and center cupola similar to surviving examples like LEMO tower now located in Strasburg, PA and SHORE at Frankford Junction in Philadelphia. DV was an important facility, directing trains to the Columbia Branch, Old Main, H&L line to Harrisburg and the Lancaster Cut-Off / Main Line east. On either side of the interlocking there were several yards servicing industries on the Old Main and the later plants of Armstrong World Industries and its predecessors. Adding to the complexity of this interlocking was an at grade crossing of the R&C division of the Reading Company who’s Lancaster Branch terminated at the foot of Prince Street in the north west corner of the city.

This view looks west depicting the first tower at Dillerville around 1880. To the left is the Columbia Branch of the former P&C  and to the right is the former H&L to Harrisburg. Note the sign on this early wood frame octagonal switch tower which proclaims an exact distance of 69 and 30/100 miles to Philadelphia and 283 and 70/100 miles to Pittsburgh. Another noteworthy detail is the early signals utilized to govern traffic at the junction. As evident from Rau's photo in 1888 this junction would be greatly reconfigured with the addition of the Lancaster Cut-off. Photographer unknown, image courtesy of LancasterHistory.org, Lancaster, Pennsylvania.

This view looks west depicting the first tower at Dillerville around 1880. To the left is the Columbia Branch of the former P&C  and to the right is the former H&L to Harrisburg. Note the sign on this early wood frame octagonal switch tower which proclaims an exact distance of 69 and 30/100 miles to Philadelphia and 283 and 70/100 miles to Pittsburgh. Another noteworthy detail is the early signals utilized to govern traffic at the junction. As evident from Rau's photo in 1888 this junction would be greatly reconfigured with the addition of the Lancaster Cut-off. Photographer unknown, image courtesy of LancasterHistory.org, Lancaster, Pennsylvania.

In the late 1920s DV interlocking was part of a consolidation project in preparation for the opening of a new passenger station complex on the Cut-Off centralizing several towers into Lancaster Tower, which was later renamed Cork for its proximity to the PRR’s largest freight customer in the city, Crown Cork & Seal (Armstrong). Another component to this improvements program involved partial abandonment of the Old Line retaining only the segment from West Yard to the freight houses on Water Street. Dillerville Yard continued to serve as a local base of freight operations for the diverse manufacturing and agricultural consignees in the city and beyond on both the Main Line and New Holland Branch.

Views looking east and west from the footbridge off Liberty Street in the Dillerville area of Lancaster. (L) Looking west on the Old Main one can see the catenary poles of the Lancaster Cut-Off in the distance coming in from the right. At DV interlocking this line crossed at grade with the Columbia Branch and connected to the former H&L to head west to Harrisburg. (R) Looking east was the remaining segment of the former Old Main which recently terminated at the foot of Mulberry Street and Harrisburg Avenue. Here a bulk transfer trestle, crew base and engine storage area were all recently abandoned when NS completed the new H. Craig Lewis yard part of  the Lancaster Northwest Gateway redevelopment project.

Views looking east and west from the footbridge off Liberty Street in the Dillerville area of Lancaster. (L) Looking west on the Old Main one can see the catenary poles of the Lancaster Cut-Off in the distance coming in from the right. At DV interlocking this line crossed at grade with the Columbia Branch and connected to the former H&L to head west to Harrisburg. (R) Looking east was the remaining segment of the former Old Main which recently terminated at the foot of Mulberry Street and Harrisburg Avenue. Here a bulk transfer trestle, crew base and engine storage area were all recently abandoned when NS completed the new H. Craig Lewis yard part of  the Lancaster Northwest Gateway redevelopment project.

In 2009 Norfolk Southern, successor of PRR operations in the area (through the purchase of Conrail) began a major reconfiguration of Dillerville Yard in order to accommodate the $75 million Lancaster Northwest Gateway Project, which is developing acres of unused brown fields to provide expansion opportunities for both Lancaster General Hospital and Franklin & Marshal College. Earlier this year the last of the remaining PRR era facilities including the pedestrian bridge, trans-load facility and engine terminal were abandoned after NS dedicated new facilities in a yard named after the late H. Craig Lewis state senator and former NS VP of corporate affairs. Part of more than a century of urban renewal the Northwest Gateway Project is the last effort in removing all rail activity from the city center including the industries the railroads once served completing an effort that began in the 1880's with the construction of the Lancaster Cut-Off.

Lancaster Terminal: The Old Main

Postcard view of the ornate Victorian styled PRR station located at N. Queen and E. Chestnut Streets in the city of Lancaster. Collection of the author.

Postcard view of the ornate Victorian styled PRR station located at N. Queen and E. Chestnut Streets in the city of Lancaster. Collection of the author.

Lancaster Old Main: The original main line of the Pennsylvania Railroad made a gentle southern arc from the area of Dillerville in the northwest corner of the city limits to where it crossed the Conestoga in the northeast, intersecting busy streets through the growing city of Lancaster. The line was the combination of routes built by the Philadelphia & Columbia (P&C) and Harrisburg & Lancaster (H&L) railroads. The P&C, part of the state built Main Line of Public Works, was a through route connecting Philadelphia to the east and Columbia to the west. The H&L was an early private venture that terminated in Lancaster connecting the P&C via its own main line directly to Elizabethtown and Harrisburg. Shortly after the charter and beginning of construction on the main line between Harrisburg and Pittsburgh the PRR contracted a 20-year agreement with the H&L in 1848, part of an effort to secure a direct route to Philadelphia. J. Edgar Thompson would accomplished this goal when the PRR finally assumed operations of the P&C in 1857, part of its $7.5 million purchase of the Main Line of Public Works. With the reorganization of both lines into the PRR, traffic patterns west from Lancaster evolved to a pattern familiar to contemporary operations with passenger trains favoring the more direct H&L and the P&C for freight traffic.

1912 map detail showing the congested area surrounding the original alignment of the Philadelphia and Columbia route which became the PRR's original main line through Lancaster. The station was located at Queen and Chestnut Streets (location 25 on the map) and the freight terminal was on the corner of Prince and Walnut Streets (upper left from station). Map collection of the Penn State University Library

1912 map detail showing the congested area surrounding the original alignment of the Philadelphia and Columbia route which became the PRR's original main line through Lancaster. The station was located at Queen and Chestnut Streets (location 25 on the map) and the freight terminal was on the corner of Prince and Walnut Streets (upper left from station). Map collection of the Penn State University Library

After the PRR purchased the P&C it immediately took initiatives to replace primitive station facilities run out of a local inn. The result was a beautiful train shed and station built between Queen and North Christian Streets parallel to Chestnut Street. While a drastic improvement from previous arrangements it would prove to be a stopgap measurement for the fast growing railroad. Larger operational issues existed to the west of the station in a maze of trackage servicing both PRR owned freight houses and numerous industries most of which was at grade with the city streets. Adding to the congestion was the connection to the Quarryville Branch and interchange with the Reading Company’s R&C Division all within the city limits.

Images detailing both the freight terminal and industrial tracks the spurred off the main line (left) and the western view from the passenger station shed looking out on the crossing of N. Queen Street. These images reinforce the complicated and dangerous operating conditions the city and railroad faced on a daily basis. Both images courtesy of LancasterHistory.org, Lancaster, Pennsylvania

Images detailing both the freight terminal and industrial tracks the spurred off the main line (left) and the western view from the passenger station shed looking out on the crossing of N. Queen Street. These images reinforce the complicated and dangerous operating conditions the city and railroad faced on a daily basis. Both images courtesy of LancasterHistory.org, Lancaster, Pennsylvania

Serving as the sole through route into the 1880’s the PRR addressed the limitations of the Old Main by constructing a bypass known as the Lancaster Cut-Off. After the 1883 opening of this new route only trains serving Lancaster navigated the city route. Despite the growth and increasing need for more rail transportation the unfortunate reality was the mighty PRR was diverting more and more trains away from the Queen Street station in favor of the new by-pass. The net result meant mounting political pressure on the PRR from city government to provide residents and visitors improved rail transportation, an issue  that would continue well into the 1920’s. This era marks the beginning of an effort of urban renewal that continues to change how people and the railroads interface with the city of Lancaster. In future posts we will continue the discussion of how and when the PRR diverted operations away from the Old Main and how successors have continued to revise and improve local facilities and operations.

Lancaster's Railroad History | A Brief Overview

The city of Lancaster has a rich and diverse history that began in the late 1600’s as a part of the Penn’s Woods Charter, a 45,000 square mile land grant to establish an English Quaker Colony in the New World. The area of Lancaster would develop and flourish around rich agricultural land and the development of iron forges throughout the 1700’s. As iron production increased the need to develop road networks became necessary to bring in raw materials and transport finished product to market, the Philadelphia & Lancaster Turnpike was one of the first, opening in 1795. Lancaster held the honor of being the state capitol from 1799-1812 and was incorporated as a city in 1818 developing at the crossroads of trade routes connecting Philadelphia with manufacturing centers like Columbia, York, Lebanon and Portsmouth (Middletown).

City of Lancaster, circa 1864. David Rumsey Map Collection.

City of Lancaster, circa 1864. David Rumsey Map Collection.

Early in the first quarter of the 19th Century construction of the Erie Canal put the state of New York at a great  advantage over Philadelphia and the Comonwealth in trade and commerce. In an effort to compete, Pennsylvania would embark on a similar project known as the Main Line of Public Works, an ambitious network that utilized a multimodal system of railroads and canals. While the Erie Canal was in use by 1821, Pennsylvania did not break ground until 1828 and the network was not complete until 1834. What would determine success of these networks was ultimately the topography. The Commonwealth was far more challenging than the water level route of the Erie putting the Main Line of Public Works at a major disadvantage. The Main Line of Public Works  network required multiple transfers to move cargo from train to boat in Columbia, back to train in Hollidaysburg, onto inclined planes to surmount the Alleghenies, and back to boat in Johnstown.  Though the trip was a vast improvement over wagon travel, it was still hampered by logistics and weather. Though woefully under-engineered the only potential success of this network was found on the east end, the Philadelphia & Columbia Railroad which ran the 82 miles between its namesake towns with Lancaster along the way.

Detail of an 1855 map illustrating the Pennsylvania Railroad system and its connections. This map shows the proposed Lebanon, Lancaster & Pinegrove Railroad which was to bypass the Philadelphia & Columbia to gain access to Philadelphia prior to the Commonwealth and the PRR coming to an agreement on the sale price of the failing Main Line of Public Works in 1857. Map collection of the Library of Congress.

Detail of an 1855 map illustrating the Pennsylvania Railroad system and its connections. This map shows the proposed Lebanon, Lancaster & Pinegrove Railroad which was to bypass the Philadelphia & Columbia to gain access to Philadelphia prior to the Commonwealth and the PRR coming to an agreement on the sale price of the failing Main Line of Public Works in 1857. Map collection of the Library of Congress.

The potential success of this new railroad spurred private ventures to construct connecting lines like the Harrisburg, Portsmouth, Mount Joy & Lancaster Railroad (H&L for short) which completed its route in 1838 bypassing the train-boat transfer in Columbia and thus connecting local industry to an all rail route to Philadelphia. Recognizing the overall failure of the Main Line of Public Works the Commonwealth deemed that a private venture should be chartered to construct an all rail route from Harrisburg to Pittsburgh in order to preserve and improve trade and commerce, therefore in 1846 the Pennsylvania Railroad was born. Once the PRR route was complete to Pittsburgh, lines east of Harrisburg including the H&L and P&C became the object of desire for the young railroad striving to complete an exclusive rail network between Philadelphia and Pittsburgh. An operating arrangement was established with the H&L in 1848 leaving one last lynch pin, the now cash starved P&C. The Commonwealth offered the entire Main Line of Public Works system for sale in 1854 but it wasn’t until 1857 that the PRR would agree to purchase the system for $7.5 million, almost a third of the original asking price. This purchase secured the final segment of a wholly owned rail route between Pittsburgh and Philadelphia while also providing the surplus canal right of way that would be crucial to expanding and improving the main line west of Harrisburg. With the potential for increased traffic the railroad began improvements to its main line system, an endeavor that would continue on and off well into the 20th Century. Antiquated facilities in Lancaster were a continuing concern; construction commenced on a new station in 1860, several bridges were improved, the physical plant expanded and finally a by-pass route was built around the congested city center in 1883. By 1904 the main line of the Pennsylvania Railroad from Philadelphia to the Conestoga River was four tracks wide. In Lancaster the complex terminal reduced down from four tracks to two on the east end, splitting twice, once between the old main and the 1883 Lancaster cut-off and again at Dillerville where the old main (former H&L) connected back to the cut-off and the former P&C diverged to Columbia. Though plagued by the two track bottleneck over the Conestoga for some time, completion of the Atglen & Susquehanna branch in 1906 diverted a considerable amount of freight traffic away from Lancaster to the east and the two track Conestoga Bridge would remain as is, adequate to handle the remaining traffic on the main line.

One of many early improvements in the Lancaster terminal area was the stone bridge over the Conestoga River where the main line from the east entered Lancaster. Designed by Chief Engineer William H. Brown and completed in 1887 the two track Conestoga Bridge is unique in its design as the south side was left with protruding stonework to allow for further expansion had the railroad required additional capacity. Though this bridge was an operational bottleneck when the mai nline east was four-tracked subsequent construction of the Atglen and Susquehanna branch alleviated much of the through freight congestion in the Lancaster area.  Image courtesy of LancasterHistory.org, Lancaster, Pennsylvania.

One of many early improvements in the Lancaster terminal area was the stone bridge over the Conestoga River where the main line from the east entered Lancaster. Designed by Chief Engineer William H. Brown and completed in 1887 the two track Conestoga Bridge is unique in its design as the south side was left with protruding stonework to allow for further expansion had the railroad required additional capacity. Though this bridge was an operational bottleneck when the mai nline east was four-tracked subsequent construction of the Atglen and Susquehanna branch alleviated much of the through freight congestion in the Lancaster area.  Image courtesy of LancasterHistory.org, Lancaster, Pennsylvania.



Terminal improvements continued in the 1920’s including the abandonment of the old main and 1860 station in favor of a new passenger station on the cut-off providing expanded train service, the result of political pressure and some gentle encouragement from Armstrong Cork a major PRR customer in Lancaster. Around the same time electrification was sweeping the eastern main line, preparations were being made to modernize area interlocking plants which were centralized to a single tower appropriately named Lancaster (renamed CORK a few years after its construction for the neighboring plant of Armstrong Cork). In 1938 electrification of the Paoli – Harrisburg main line, Low Grade and Columbia branch were complete; Electric locomotives were now hauling the bulk of freight and passenger trains west to Harrisburg, leaving steam and later diesel propulsion to switch sprawling industries scattered about on the remaining sections of the old main, Dillerville area, Quarryville and New Holland branches.

Part of the last wave of Pennsylvania Railroad improvements in the Lancaster area was the 1927 abandonment of the old main line and station through town and the opening of the new passenger station on what was formerly the Lancaster Cut-Off, now essentially the new main line. Further improvements came in 1938 with the completion of the final phase of electrification including the main line from Paoli to Harrisburg, the Low Grade and Columbia branch. Illustrated here in a view looking east is the new station facility and Cork interlocking tower which consolidated control of several interlockings in the Lancaster area. Image collection of the author.

Part of the last wave of Pennsylvania Railroad improvements in the Lancaster area was the 1927 abandonment of the old main line and station through town and the opening of the new passenger station on what was formerly the Lancaster Cut-Off, now essentially the new main line. Further improvements came in 1938 with the completion of the final phase of electrification including the main line from Paoli to Harrisburg, the Low Grade and Columbia branch. Illustrated here in a view looking east is the new station facility and Cork interlocking tower which consolidated control of several interlockings in the Lancaster area. Image collection of the author.

Lancaster and the railroad thrived during the surge of World War II traffic but as peacetime settled in, the PRR began to show its age, left with mounting debts and a worn out physical plant. With a decrease in traffic and increasing competition from trucking the rationing of their physical plant began in the early 1960’s removing two of the main tracks east of the Conestoga Bridge to Parkesburg. Traffic continued to diminish and the ill-fated merger of the NYC and PRR drained cash away from much needed infrastructure improvements. In 1971 Amtrak was created to preserve national passenger train service, on the Harrisburg Line the new company slowly began carving away at money loosing  local, regional and long distance services the PRR once provided. In 1976 Conrail assumed control of freight operations in the Lancaster/Dillerville area which continues to generating traffic from a number of large industrial plants and new distribution warehouses. In the late 1990’s the future of Lancaster’s railroads faced more changes. Conrail was split up by CSX Transportation and Norfolk Southern Corporation, the later which assumed control of Lancaster freight operations. Amtrak’s Keystone Line was designated a high-speed corridor and work slowly began to rebuild the Harrisburg - Philadelphia main line for hourly electrified service once again. In 2008 Franklin & Marshall College and Lancaster General Hospital struck an agreement with NS to develop the land along the former old main that was retained for yard and bulk transfer facilites for the railroad. NS commenced a long-term project to move, reconfigure and expand Dillerville Yard all of which was completed at the close of 2013. Today contractors are removing the remaining traces of the old main changing the local landscape forever. Amtrak’s rebuilding of the former PRR Main Line is largely complete including the tumultuous rehab of Lancaster’s 1929 depot, the streamlining of the physical plant and the closing of Cork tower, one of a few left on the former PRR system. Though the PRR has been absent from the Lancaster area for over 45 years its legacy remains a vital infrastructure to the local economy. Over the next few months we will spend some time exploring the various lines and history of the Lancaster area including current and historic facilities.

The Night Before Christmas


This time of year, family and friends come together to celebrate the holidays with traditions developed over generations. As a part of our family tradition I have the pleasure to read to my children on Christmas Eve as my father did before, the fabled poem, The Night Before Christmas by Clement Clark Moore. First published anonymously in December of 1823, it is now the tradition in many American families to read the poem on Christmas Eve.

The story and illustrations presented here were made in 1953 by Pennsylvania Railroad employee, William W. Seigford Jr. who maintained an office at the Harrisburg Passenger Station. They were displayed in the station during the Christmas season alternating with other decorations for several years until Seigford was transferred to Cincinnati in 1956. The paintings were never displayed in Cincinnati but remained in Seigford’s possession until he retired from Penn Central as General Foreman of Passenger Locomotives and Cars in July of 1974. After retirement he returned to the Lancaster area and subsequently donated the paintings to Amtrak’s Lancaster Passenger Station for display during the Christmas season. Surviving the Pennsylvania Railroad and Penn Central, all 12 original paintings hang proudly in the beautiful 1929 waiting room under the watchful eye of Amtrak employees Richard Peiffer and Donna Whitney, who facilitated the making of these reproductions for future preservation.

I would like to acknowledge Mr. William (Bill) L. Seigford for his help on this post as well as his continued support on the Main Line Project, his knowledge and generosity have been a invaluable resource.

PRR Main Line: Salunga-Landisville

1909 view of NV tower, Landisville station and hotel located at the crossing of the PRR Main Line and Reading & Columbia Branch of the Reading Railroad. Today the tower, R&C and hotel are long gone but the small station behind the tower survives along with the Main Line. Collection of the Lancaster Historical Society

1909 view of NV tower, Landisville station and hotel located at the crossing of the PRR Main Line and Reading & Columbia Branch of the Reading Railroad. Today the tower, R&C and hotel are long gone but the small station behind the tower survives along with the Main Line. Collection of the Lancaster Historical Society

Continuing east on the Main Line we come to Salunga-Landisville in East Hempfield Twp, Lancaster County. The small community’s unique name derives from two sources: Salunga derives from the nearby Chiquesalunga (now Chickies or Chiques) Creek and Landisville coming from the town’s first postmaster John Landis.  The small town was host to the main line of the PRR, which was the former Harrisburg & Lancaster route, as well as the Reading & Columbia a railroad chartered in 1857 to connect the city of Reading with the Chesapeake Bay region by way of the Susquehanna Tidewater Canal in Columbia, PA. Later leased by the Philadelphia & Reading Railway the line was extended into Lancaster City and Marietta, PA providing competition for the PRR in the local iron producing and agricultural regions while offering up to 10 passenger trains a day at its peak.

Interlocking plate drawing for Landis Interlocking circa 1963, note the use of Reading style color light signals protecting the R&C branch. Collection of    The Broad Way    web archive.

Interlocking plate drawing for Landis Interlocking circa 1963, note the use of Reading style color light signals protecting the R&C branch. Collection of The Broad Way web archive.

Landisville was a unique place on the Pennsy because the R&C and PRR routes intersected at grade, something that didn’t exist for much of the modern PRR Main Line east of Pittsburgh. Right in the heart of town the R&C, running perpendicular to the PRR and Old Harrisburg Pike (Main St.) crossed the two-track PRR main line with connecting tracks in the northeast and southwest quadrants of the intersection. The junction was protected by the PRR using an early standard design wood frame  tower similar to Shore and Lemoyne, which was located in the southwest quadrant of the intersection accompanied by a small frame station on the southeast side of the crossing. Located just across the tracks in the northeast quadrant was a railroad hotel providing convenient accommodations for passengers. NV tower named such for  its telegraph call letters eventually gave way as traffic on the R&C diminished and the operator was moved to the station building next door. Landis as it was later known, as was a part time facility, occupied by a freight agent that handled the Reading – PRR interchange traffic and local customers including John Bergner & Sons Company, Keystone Boiler & Foundry and Chiques Milling among others, most of which in support of the local agricultural industry.

(L) The surviving station building later housed the agent/ operator for Landis Interlocking. Immediately in front of the building was the R&C and the tower was situated roughly in the area of the brush in the foreground. (R) One of several warehouses on the PRR just east of the R&C crossing, this one was once used for shipping Lancaster County Broad Leaf Tobacco.

(L) The surviving station building later housed the agent/ operator for Landis Interlocking. Immediately in front of the building was the R&C and the tower was situated roughly in the area of the brush in the foreground. (R) One of several warehouses on the PRR just east of the R&C crossing, this one was once used for shipping Lancaster County Broad Leaf Tobacco.

The agent here was qualified as an operator and was able to control the interlocking, which was usually set to automatic for PRR traffic, to allow a Reading train to cross the main by using a small table top Union Switch & Signal machine that consisted of five levers and three timer run-downs for signals. In a brief conversation with veteran tower operator Don Rittler, he recalls a time working the tower during track maintenance, utilizing the single crossover to divert traffic around work crews. Don lamented about the difficulty understanding the Reading Railroad dispatchers who would call to report an approaching “Buck” the nickname for the R&C local, most of the dispatchers were of German-Dutch descent and often had very thick accents. By 1985 various segments of the R&C were abandoned eliminating the need for the crossing of the PRR and thus Landis was closed. Parts of the R&C route survive including a short segment from the junction at Landisville to the southern border of East Hempfield Township to serve an industrial complex and is operated as the Landisville Railroad.

This surviving segment of the Reading and Columbia branch crosses Main Street in Salunga-Landisville south of the connection with the PRR continuing to the East Hempfield Township line to serve several industries. Today this industrial track is served by Norfolk Southern crews and includes several consignees like the lumber yard immediately behind the photographer.

This surviving segment of the Reading and Columbia branch crosses Main Street in Salunga-Landisville south of the connection with the PRR continuing to the East Hempfield Township line to serve several industries. Today this industrial track is served by Norfolk Southern crews and includes several consignees like the lumber yard immediately behind the photographer.

PRR Main Line: Little Chiques Creek

Plate #68. Bridge Across Little Chiques Creek, Near Mount Joy. Circa 1891-1893 by William H Rau Collection of American Premier Underwriters, Inc

Plate #68. Bridge Across Little Chiques Creek, Near Mount Joy. Circa 1891-1893 by William H Rau Collection of American Premier Underwriters, Inc

Moving east from Mount Joy the Main Line of the Pennsylvania Railroad spans Little Chiques Creek. Originally known as Little Chiquesalunga Creek  which derives its name from the Native American word Chiquesalunga, or crayfish, the creek runs some 20 miles in a southerly direction to join Chiques Creek a mile before it empties out into the Susquehanna River in Marietta.  The two track bridge was constructed in 1885 measuring 450' in length and 40' high, replacing an iron truss span during upgrades to the right of way under William H. Brown. The masonry bridge was unique in construction from Brown's later bridges utilizing brick lined arches and an intergrated countering pier that ran perpendicular to the span. With the special photographic train posed on the bridge, William H. Rau has set his 18x22" view camera up on the bank of the creek looking south (judging by the movement of the water) to capture a bridge that was less than ten years old. This same span continues to serve its intended purpose carrying Amtrak Keystone trains between Lancaster and Harrisburg.

Why Document the Pennsylvania Railroad?

Advertisement circa 1944 illustrating the diversity of areas served by the PRR. Collection of the    John W. Hartman Center for Sales, Advertising & Marketing History   , Duke University Libraries.

Advertisement circa 1944 illustrating the diversity of areas served by the PRR. Collection of the John W. Hartman Center for Sales, Advertising & Marketing History, Duke University Libraries.

To preface the question why document the Pennsylvania Railroad, I would like to quote several excerpts from Fortune Magazine’s 1936 2-part article on the PRR. “Do not think of the Pennsylvania as a business enterprise. Think of it as a nation. It is a nation bigger than Turkey or Uruguay. Corporately it behaves like a nation; it blankets the lives of a 100,000 citizens like a nation…The Pennsylvania is the most powerful off all the railroad nations in the Northern Hemisphere. If all were of its size there would need be only 10 railroads in the US instead of some 200. The Pennsylvania’s revenues are 11% of all railroad revenues. Its employees are 12% off all railroad employees, receiving 11% of all railroad wages…One of every 10 locomotives in the US are owned by the Pennsylvania, as do 13.7 percent of all freight cars, and 15 percent of all passenger cars. A dime of every dollar invested on all railroads has been spent to build the Pennsylvania…Every one hundred tons of freight that moved a mile by rail in 1933, the PRR carried 10 and it carried one passenger of every five. Half the people of the US live in the territory it drains - which is the central east from St. Louis and Chicago to Long Island and the Chesapeake Bay.”

 At the time this article was written the Nation was recovering from the Great Depression, the PRR was in the midst of system improvements including the final phase of electrification on the Eastern Region arteries and we were just a few years away from the Second World War. The Pennsylvania Railroad was about to rise for its final epic performance moving the largest volume of war-time traffic by rail including freight, supplies, troops and even pow’s. The PRR was a well oiled machine, a culture of traditional railroaders brought up from the ranks. Their financial history was studied to exhaustion as one of the largest corporations of its time, paying financial dividends to its shareholders for over 100 years.

Overbrook Station, a commuter stop on Philadelphia's western edge typifies what initially drew me to document the former PRR. Among a historic station, signals and switch towers operates one of the most recently upgraded Amtrak routes in the Northeast, the Keystone Corridor. This route was originally the main line west from Philadelphia and played a big part in shaping the surrounding landscape known locally as "The Main Line".

Overbrook Station, a commuter stop on Philadelphia's western edge typifies what initially drew me to document the former PRR. Among a historic station, signals and switch towers operates one of the most recently upgraded Amtrak routes in the Northeast, the Keystone Corridor. This route was originally the main line west from Philadelphia and played a big part in shaping the surrounding landscape known locally as "The Main Line".

So it seems like there is no contest, why not study a company, a railroad and a culture of this stature? Frankly, my documentation initially had nothing to do with its corporate significance, or how many of miles of track or tons of freight it was responsible for, because all of that was long gone before I had ever heard of the Pennsylvania Railroad. So what was it then, that a kid could have been captivated with so many years ago compelling one later to embark on such an ambitious project to document something that was gone well over 35 years? The simple answer is infrastructure. The ubiquitous GG-1s and tuscan red passenger cars were gone and the fabled giant went down in one of the greatest financial disasters of all time, but the infrastructure, the engineering, the character of visionary railroad men still survived.

The Pennsylvania Railroad made a significant impact on the landscape that few can ignore, for its something millions of commuters, regional and long distance travelers interface with daily, defining rail travel on what is now commonly referred to as the Northeast Corridor.  West of Harrisburg the main line evolved as one of the most important arteries for freight between the Mid Atlantic and Chicago, funneling container, general merchandise and mineral trains east and west. The former PRR main line is a linear corridor of history: linking town, country and city together, illustrating the impact the railroad had on the American landscape.  Along this corridor modern successors operate among relics of the past: stations, interlocking towers, junctions and rail yards that all tell the story of how the mighty PRR once functioned. Despite modern operations many of these relics were built with such forethought that they still play an integral role in operating parts of the nation’s only high-speed rail network and one of Norfolk Southern's most important routes, a nod to PRR's engineering ability. By examining the Pennsylvania Railroad past and present we can begin to understand the evolution of the northeastern American landscape, the railroad and industry of a rich and historic region.

This article is the second in a series of posts that explore the Main Line Project, its origins and methodologies in documenting the former Pennsylvania Railroad.

Mount Joy on the Philadelphia Division

Turn of the century view of the third and final Mount Joy station after the PRR relocated the main line during the system improvements program of the 1890's. Inset image of the 1876 station constructed by the PRR  on the original Harrisburg, Portsmouth, Mount Joy & Lancaster Railroad alignment at Market Street. Inset image collection of the Lancaster Historical Society.

Turn of the century view of the third and final Mount Joy station after the PRR relocated the main line during the system improvements program of the 1890's. Inset image of the 1876 station constructed by the PRR  on the original Harrisburg, Portsmouth, Mount Joy & Lancaster Railroad alignment at Market Street. Inset image collection of the Lancaster Historical Society.

The borough of Mount Joy was established in 1812, its name deriving not from a local geographic feature but the English surname Mountjoy, which was bought to the colonies by settlers from Ireland. Situated in the rich agricultural landscape of western Lancaster County, Mount Joy is flanked by the village of Florin to the west and Little Chiques Creek to the east.

JD020504_copy

In 1836 the Harrisburg, Portsmouth, Mount Joy & Lancaster Railroad began service between Mount Joy and Lancaster with subsequent through service to Harrisburg beginning in 1838 due to delays excavating a tunnel to the west in Elizabethtown. The H&L was a private enterprise founded by James Buchanan and Simon Cameron, both would later rise to important posts in government – Buchanan our 15th President and Cameron the Secretary of War during the Lincoln Administration. The line was initially constructed as a means to connect the Philadelphia & Columbia Railroad with the Cumberland Valley in Harrisburg. The H&L was one of the first private railroads purchased by the PRR, who contracted operation of the company in 1848 establishing a direct route between Harrisburg and Philadelphia (via the P&C at Lancaster) and later purchased the operation outright in 1917.

Surveyors plotted the original route through the heart of Mount Joy approaching from the west, north and parallel to Main Street. Shortly after the arrival of the railroad, agricultural related industry as well as furnaces and manufacturing quickly developed with the promise of connections to distant markets. Initially the H&L operated a passenger station at the corner Main and Barbara streets, part of railroad-operated hotel. It was in this vicinity that the original right of way made a dramatic turn south through the center of town in a congested two block area, crossing almost all east west streets at grade between Barbara and Jacobs Streets, straightening again between Sassafras Alley and East Donegal St and finally crossing Little Chiques Creek on the east end of town.

In 1876 a new wood frame station was constructed at the crossing of Market Street replacing the original H&L arrangement and included enlarged facilities for both freight and passengers and an agent’s quarters. The new station was surrounded by industry like the Philip Frank malting facility and the Brandt & Manning mill, which likely provided materials to the A. Bube Brewery on Market St which survives today as microbrewery and restaurant.

Main Line Improvements of the 1890's

1891 Sanborn Fire Insurance Map of Mount Joy showing the original alignment surveyed by the Harrisburg & Lancaster in the 1830's. In just a few years this route would be relocated to better suit the needs of the Pennsylvania Railroad. Map collection of the Penn State University Library.

1891 Sanborn Fire Insurance Map of Mount Joy showing the original alignment surveyed by the Harrisburg & Lancaster in the 1830's. In just a few years this route would be relocated to better suit the needs of the Pennsylvania Railroad. Map collection of the Penn State University Library.

Like many early railroad grades the existing alignment laid out in the 1830’s was less than ideal for the aspirations of the PRR approaching the end of the 19th Century. Part of the greater system improvements program under Chief Engineer William H. Brown, Mount Joy underwent changes between 1892 and 1896 that would improve rail service and the quality of life for many residents by eliminating grade crossings and the reverse curve through town. The PRR purchased land between Jacob (now W. Henry St.) and West Donegal Streets from Marietta Ave west to the town limits for construction of the new alignment.

1896 Sanborn Fire Insurance Map shows completion of the new line with the old alignment yet to be abandoned.  Map collection of the Penn State University Library.

1896 Sanborn Fire Insurance Map shows completion of the new line with the old alignment yet to be abandoned.  Map collection of the Penn State University Library.

The railroad was built below grade eliminating any road crossings and straightened the line a great deal, a great benefit to the railroad who would eventually use this line primarily for fast moving passenger trains. Though the PRR was known for its four-track system, this line between Royalton and Dillerville always remained two tracks due to most freight being diverted over the Columbia Branch and A&S at Parkesburg.

1902 Sanborn Fire Insurance Map showing the final arrangement including the removal of the H&L alignment east of Barbara Street, the same basic trackage arrangement that survives today. Map collection of the Penn State University Library.

1902 Sanborn Fire Insurance Map showing the final arrangement including the removal of the H&L alignment east of Barbara Street, the same basic trackage arrangement that survives today. Map collection of the Penn State University Library.

With the opening of the new line, the old H&L alignment was abandoned east of Barbara Street with the western half retained to access the numerous industries located on the now stub end spur. The 1876 passenger station remained for many years as an agent office while a replacement station was built on the new main line in 1896. Featuring a design similar to some suburban stations on the Philadelphia Terminal Division’s Chestnut Hill line the new facility had a street level station house with agent quarters and passenger shelters in the narrow cut below at track level.

Remains of the 1830's H&L alignment connects the Spangler's Mill complex to the main line from the west end of town. This mill is served by Norfolk Southern crews based out of Dillerville Yard in Lancaster, PA.

Remains of the 1830's H&L alignment connects the Spangler's Mill complex to the main line from the west end of town. This mill is served by Norfolk Southern crews based out of Dillerville Yard in Lancaster, PA.

In 1938 more change came to Mount Joy when the PRR initiated the final phase of electrification between Paoli and Harrisburg on both the main line and freight routes. Today Amtrak operates the line as part of the New York City- Harrisburg Keystone Service providing limited service at Mount Joy. Both the 1876 and 1896 stations have been lost and at the present time an Amshack bus shelter provides limited facilities for passengers. The county, borough and Amtrak aim to build an improved transportation center in the vicinity of the existing station, part of a plan to redevelop downtown Mount Joy and improve transportation access.  The surviving H&L alignment is now owned by Spangler’s Flour Mill and is serviced by Norfolk Southern Corporation crews based out of Dillerville Yard in Lancaster.

Celebrating Labor Day on the Pennsylvania Railroad

A remarkable PRR system map from 1855 showing the original main line from Harrisburg to Pittsburgh including eastern connections to the Philadelphia & Columbia and Harrisburg & Lancaster Railroad. Note the inscription of Chief Engineer Herman Haupt, who succeeded J. Edgar Thompson when he became the third president of the Pennsylvania Railroad in 1847 where he would remain until his death in 1874. For 27 years as president, Thompson still played a very active role in engineering the PRR from a single track intrastate carrier to one of the most influential and wealthiest railroads in the land. Map created by J.P. & J. Lesley Jr. Topographers, the collection of the Library of Congress.

A remarkable PRR system map from 1855 showing the original main line from Harrisburg to Pittsburgh including eastern connections to the Philadelphia & Columbia and Harrisburg & Lancaster Railroad. Note the inscription of Chief Engineer Herman Haupt, who succeeded J. Edgar Thompson when he became the third president of the Pennsylvania Railroad in 1847 where he would remain until his death in 1874. For 27 years as president, Thompson still played a very active role in engineering the PRR from a single track intrastate carrier to one of the most influential and wealthiest railroads in the land. Map created by J.P. & J. Lesley Jr. Topographers, the collection of the Library of Congress.

September 1st, 1849 marks a day of significant history in the early years of the Pennsylvania Railroad. In 1838 State and Philadelphia officials acknowledged the failure of the Main Line of Public Works and the need for a privately owned all rail route to preserve Philadelphia’s western trade. As a result surveyor, Charles L. Schlatter was sent to the wilds of western Pennsylvania to survey various routes for such a potential venture. Schlatter returned with three options; the one selected would follow the Juniata and Conemaugh Rivers, and by 1845 the legislature was asked to charter such a railroad.

Trimmers Rock, a location along the Juniata Division of the Main Line of Public Works canal system represents the typical landscape of the original PRR main line to Lewistown, loosely following the canal network the railroad later used to improve and relocate its main line alignment. Photograph by William H. Rau, collection of American Premier Underwriters, Inc

Trimmers Rock, a location along the Juniata Division of the Main Line of Public Works canal system represents the typical landscape of the original PRR main line to Lewistown, loosely following the canal network the railroad later used to improve and relocate its main line alignment. Photograph by William H. Rau, collection of American Premier Underwriters, Inc

Much to the dislike of the Baltimore & Ohio Railroad who was attempting to build a line into Pittsburgh, the State Legislature passed an act on April 13th, 1846 incorporating the Pennsylvania Railroad.  The new company recruited J. Edgar Thomson as Cheif Engineer, and by early in 1847, the railroad let contracts to begin construction of the first 20 miles west of Harrisburg and 15 miles east of Pittsburgh, to meet requirements to make the B&O’s Pennsylvania charter null and void. By the end of 1848 more contracts for the grading of roadbed would total 117 miles of right of way west of Harrisburg to Logans Narrows. The anticipated operations to commence between Harrisburg and Lewistown by 1848, however, due to problems constructing the Susquehanna River bridge, the difficulty of obtaining rails fast enough and the overall lack of labor the opening would be delayed for some time.

The surviving main line of the Pennsylvania Railroad owes its success to the years of tireless improvements that all began with the charter to build a privately operated railroad connecting Philadelphia to the west in 1846 opening the route between Harrisburg and Lewistown on September 1st, 1849. The Main Line, looking west, Mifflin, Pennsylvania.

The surviving main line of the Pennsylvania Railroad owes its success to the years of tireless improvements that all began with the charter to build a privately operated railroad connecting Philadelphia to the west in 1846 opening the route between Harrisburg and Lewistown on September 1st, 1849. The Main Line, looking west, Mifflin, Pennsylvania.

The first segment of the Pennsylvania Railroad was completed and open for service providing a connection with the Canal and Turnpike system on September 1st, 1849. Though one of the easier segments of the original PRR construction this important date begins a chapter in rail transportation history that would forever change the landscape of the Commonwealth of Pennsylvania. With much fan fare, the first through train from Philadelphia to Pittsburgh departed On December 10th, 1852 commencing operation on the PRR which has been in continual service since. With the evolution of the PRR’s route in the 19th Century, advancements in technology and engineering the State’s first east west rail line would develop into a conduit of industry and commerce. The very same route that visionaries like C.L. Schlatter and J. Edgar Thomson laid out and successor William H. Brown improved upon survives today as a vital transportation link in the Norfolk Southern rail network, remaining in regular service for over 165 years.

Though for many of Labor Day marks the end of summer, we should all take a moment to acknowledge the countless men and woman that work to keep our rail networks viable, maintaining a transportation system that has been vital to American life for generations. Have a safe and happy Labor Day Weekend!

New Online Article Published for Trains Magazine!

PRR_Johnstown_005

From the Main Line: Exploring Pennsylvania Railroad Rights-of-Way: This project's title, From the Main Line, came to me since I began traveling throughout the Northeast exploring what survives and what developed as a result of the presence of the Pennsylvania Railroad.

The project is the culmination of four distinct interests and their interaction: geography, history, architecture, and a life-long love of railroads. Among other reasons, I chose the Pennsylvania Railroad to satisfy a simple question,"Why would a company consider itself the Standard Railroad of the World?" I am sure many would argue that it was just plain arrogance, but that answer was not good enough. So in 2007 I set out to better understand the former PRR system, examining the various aspects of the railroad to create a cohesive survey of the railroad, its defining attributes and the landscape through which it traveled.

There are several concise topics that combine to create a holistic understanding of a railroad network and its effects on its surroundings. This approach can help one to identify the unique characteristics of any railroad corridor but specifically those that refer to the Pennsy.

This is an excerpt of a newly published web exclusive article with Trains Magazine, a collaboration with the Center for Railroad Photography and Art to bring thoughtful writing and new approaches to the genre of railroad photography. Trains magazine played a big role in my formative years, with a great collection of contemporary industry articles, excellent imagery, and historical pieces and I am honored to be a part of! Please visit the full article and web gallery for more!
