Fire on the Line!

The massive Safe Harbor Bridge was just west of the temporary block station named Fire which was put into service in 1959. The block station and crossovers were located on the A&S Branch up on the embankment pictured here in the top right of the image, the Columbia & Port Deposit Branch is the line in the foreground.

The massive Safe Harbor Bridge was just west of the temporary block station named Fire which was put into service in 1959. The block station and crossovers were located on the A&S Branch up on the embankment pictured here in the top right of the image, the Columbia & Port Deposit Branch is the line in the foreground.

In a previous post, Managing the Line, we detailed the operations of dispatching trains on the Atglen & Susquehanna branch, one particular anomaly escaped the article. Thanks to the work of Abram Burnett who interviewed the late H. Wayne Frey a former PRR Block Operator, I am pleased to share an account of a brief occurrence on the A&S that necessitated an additional block station for a short time.

On Thursday, July 30th, 1959 Philadelphia Region general order No. 710 was put into effect to address a rising situation on the A&S branch just east of the Safe Harbor Bridge over the Conestoga River. Officials and crews discovered settling in the eastbound main (No. 1 Track) the result of an underground blaze ignited by a recent brush fire on the embankment. Officials found that the fill the A&S rode on comprised of dredged material that was suspected to contain river coal making the soil susceptible to fire.

Annotated track chart and General Order No. 710 effective July 30th, 1959 outlining the implementation of temporary block station Fire, Documents from the late H. Wayne Frey courtesy of Abram Burnett.

Officials faced the issue of how to mitigate the situation while keeping trains moving through the area. The railroad installed a set of electric powered crossovers and signals between the compromised No. 1 track and the in-service No. 2 track to create a single-track gauntlet of approximately 700 feet. The railroad established a block station aptly named Fire; In service 24/7, the small wood shack outfitted with four small table interlocking switches (two for switch controls, two for signals) operated around the clock until sometime between February and April of 1961.  The stub-ended sides of the crossovers on No. 1 were retained to house tank cars supplied by Dupont Chemical who was contracted to extinguish the fire. As a means to prevent the situation from compromising the No 2 main track, the railroad drove sheet piles in between the tracks and installed a pipe system to feed the chemicals and water down into the subterranean fire.  Late in 1959, the nearby Susquehanna River was experiencing particularly severe ice jams that impacted the Columbia & Port Deposit Branch located at the bottom of the same smoldering embankment. A road crew on the Port Road brought a train to stop in the vicinity of Safe Harbor due to ice when an underground explosion occurred blowing out a part of the embankment. Fearing the worst the crew jumped from their locomotive. Fortunately, the worst injury was the broken ankle of the engineer, and there was no significant loss of life or property. In the first quarter of 1961, Dupont successfully extinguished the fire, and the A&S resumed normal operations. With No. 1 track rebuilt and the tempory switches and signals removed, the railroad closed its newest block station just shy of two years in existence.



Quarryville | 19th Century Railroading With Big Aspirations

TM Fowler Map circa 1903, illustrating the town of Quarryville. Though construction of the A&S had just commenced in 1903, the line is clearly depicted In the bottom left corner, complete with a connection between the new route and Quarryville Branch that was never constructed. Collection of the Southern Lancaster County Historical Society scanned from Mary Boomsma

TM Fowler Map circa 1903, illustrating the town of Quarryville. Though construction of the A&S had just commenced in 1903, the line is clearly depicted In the bottom left corner, complete with a connection between the new route and Quarryville Branch that was never constructed. Collection of the Southern Lancaster County Historical Society scanned from Mary Boomsma

Quarryville has always been a crossroad of activity in the fertile farmlands of Southern Lancaster County. Farmers purchased lumber, grain, and fertilizer here and reciprocally exchanged their bounties in town and beyond via the local county railroad, a lifeline to the outside world. Commonly known as the Quarryville Branch this rail line had an interesting early history that started with big hopes and ended with financial disaster. The Lancaster & Reading Narrow Gauge Railroad was chartered in 1871 to build a narrow gauge network between Safe Harbor and Reading via Lancaster including a branch to Quarryville, competing directly with the neighboring Reading Company subsidiary the Reading & Columbia.  Before construction commenced it was decided to build the line to standard gauge instead, but the Panic of 1873 quickly stalled progress. Falling into financial distress, the Lancaster & Reading Narrow Gauge Railroad was ironically leased to the Reading Company becoming an extension of its Lancaster Branch, part of the R&C.

A typical PRR train traversing the former Lancaster & Reading Narrow Gauge Railroad between Lancaster and its southern terminus in Quarryville. Walter G. Minnich Jr. collection

A typical PRR train traversing the former Lancaster & Reading Narrow Gauge Railroad between Lancaster and its southern terminus in Quarryville. Walter G. Minnich Jr. collection

With the contract secured for the branch to Quarryville, the Reading looked to another opportunity, the potential of connecting with the B&O mainline by extending south from Quarryville to Elkton, MD, a move that would involve the financially strapped narrow gauge railroad the Lancaster, Oxford & Southern. When presented the idea of becoming a bridge route, the LO&S optimistically commenced plans to build new extensions on its existing route including a new line to Quarryville, with the intention of everything being converted to standard gauge. Once complete perhaps the small common carrier would see financial success or even be purchased at a profit by the Reading or the B&O. The plan, however, began to crumble when the Lancaster & Reading Narrow Gauge Railroad defaulted on their mortgage, rendering the Reading lease null and void, and the property went up for auction in 1900. At the Philadelphia Stock Exchange, a tense bidding war played out between extended representatives of the B&O, Reading Company and PRR. Charles H. Locher, a Lancaster businessman, minor shareholder of the L&RNGR and friend of the PRR attended the auction, outbidding the competition and thus protecting their coveted territory by eliminating the plan for the competitor's line once and for all. Regardless the LO&S completed the branch to Quarryville but the hopes for financial success or being converted to standard gauge were never realized, the railroad toiled in bankruptcy through 1910 scrapping its Quarryville Branch in 1917 with the rest of the railroad ceasing operation the following year.

Quarryville Station, view before the Lancaster Oxford & Southern abandonment in 1917. Note the dual gauge trackage in the foreground, an area shared by the LO&S and the PRR. Image Walter G. Minnich Jr. collection, Southern Lancaster County Historical Society

Quarryville Station, view before the Lancaster Oxford & Southern abandonment in 1917. Note the dual gauge trackage in the foreground, an area shared by the LO&S and the PRR. Image Walter G. Minnich Jr. collection, Southern Lancaster County Historical Society

While the drama of railroad barons and hopes of back-road competition unraveled, another chapter in railroad history was playing out in the small town. The PRR commenced construction of the new Low Grade route across Southern Lancaster County. Situated at the approximate center of the eastern segment of the new Atglen & Susquehanna Branch, Quarryville was the epicenter of construction and staging between 1903 and 1906. Despite the building of the new line, it was very evident that the PRR had no intention to tap the small agricultural market with any additional resources other than the branch it maintained from Lancaster. When construction was completed the A&S cut through the Borough on an elevated fill with little more than a water stop, a telephone box and overpasses over its branch and another on Church Street.

Pennsylvania Railroad track chart showing the grades and curvature of the former Lancaster & Reading Narrow Gauge Quarryville Branch circa 1940.

Pennsylvania Railroad track chart showing the grades and curvature of the former Lancaster & Reading Narrow Gauge Quarryville Branch circa 1940.

For the next half a century the railroads continued to operate separately from one another. As the PRR entered its final year's maintenance on marginally performing branches were often deferred, and the Quarryville Branch was certainly no exception. Entering the Penn Central era, with finances already tight, management looked to shed money-losing lines; the Quarryville Branch made the short list when the Penn Central petitioned the ICC for the abandonment of over 138 line segments in 1971. Making matters worse the branch suffered an even greater blow in 1972 when it sustained significant damage from Hurricane Agnes placing most of the branch out of service.  Regardless, the shippers in Quarryville rallied, seeking a deal with Penn Central, who had estimated that a 1700’ line connection to the A&S would come with a price tag of $130,000 a burden the broken railroad could not afford. Shippers agreed to pay the cost of construction, and the PC withdrew 2.26 miles from the ICC petition, saving the most lucrative piece of the branch and rail service to local shippers. Finally, after 67 years of trains flying over the town, Quarryville had a connection to the A&S, but that too would only last another 15 years.

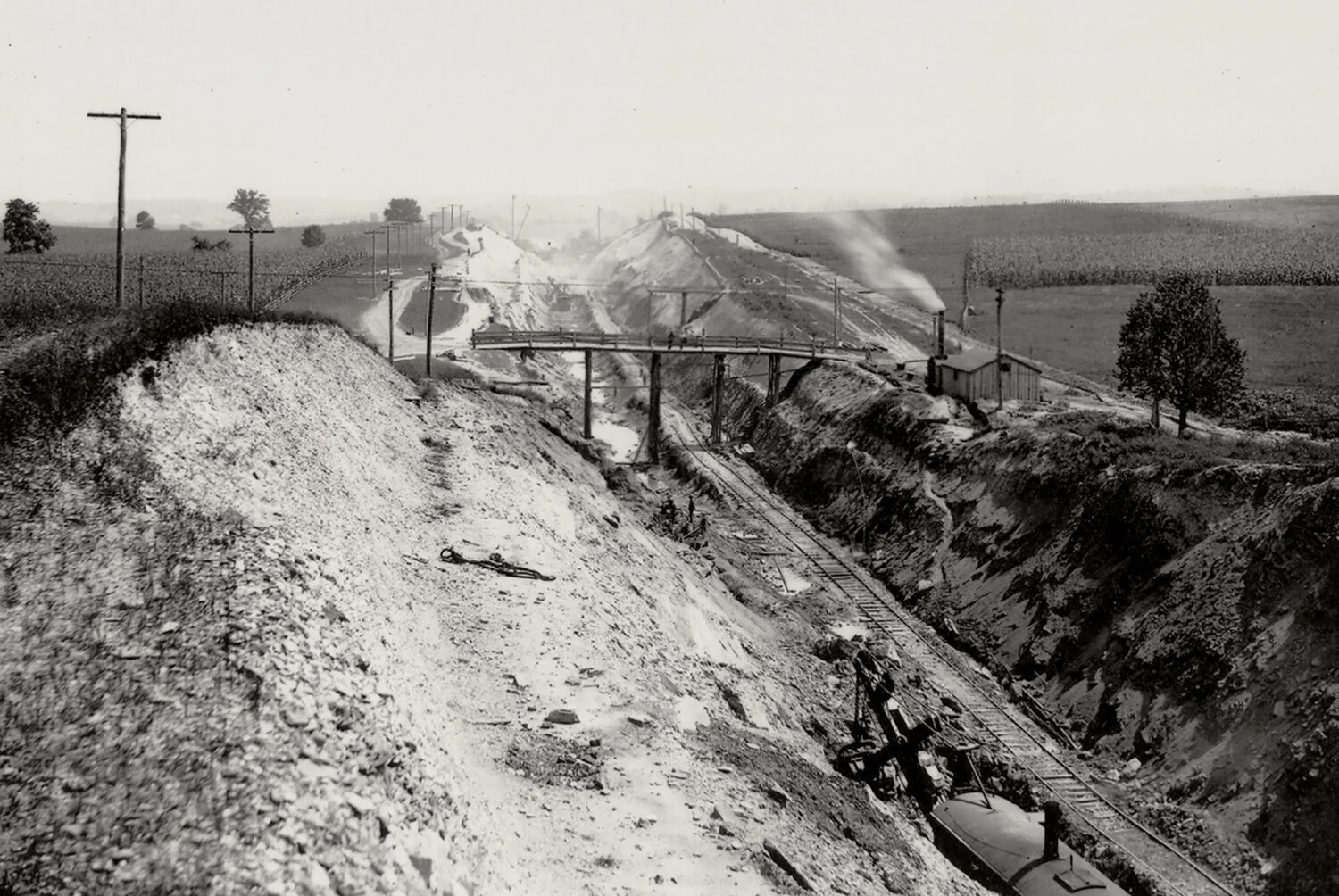

The Engineer And the Contractor

BY 1903 William H. Brown, the man who earned the nickname the stone man for his preference of masonry bridge construction was winding down a rewarding 44-year career with the Pennsylvania Railroad, 32 of which he served as Chief Engineer. Brown's tenure was part of an era that was arguably one of the most transformative times for the PRR's infrastructure and right of way. His role in the construction of the Low Grade, especially the Atglen & Susquehanna segment would be his last major project before reaching the mandatory retirement age of 70. Brown had come full circle in life having been born and raised in the same rolling countryside of Southern Lancaster County where he'd close out an impressive career.

One of seven cuts and a fill illustrated in this Manor Township view in Southern Lancaster County. Chief Engineer, William, H Brown, saw to it that the ablest contractors were employed to complete this challenging work promptly. The Manor section was contracted to Patricius McManus a very accomplished railroad builder and neighbor of Brown. Harry P. Stoner photograph, Kline Collection, Railroad Museum of Pennsylvania, PHMC

One of seven cuts and a fill illustrated in this Manor Township view in Southern Lancaster County. Chief Engineer, William, H Brown, saw to it that the ablest contractors were employed to complete this challenging work promptly. The Manor section was contracted to Patricius McManus a very accomplished railroad builder and neighbor of Brown. Harry P. Stoner photograph, Kline Collection, Railroad Museum of Pennsylvania, PHMC

Throughout Brown's tenure in the Engineering Department, he relied on skilled contractors to undertake the task of completing a project, among them was arguably one of the most prominent railroad builders of the time, the McManus Construction Company.  By the time construction commenced on the A&S, Patricius McManus, president, and general manager had over 37 years of experience managing railroad construction projects.  McManus started his first project for the Sunbury & Lewistown building 11 miles of track at just 19 years old, developing an impressive portfolio of projects including the double tracking of the Reading's Atlantic City Railroad. The PRR also contracted McManus for the expansion and double tracking of the electrified WJ&S line between Camden and Atlantic City via Newfield as well as various components of the Philadelphia Terminal Division including the terminal trackage for Broad Street Station.  Brown and McManus shared a common thread in their lives and careers, coming from similar social circles, rising from humble roots to the upper echelon of society; they were both self-made success stories. Both Brown and McManus lived in the Powelton Village neighborhood of West Philadelphia, for a time as next-door neighbors, an area regarded as the home of the nouveau riche, outcasts from the old blue-blooded money of railroad executives on the fabled Main Line to Paoli.

This cut excavated on the Manor Township section of the Atglen and Susquehanna illustrates the massive scope of ongoing work. The temporary narrow gauge track used to haul some of the 1.3 million cubic yards of debris is evident in the cut complete with a steam shovel at lower right, one of the key pieces of equipment for such work. Harry P. Stoner photograph, Columbia Historic Preservation Society

This cut excavated on the Manor Township section of the Atglen and Susquehanna illustrates the massive scope of ongoing work. The temporary narrow gauge track used to haul some of the 1.3 million cubic yards of debris is evident in the cut complete with a steam shovel at lower right, one of the key pieces of equipment for such work. Harry P. Stoner photograph, Columbia Historic Preservation Society

L. Patricius McManus, Railroad Contractor. R. William H. Brown, Chief Engineer of the Pennsylvania Railroad.

L. Patricius McManus, Railroad Contractor. R. William H. Brown, Chief Engineer of the Pennsylvania Railroad.

When Brown parceled out eight contracts for grading and excavating the A&S in 1903, the engineering department knew that no section would be particularly easy. While some places required less significant work than others the line through Providence Township would be an imposing endeavor requiring the railroad to carve a path through the rolling hills since the local topography offered none. Brown charged McManus to execute this segment; Working west from Quarryville, equipment was brought in on an existing branch line via Lancaster and distributed by temporary trackage, moving in construction materials and supplies. Blasting and steam shovels did the grunt work of digging cuts through the hills, some up to 90' deep. McManus's crew of 300 men excavated some 1.3 million cubic yards of rock and earth creating seven cuts and a massive fill in the roughly 8 miles of line through the Township alone.

Brown closed out his storied career on March 1st, 1906 just shy of the dedication of the A&S on July 27th, but McManus's company would soon be involved with the construction of the Delaware, Lackawanna & Western Cut-Off between Park Summit and Milford, Pennsylvania another remarkable accomplishment of railroad engineering. Though Brown's Low Grade is abandoned now, so many other projects he and McManus worked on together remain a vital part of rail operations for the successors of the Pennsylvania Railroad, a testament to the
formidable team of Engineer and Contractor.

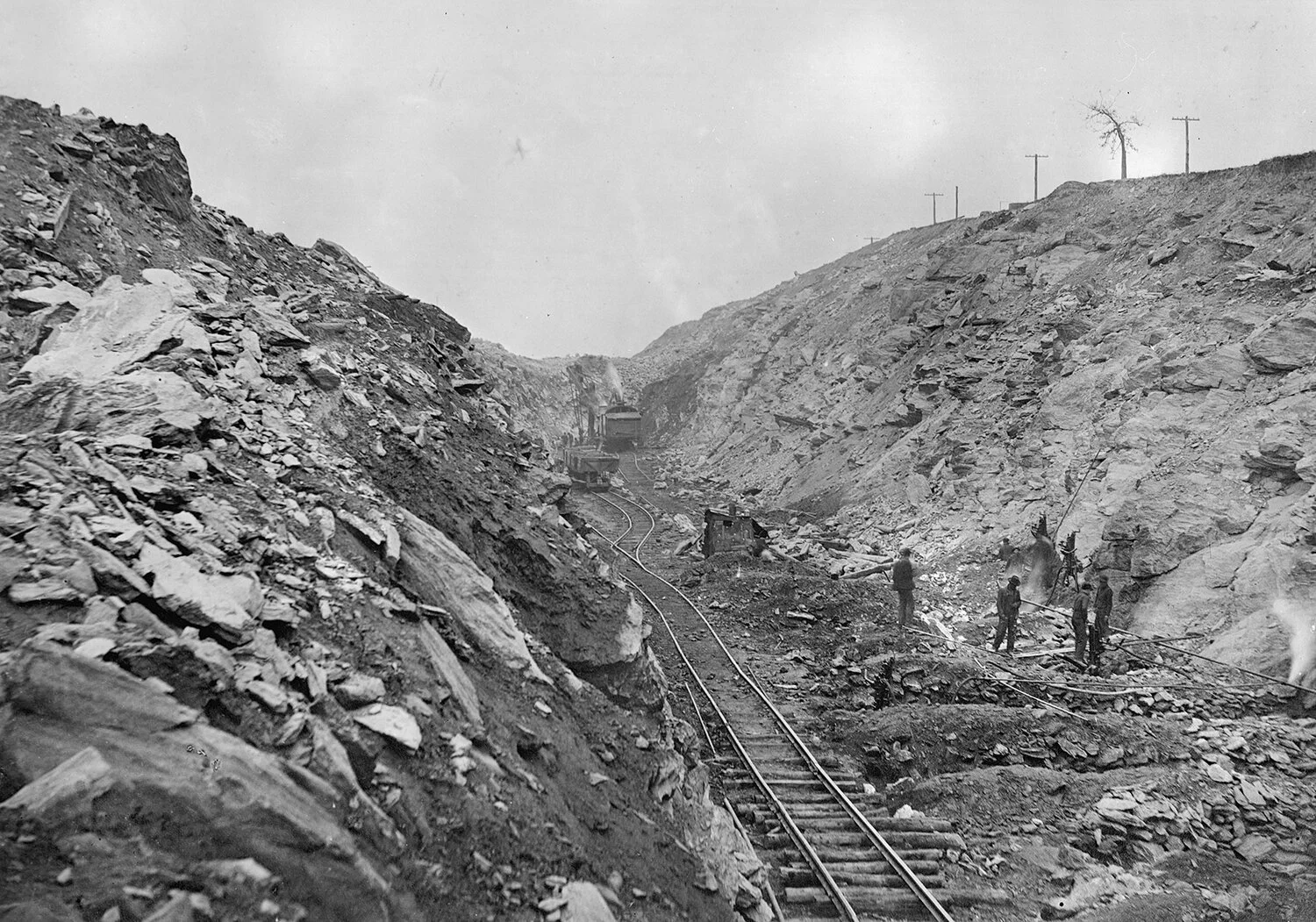

The Cost of Labor | Constructing the A&S

Today when you walk along the path of the former Atglen & Susquehanna Low Grade it is a very peaceful experience. There’s no shortage of lush foliage shrouding rock cuts blasted out of the rolling hills, the elevated fills and stone masonry look they were there since the beginning of time, and the railroad itself is long gone. Today it is hard to fathom the purpose of such a resource and even more difficult to imagine the human struggle that was involved in creating such a line.

Workers pause for a photograph, likely made by Lancaster based photographer Harry P. Stoner who was commissioned to document the construction of A&S. Blasting, the high cliffs and large loose rock along the stretch in Manor Township presented many hazards to the men while constructing the final few miles of the A&S along the Susquehanna River. Kline Collection, Railroad Museum of Pennsylvania, PMHC

Workers pause for a photograph, likely made by Lancaster based photographer Harry P. Stoner who was commissioned to document the construction of A&S. Blasting, the high cliffs and large loose rock along the stretch in Manor Township presented many hazards to the men while constructing the final few miles of the A&S along the Susquehanna River. Kline Collection, Railroad Museum of Pennsylvania, PMHC

Early in the era when railroads engaged in a wave of line and capacity improvements across the country, construction of the A&S commenced in 1903. Its scope was compared to that of the Panama Canal, which began around the same time, but took three times longer to complete.  In the course of three years the PRR spent $19.5 million to build an engineering marvel that completed the final piece of a freight by-pass collectively referred to as the Low Grade between Morrisville and Enola, Pennsylvania. With curvature limited to no more than 2% and the maximum grade held to 1% or lower the high cost of building such a line was justified with improved operating ratios and a reduction in fuel and crew demands while providing additional capacity to move freight trains away from the congested main line. With no grade crossings, local industry or stations the A&S was strictly a conduit to move freight to and from the New York and Philadelphia markets across southern Lancaster County to the west via Enola. The premise of the Low Grade is pretty simple until you consider the topography the line spanned; In order to maintain such gradients the PRR had to wage war against the landscape employing thousands of men to construct the line between Parkesburg and the Susquehanna River. The western highlands and the descent into the Susquehanna valley was perhaps the most difficult aspect of the project. It entailed erecting a massive bridge at Safe Harbor to span the Conestoga gap and carving a path high above the river that continued down to Creswell where the line joined the Columbia & Port Deposit Branch. Other notable challenges included the spanning of the Pequea Valley at Martic Forge and the 90-foot deep cut excavated out of solid rock near Quarryville.

An excavation crew pauses with a rail mounted steam shovel that appears to be down for repairs. Steam shovels and air powered drills were initially utilized to excavate the right of way in Manor township as well as the deep cuts along the line to the east. Kline Collection, Railroad Museum of Pennsylvania, PMHC

An excavation crew pauses with a rail mounted steam shovel that appears to be down for repairs. Steam shovels and air powered drills were initially utilized to excavate the right of way in Manor township as well as the deep cuts along the line to the east. Kline Collection, Railroad Museum of Pennsylvania, PMHC

According to the late Ernest Schuleen who managed the Safe Harbor Water Power Corp, "The major portion of the laborers were immigrants from Italy, Turkey, Syria and the other southeastern European countries, who were taken directly from incoming boats to do the job... Getting the job done was the thing; safety was secondary.'' Roughly 1000 men and 150 horses were deployed along the bluffs of the Susquehanna and hundreds more worked east and west from Quarryville. Obstacles were met with steam shovels and drills, finishing work executed with pick axes and shovels. Dynamite was a necessary tool to complete the work in a timely manner but its nature made the job that much more hazardous, premature explosions killed some, flying debris others. In the course of three years over 200 died while working to complete the A&S. On a weekly basis headlines pitched tragic stories of workers killed on the job with hardly a mention of who they were. One of the most tragic incidents occurred near Colemanville, the location of a dynamite factory employing local residents to produce materials for the PRR and more recently the construction of the nearby Holtwood Dam. On June 6th, 1906, just weeks before the public dedication of the A&S, a blast ripped through the stamping house containing 2400 pounds of dynamite, triggering a subsequent explosion of nitroglycerin, the disaster killing eleven men. The only identified remains was the arm of 25-year-old Frederick Rice, the rest, all in their late teens or early 20’s were laid to rest in a single common casket. Despite the fact that the plant was no longer producing dynamite for the PRR’s A&S project the railroad faced continued criticism for their lack of concern for their seemingly disposable immigrant work force which ultimately brought such tragedy to southern Lancaster County.

One of the deep cuts near Quarryville takes shape as crews blast and dig their way through solid rock to maintain the 1% maximum ruling grade on the A&S branch. Kline Collection, Railroad Museum of Pennsylvania, PMHC

One of the deep cuts near Quarryville takes shape as crews blast and dig their way through solid rock to maintain the 1% maximum ruling grade on the A&S branch. Kline Collection, Railroad Museum of Pennsylvania, PMHC

Regardless the project continued and on July 27th of the same year the PRR publicly dedicated the A&S line in the deep cut near Quarryville, where prominent Quarryville citizen George Hensel drove the final spike made of silver. Sadly the human tragedy and loss of life behind the construction of the A&S was the norm rather than the exception. Labor laws and unions had yet to gain a foothold and agencies like OSHA and the FRA had yet to exist. The Industrial Revolution was still very much a time where money ruled and the bottom line far outweighed the value of human life. The human story of the A&S was a dark reality repeated time and time again to build some the most important engineering accomplishments and transportation networks in the country.

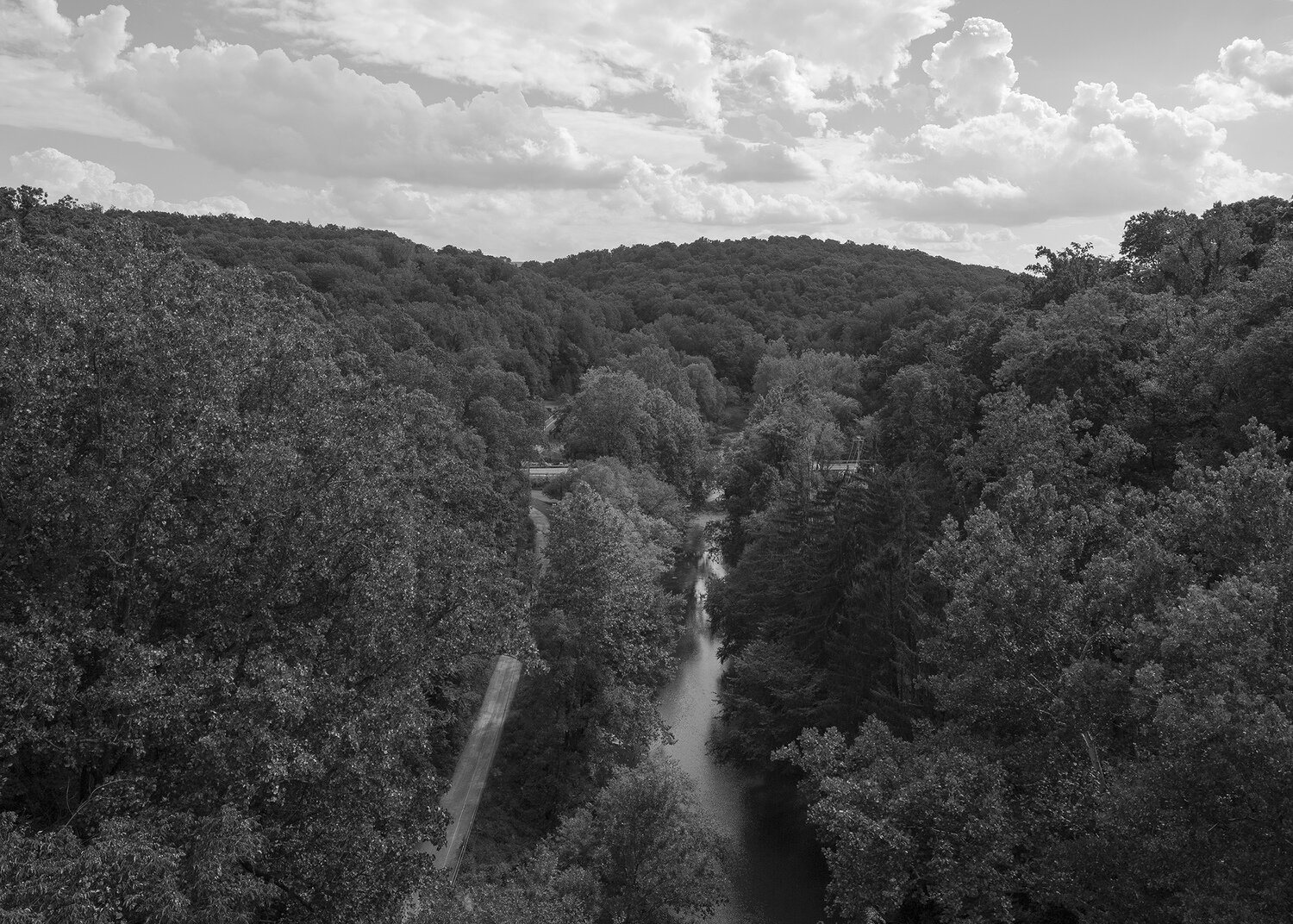

Revisiting the Atglen & Susquehanna

The Bridge at Martic Forge

Returning to the Atglen & Susquehanna Branch, part of the PRR’s Low Grade freight network we pick up from Shenk’s Ferry where the line pulls away from the Susquehanna River to cross southern Lancaster County. From the high fill above the river the A&S makes a hard turn east to face the first formidable obstacle; crossing the switchback divide between Martic and Conestoga Townships in the deep Pequea Valley.



View looking south from the Martic Forge Trestle reveals the rugged terrain the PRR had to contend with when creating the Low Grade, cutting through hills and spanning valleys to maintain an acceptable ruling grade for moving high volumes of heavy freight.

View looking south from the Martic Forge Trestle reveals the rugged terrain the PRR had to contend with when creating the Low Grade, cutting through hills and spanning valleys to maintain an acceptable ruling grade for moving high volumes of heavy freight.

The Martic Forge trestle was situated between two deep cuts excavated through Prospect and Red Hill deriving its name from a neighboring charcoal iron furnace that was active during the Revolutionary War. Utilizing a similar approach to the Conestoga (Safe Harbor) and the Little Brandywine Creek crossing in Downingtown, the trestle is a combination of 10 plate steel deck girders on bents supported by masonry piers with an inverted deck truss for the expanded section over the creek itself. The bridge measured approximately 630’ long and soared 149 feet above the valley floor. The structure was originally constructed with an open timber deck, which was later closed and ballasted at an unknown date. In addition to spanning the creek, the Low Grade also crossed the Pequea Electric Railway, a trolley line that ran until 1930 between Lancaster and retreat camps near the village of Pequea where the creek empties out into the Susquehanna. Places like the Martic trestle illustrate the Low Grade’s intention to bridge the land rather than to foster growth in between, soaring over life in the valley, a theme common to this line across southern Lancaster County.

Construction of the Martic Forge Bridge was completed in 1905. These remarkable photographs illustrate the challenge the PRR had constructing this bridge in the remote Pequea Valley. (L) Image collection of The Kline Collection, Railroad Museum of Pennsylvania, PHMC (R) Columbia Historic Preservation Society, Columbia, PA

Construction of the Martic Forge Bridge was completed in 1905. These remarkable photographs illustrate the challenge the PRR had constructing this bridge in the remote Pequea Valley. (L) Image collection of The Kline Collection, Railroad Museum of Pennsylvania, PHMC (R) Columbia Historic Preservation Society, Columbia, PA

Over the last few years Martic Township has restored the deck of the Martic Forge Bridge, providing the current eastern anchor point on the continually growing Low Grade trail. Visitors are treated to beautiful views of the Pequea Valley where countless freights once moved in an area that was largely inaccessible until the railroad’s abandonment.

The Martic Forge Bridge is now a major highlight on the Martic Township section of the Enola Low Grade rail trail. Once the Conestoga bridge in Safe harbor is complete hikers and cyclists will be able to travel from Creswell to Martic on one continuous and very scenic section of the former PRR Low Grade.

The Martic Forge Bridge is now a major highlight on the Martic Township section of the Enola Low Grade rail trail. Once the Conestoga bridge in Safe harbor is complete hikers and cyclists will be able to travel from Creswell to Martic on one continuous and very scenic section of the former PRR Low Grade.

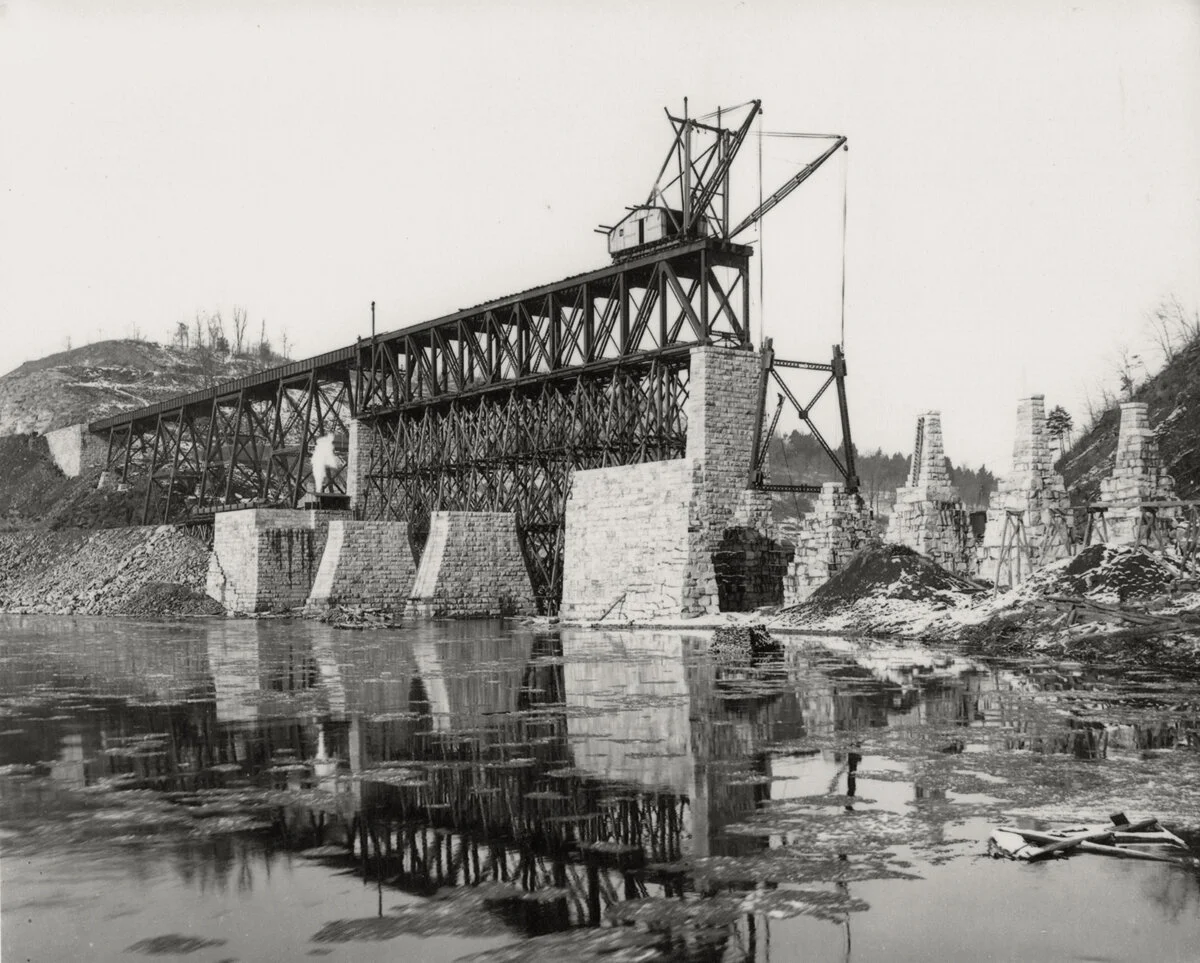

Conestoga River Bridge at Safe Harbor

York_Haven_Line. 003

Since the construction of the Columbia & Port Deposit Railroad in 1877 trains have operated through Safe Harbor, where the Conestoga River joins the Susquehanna. When construction of the A&S began in 1902 the route was planned to diverge from the Port Road six miles north at Creswell beginning a gentle climb out of the Susquehanna Valley. The first formidable obstacles the PRR would encounter on the new alignment would be the approach and spanning of the Conestoga River Valley. Beginning excavation in 1903 contractor H. S. Kerbaugh converted a former rolling mill in Safe Harbor to provide compressed air to drill pilot holes for blasting in the rock face high above. The dynamite would be hoisted up the cliffs by hand, detonated and the process was repeated. The resulting debris caused the Port Road below to be closed for extended periods of time due to the dangerous conditions, which often buried the right of way.

Blasting to create the new A&S alignment approaching Safe Harbor. Collection of the Columbia Historic Preservation Society, Columbia, PA.

Blasting to create the new A&S alignment approaching Safe Harbor. Collection of the Columbia Historic Preservation Society, Columbia, PA.

Perhaps one of the more dramatic locations on the PRR, the new A&S Bridge would stretch 1560’ in length at roughly 100’ higher than the Port Road below. While construction was underway on the new span a flood in 1904 would destroy the Port Road Bridge. Taking advantage of the ongoing construction, engineers decided to incorporate a new crossing on the Port Road, rather than rebuild the existing stone arch bridge. The new span would provide a stronger bridge for the growing freight traffic with the added benefit of increased clearance from the Conestoga River below.

Rare view of the original Columbia and Port Deposit Bridge spanning the Conestoga River. This bridge was destroyed by floods in 1904 during the construction of the A&S bridge. It was decided to replace it with a new span rather than rebuild the remains of the stone bridge. Collection of the Lancaster County Historical Society

Rare view of the original Columbia and Port Deposit Bridge spanning the Conestoga River. This bridge was destroyed by floods in 1904 during the construction of the A&S bridge. It was decided to replace it with a new span rather than rebuild the remains of the stone bridge. Collection of the Lancaster County Historical Society

Chief Engineer, William H. Brown would design the bridges utilizing different style spans to meet the specific needs of each route. The A&S bridge, much longer in length included a 300’ pin connected Pratt deck truss over the river supplemented by plate girder viaducts on steel bents - nine spans measuring 480’ to the north and seventeen spans to south measuring 780’. The bridge would carry two main tracks at height of almost 150 above the creek. Down below on the Port Road, the new bridge would feature 3 riveted deck plate girder spans carrying the two main tracks at a height of 55’ above the 1905 water line.

Construction progresses as contractor H. S. Kerbaugh begins the southern approach viaducts. Once the steel erection is complete workers could begin working below on the Port Road bridge. Collection of the Columbia Historic Preservation Society, Columbia, PA.

Construction progresses as contractor H. S. Kerbaugh begins the southern approach viaducts. Once the steel erection is complete workers could begin working below on the Port Road bridge. Collection of the Columbia Historic Preservation Society, Columbia, PA.

The steel work for the bridge was fabricated in Steelton by PRR owned subsidiary Pennsylvania Steel and was erected by contractor H.S. Kerbaugh Inc. who had been one of two key contractors during the A&S project. The construction of the masonry piers and retaining walls was unique in that the upper and lower spans shared a monolithic L shaped pier on either side of the river. The piers for the main A&S span went up as the falsework was constructed to support the new 300’ Pratt deck truss, once this was completed, assembly of the approach viaducts proceeded, the northern first then the southern approach. When the majority of the high level erection was completed, contractors could commence work on the lower level Port Road bridge. By July of 1906, trains were running on the A&S and the Port Road, which had suffered from months of closure and restriction due to the construction, would finally resume normal operations later that year in August.

Modern view of the Safe harbor Hydro-electric power plant during an approaching storm.

Modern view of the Safe harbor Hydro-electric power plant during an approaching storm.

In 1930 construction would commence to build the northern most of three Depression Era hydroelectric dams along the Susquehanna River at Safe Harbor. Erected just above the confluence of the Conestoga River the first turbine went online in December of 1931 and by 1940 a total of seven were in operation. Two of these turbines were dedicated to generating the 25 Hz single-phase power required to feed the Pennsylvania Railroad’s newly electrified railroad. By 1938, the final phases of the electrification were complete and included the A&S, Port Road, Columbia Branch and Main Line west to Harrisburg. With the eastern main line and freight network complete, power from Safe Harbor began supplying the PRR grid, with tethers of high voltage transmission lines mounted above the tracks, feeding various substations along the PRR’s electrified territory. The railroad understood the value of the Public Works project and the advantage of a renewable energy source. Today Safe Harbor operates 12 turbine generator units and continues to supply the Northeast passenger rail network today.

View from the Port Road looking to the South. There is a passing siding here that ends just to the north of the Conestoga Bridge, giving the appearance of double track. Most of the Port Road south is single track with passing sidings. The A&S Bridge stands silent today, with no rail activity since 1988.

View from the Port Road looking to the South. There is a passing siding here that ends just to the north of the Conestoga Bridge, giving the appearance of double track. Most of the Port Road south is single track with passing sidings. The A&S Bridge stands silent today, with no rail activity since 1988.

Turkey Hill

View of Turkey Hill from the north, near Creswell Station, PA.  Turkey Hill, a prominent feature in the local geography along the Susquehanna River became a household name as a result of a resourceful dairy farmer during the Great Depression. Situated on the east side of the Susquehanna River in Manor Township, the hill rises roughly 500 feet above the valley floor. Both the Columbia & Port Deposit and Atglen & Susquehanna routes of the Pennsylvania Railroad make there way around the western face as they move east toward Conestoga Creek at Safe Harbor.

View of Turkey Hill from the north, near Creswell Station, PA. Turkey Hill, a prominent feature in the local geography along the Susquehanna River became a household name as a result of a resourceful dairy farmer during the Great Depression. Situated on the east side of the Susquehanna River in Manor Township, the hill rises roughly 500 feet above the valley floor. Both the Columbia & Port Deposit and Atglen & Susquehanna routes of the Pennsylvania Railroad make there way around the western face as they move east toward Conestoga Creek at Safe Harbor.

Detail of a 1912 USGS topographical map of the McCalls Ferry Quadrangle. Notice the distinct notch that Turkey Hill creates off the eastern shore of the Susquehanna River. Collection of  Mytopo.com

Detail of a 1912 USGS topographical map of the McCalls Ferry Quadrangle. Notice the distinct notch that Turkey Hill creates off the eastern shore of the Susquehanna River. Collection of Mytopo.com

The name of the family owned Turkey Hill based dairy business dates back several generations to Armor Frey during the Great Depression. Starting as a small supplement to make ends meet, Frey built his dairy route into a profitable company, with his sons taking over in 1947. It wasn’t until the 1980's however that the name Turkey Hill made it into most of our lives when the Frey family made a considerable investment in growing their ice cream production. By 1981 independent markets in the Philadelphia area picked up the product line and soon after Turkey Hill would be one of America’s best-known dairies.

The former A&S right of way climbing toward Turkey Hill is one of two lines that round the point at different elevations. The Columbia and Port Deposit is at a lower elevation to the right, along the Susquehanna’s east bank. Note the wind turbine in the distance, the absence of the fan blade is due to the longer exposure while the turbine was in motion.

The former A&S right of way climbing toward Turkey Hill is one of two lines that round the point at different elevations. The Columbia and Port Deposit is at a lower elevation to the right, along the Susquehanna’s east bank. Note the wind turbine in the distance, the absence of the fan blade is due to the longer exposure while the turbine was in motion.

The forward thinking company installed two wind turbines on Turkey Hill in 2010 to provide up to 7.2 kWh or 25% of their facility’s power demands. The towers stand at 262 feet and are the tallest structures in Lancaster County. Ironically the same bluff that Armor Frey allegedly watched the sunrise from everyday before going to work is part of Lancaster County’s Frey Farm Landfill site, a massive facility that handles Lancaster County’s waste that cannot be converted to energy or recycled. While the facility is considerable in size, they have taken great measure to preserve the environmental integrity of the areas rich with wildlife and ornithological diversity. Currently Lancaster County is developing a walk in park and hiking trails to enjoy the breathtaking view from atop of Turkey Hill. Though I have yet to explore this particular location, you can be certain that I will report back with images from this prominent scenic viewpoint!

Pennsylvania Railroad Electrification

Yesterday, February 10th marked the 78th anniversary of regularly scheduled electric powered passenger trains running between New York City and Wahshington DC, a result of the Pennsylvania Railroad’s effort to electrify the main line system throughout the congested Northeast region.

Formerly known as Germantown Junction, North Philadelphia marked where the 1918 electrification of the Chestnut Hill Branch diverged from the main line to head north into the suburbs. This junction today sees Septa trains diverging on the same route while handling the north - south traffic of the Northeast Corridor. Note the massive signal bridge which originally spanned up to 8 tracks, and the early lattice style catenary pole in the foreground.

Formerly known as Germantown Junction, North Philadelphia marked where the 1918 electrification of the Chestnut Hill Branch diverged from the main line to head north into the suburbs. This junction today sees Septa trains diverging on the same route while handling the north - south traffic of the Northeast Corridor. Note the massive signal bridge which originally spanned up to 8 tracks, and the early lattice style catenary pole in the foreground.

The Pennsylvania Railroad’s electrification projects date back as early as 1895 when the railroad used the Burlington and Mt. Holly Railroad as a test subject for a 7 mile 500 volt DC trolley system. The experiment lasted just six years when the Mt Holly powerhouse caught fire. In 1906 southern New Jersey subsidiary West Jersey & Seashore Railroad, built a third rail 600 volt DC system from Camden to Millville and Atlantic City via Newfield. Like an interurban or trolley system the line utilized overhead wire in congested areas like Camden but also had several installations in the countryside, as way to test the durability of trolley wire versus third rail at higher speeds. The same year the PRR installed yet another 600 volt DC system on a short Cumberland Valley Railroad branch running 7.7 miles from Mechanicsburg and Dillsburg all predecessors to the first large scale use of this technology on the railroad. In 1910, the PRR would construct a similar 650-volt DC system to operate the newly opened New York Terminal. Running from Manhattan Transfer near Harrison, New Jersey east to the beautiful Penn Station and ultimately to the sprawling Sunnyside Yard in Queens.

Map detailing the Pennsylvania Railroad's electrified territory circa 1947. Collection of    Rails and Trails .

Map detailing the Pennsylvania Railroad's electrified territory circa 1947. Collection of Rails and Trails.

Soon after the benefits of electric traction were realize in the New York Terminal, attention was focused on the Philadelphia area to relieve congestion, in particular operations radiating from the stub-end Broad Street Station complex. After considerable research the railroad adopted the use of high voltage alternating current for this and all future projects like that of its northern neighbor the New Haven who began use of this technology as early as 1907. Initial electrification included the district between Broad Street and Paoli on the Main Line, which was completed in 1915, followed by the Chestnut Hill Branch in 1918, and the White Marsh Branch in 1924.

PRR Document ET 1 Circa 1935. This document highlights a number of important specifications and layout of the newly completed electrified system, including catenary cable design, substation locations, insulator types and the completion dates of each segment among other items.  Collection of PRR.Railfan.net

PRR Document ET 1 Circa 1935. This document highlights a number of important specifications and layout of the newly completed electrified system, including catenary cable design, substation locations, insulator types and the completion dates of each segment among other items. Collection of PRR.Railfan.net

Expansion continued south to Wilmington on the main line including the branch to West Chester in 1928 and north on the main line to Trenton and the Schuylkill Valley Branch to Norristown in 1930 thus completing the electrification of Philadelphia region suburban lines. Subsequent studies indicated an economical advantage of electrification outside the commuter zones for regional and long distance trains between New York, Philadelphia, Washington DC and Harrisburg, prompting Pennsylvania Railroad President William Wallace Atterbury to close the gaps in electrification beginning late in 1928. Despite the Great Depression the electrification project continued through 1933, completing the retrofit of the New York Terminal for AC traction and finishing catenary work to complete the network to Wilmington and Paoli.

The PRR electrified network still serves the modern needs of Amtrak, providing propulsion for Acela, regional and local passenger rail service through out the Northeast. At Shore, on the Northeast Corridor a southbound passes as another northbound region approaches. Note the catenary above the void in front of the camera, this is where the line to Delair diverges and used to have multiple tracks, all electrified into Pavonia Yard in Camden.

The PRR electrified network still serves the modern needs of Amtrak, providing propulsion for Acela, regional and local passenger rail service through out the Northeast. At Shore, on the Northeast Corridor a southbound passes as another northbound region approaches. Note the catenary above the void in front of the camera, this is where the line to Delair diverges and used to have multiple tracks, all electrified into Pavonia Yard in Camden.

Understanding that Wilmington would not be a suitable southern terminal for electrification, catenary was extended to Washington DC including Potomac Yard, financed by a 70 million dollar loan secured from depression era federal recovery programs. Beginning in January of 1934, various reports say up to 20,000 men went to work, comprising of furloughed railroad employees and new hires in the electrical / construction trades to complete the electrification of the New York – Washington DC main line, which opened for business on February 10th 1935.

As a result of the success on the north south “corridor” the PRR sought to complete electrification from the eastern seaboard west to the Harrisburg terminal including all associated freight and passenger main lines. Work commenced on the Low Grade from Morrisville to Enola, the main line from Paoli to Harrisburg and the on the Columbia Branch and Columbia & Port Deposit. Completed in 1938 the entire electrification created a powerful conduit that put the railroad in an excellent position to handle the impending pressure of war time traffic demands.

The Harrisburg power Dispatchers office, which was slated to close the beginning of this month controlled the electrical supply network for both signal and catenary systems. This massive installation is an engineering marvel by itself, an impressive monitor and control system consisting of hundreds of push button breakers and miles of wiring. Though this facility remained in service, the actual console was taken off line and replaced by computers which were located out of view.

The Harrisburg power Dispatchers office, which was slated to close the beginning of this month controlled the electrical supply network for both signal and catenary systems. This massive installation is an engineering marvel by itself, an impressive monitor and control system consisting of hundreds of push button breakers and miles of wiring. Though this facility remained in service, the actual console was taken off line and replaced by computers which were located out of view.

The electrified infrastructure has remained visibly the same over the ensuing decades, surviving the Pennsylvania Railroad, Penn Central, Conrail and Amtrak. Though Conrail abandoned the electrified freight service in the 1980's Amtrak continues to maintain and modify where needed the original fixed tension catenary system. With the implementation of CTEC, its centralized traffic and electrical dispatching center, the company has slowly decommissioned all the former PRR power dispatching facilities in favor of new computerized systems. Today, when you ride the Northeast Corridor, look at the details amongst this great infrastructure, they reveal the various phases of construction and symbolize the ingenuity and engineering ability of the great Pennsylvania Railroad.

Creswell Station

Plate drawing circa 1963 of Port and Cres interlocking, controlled by the operator in Cola tower, which was in Columbia. Interlocking plate collection of       The Broad Way    .

Plate drawing circa 1963 of Port and Cres interlocking, controlled by the operator in Cola tower, which was in Columbia. Interlocking plate collection of The Broad Way.

Just five miles south of Columbia we come to a small village named Creswell Station, the location where the Atglen & Susquehanna Branch diverges from the Columbia & Port Deposit.  By far the longest stretch of new trackage built during the Low Grade project the diverging A&S alignment runs roughly 33 miles from Creswell across Lancaster County to the main line connection in Parkesburg. South from this junction (railroad east) the C&PD and A&S ran parallel along the Susquehanna as far south as Shenks Ferry with the A&S climbing a gentle .3% grade accumulating a significant difference in elevation between the two routes.

Wide view of Port Interlocking and the Susquehanna River. Note the grade separation with the A&S branch beginning the gentle climb over the Port Road .

Wide view of Port Interlocking and the Susquehanna River. Note the grade separation with the A&S branch beginning the gentle climb over the Port Road .

Originally controlled locally by an interlocking tower, two remote control points know as Port and Cres were implemented during the 1938 electrification project, controlling a single jump-over arrangement allowing the two lines to intersect with out fouling the opposing main track. Controlled by the operator in Cola tower, this was one of several remote controlled interlocking points along the A&S and C&PD. Port controlled the east and west connections between the A&S and Port Road and was the boundary between the Chesapeake and Philadelphia Divisions. Cres controlled the convergence of the two main tracks to one on the eastern limit of the interlocking on the Port Road. The C&PD to the south/ east of here was all single track with passing and sidings.

A&S jump-over bridge looking east at Port/ Cres interlocking. The track below is the westward main track of the Columbia and Port Deposit branch. Around the bend below is Cres, where this track meets with the eastward main and narrows to one track. Note the transmission poles that are still used to support Amtrak’s feeder line from Safe Harbor to Royalton preserving for now some of the visual characteristics of the original PRR infrastructure.

A&S jump-over bridge looking east at Port/ Cres interlocking. The track below is the westward main track of the Columbia and Port Deposit branch. Around the bend below is Cres, where this track meets with the eastward main and narrows to one track. Note the transmission poles that are still used to support Amtrak’s feeder line from Safe Harbor to Royalton preserving for now some of the visual characteristics of the original PRR infrastructure.

Creswell Station served as a strategic junction until Conrail abandoned the A&S branch in favor of the Reading Main Line in December of 1988. The A&S languished for many years, rusting away until the property was turned over to the local municipalities to create a network of rail trails for the general public. Though the segment from Creswell to Shenks Ferry has yet to be converted, planning has begun to transform this former right of way into a linear park along the beautiful Susquehanna River.

Atglen and Susquehanna Branch

Highlights of upcoming posts on the PRR’s A&S branch which completed the Low Grade network between Morrisville and Enola. Historical Images included in grid from the (Top row, middle, center row middle) Columbia Historic Preservation Society, Columbia, PA; The Kline Collection, Railroad Museum of Pennsylvania, PHMC (center row, right) and Moores Memorial Library, Christiana, PA (bottom row, left).

Highlights of upcoming posts on the PRR’s A&S branch which completed the Low Grade network between Morrisville and Enola. Historical Images included in grid from the (Top row, middle, center row middle) Columbia Historic Preservation Society, Columbia, PA; The Kline Collection, Railroad Museum of Pennsylvania, PHMC (center row, right) and Moores Memorial Library, Christiana, PA (bottom row, left).

The Pennsylvania Railroad’s Atglen and Susquehanna Branch was an integral segment of the Low Grade network, a through route dedicated to freight traffic that stretched approximately 140 miles from Morrisville to Enola, bypassing the congestion of Philadelphia and Lancaster.  At a price of nearly $20 million dollars, the A&S Branch spanned Lancaster County creating the final link of this ambitious project. Constructed on earthen fill and etched through the stone hills of the Chester and Susquehanna Valleys the route connected to the Northern Central Railway at Wago Junction continuing east to Parkesburg where it linked back to the main line. A major piece of this route would include a new 33-mile segment between Cresswell and Parkesburg. To construct the A&S the Pennsylvania Railroad excavated an estimated 22 million yards of earth and rock while building roughly 80 bridges and culverts to create a modern superhighway for freight traffic.  At the time of its dedication on July 27, 1906, the line would be the largest construction project in the railroad’s history to date. Once completed, the A&S and the larger Low Grade would give the PRR an unrivalled route that provided access to all the major port cities the railroad served with a vital link to the four track main line system west.

During the 1938 electrification project, the A&S and the rest of the Low Grade would see the change from steam to electric locomotives with power coming from the Safe Harbor Hydroelectric Plant located on the Susquehanna River. This early “green” facility not only powered the trains of the A&S but through a tether of high voltage transmission lines along the route, fed major sub-stations along the Main Line and what is know today as the Northeast Corridor. The engineering accomplishment would serve the PRR well through the onslaught of traffic during World War II without major issue, but after the war, traffic would decline sending many railroads into financial crisis. Through bankruptcy and merger the ill-fated Penn Central and subsequent creation of Conrail, the A&S and other parts of the Low Grade would be abandoned in favor of the former Reading route to Harrisburg. On December 19th, 1988 the last freight train would traverse the A&S bringing an end to 82 years of freight service on this remarkable piece of railroad.

Map highlighting the A&S Branch from Safe Harbor to Parkesburg.

Map highlighting the A&S Branch from Safe Harbor to Parkesburg.

Since the last train the right of way languished in abandonment, however the transmission lines were retained to continue feeding the substations on the former PRR electrified network. In 2011 Amtrak moved to upgrade the former catenary / transmission line supports with modern mono-poles, while the local municipalities have taken possession of the right of way with some creating a beautiful rail-trail route through the heart of Lancaster County.

Over the next several months we will explore the A&S in detail, looking at the modern remains as well as historical images of the line during construction and operation. I am excited to share a thorough account of an engineering project that speaks to the ability and character of the Pennsylvania Railroad and their claim to being the Standard Railroad of the World!

Columbia, Pennsylvania: 20th Century and the PRR Improvements Project

The area of Columbia along Front Street is host to Cola Interlocking. In this view looking east from the Chestnut Street bridge you can view the eastern limits of expansive interlocking which provides access to the original Philadelphia and Columbia Branch to Lancaster (diverging left) with the original Columbia and Port Deposit (Main Line to the right). To the west the PRR would become known as the York Haven line or Enola Branch. Note the 1877 PRR station, which survives along North Second Street.

The area of Columbia along Front Street is host to Cola Interlocking. In this view looking east from the Chestnut Street bridge you can view the eastern limits of expansive interlocking which provides access to the original Philadelphia and Columbia Branch to Lancaster (diverging left) with the original Columbia and Port Deposit (Main Line to the right). To the west the PRR would become known as the York Haven line or Enola Branch. Note the 1877 PRR station, which survives along North Second Street.

By the late 1800’s the Pennsylvania Railroad had developed into a well-heeled transportation system but the rapid growth of industry would necessitate system wide improvements to bring the railroad into the 20th century. In 1902 PRR President Alexander J. Cassatt and Chief Engineer William H. Brown would embark on a series of projects to eliminate bottlenecks and operational problems across the system.

After the PRR acquired control of the Philadelphia and Columbia Railway through the purchase of the Main Line of Public Works in 1857, various segments were improved during the second half of the 19th century. The route between Philadelphia and Lancaster became an integral part of the PRR Main Line connecting with the former Harrisburg & Lancaster creating the line we know today as Amtrak’s Keystone Corridor. The western end of the P&C would become a branch connecting the industrial and agricultural areas of Lancaster and Columbia. Due to the stiff grades both segments were less than ideal for heavy freight traffic. In addition to the P&C property accessing Columbia, the PRR had also gained controlled of the Harrisburg & Lancaster Railroad’s Columbia branch via Royalton and the Columbia & Port Deposit by the mid to late 1800's, further establishing Columbia as an important railroad hub. Though much of these water level alignments provided a network to move freight to Harrisburg, Cassatt sought to build a new route east from Columbia running across Lancaster County to create a modern freight bypass from New York and Philadelphia to the Harrisburg area and the main line west.

Plate drawing circa1963 Cola Interlocking which controlled the junction of the York Haven line, Columbia branch and Columbia and Port Deposit as well as access to the local freight yard. This interlocking was part of a Centralized Traffic Control system that controlled a much larger district of trackage and interlockings. Collection of    The Broad Way   .

Plate drawing circa1963 Cola Interlocking which controlled the junction of the York Haven line, Columbia branch and Columbia and Port Deposit as well as access to the local freight yard. This interlocking was part of a Centralized Traffic Control system that controlled a much larger district of trackage and interlockings. Collection of The Broad Way.

The Low Grade as it was planned would run right through Columbia using the current alignment. From the east and west new construction would connect existing segments of the H&L and C&PD creating an improved main line designed to move freight on a new grade separated line. This new route would divert most freight traffic off the main line all together between Parkesburg and Harrisburg. Enola yard was completed in 1906 as part of the low grade project functioning as the western anchor for all freight trains and motive power between the Philadelphia and Middle Divisions. As a result Columbia importance as a major terminal would diminish due to its close proximity to the new facility, resulting in a significant loss of jobs in the area. Compounded by the diminishing local industry, a result of depleted ore and lumber resources, Columbia’s economy would begin a downward trend that continued through the Great Depression.

Cola tower was built in 1938 during the electrification to centralize traffic control on this freight network. Its jurisdiction reached forty miles to the east on the Port Road including the connection to the A&S branch while also controlling tracks to Shocks Mill and Lancaster via the Columbia branch.

Cola tower was built in 1938 during the electrification to centralize traffic control on this freight network. Its jurisdiction reached forty miles to the east on the Port Road including the connection to the A&S branch while also controlling tracks to Shocks Mill and Lancaster via the Columbia branch.

More change came on the PRR with the electrification of their network of rail lines in the Northeast.  One of the last segments of the ambitious project was completed in 1938 affording the PRR the benefit of electric traction on the Low Grade, Columbia branch and Columbia & Port Deposit. During the electrification project, the PRR also consolidated many of the early towers with two modern CTC facilities controlling most of this freight network. Cola tower in Columbia controlled all trains on the Columbia Branch to Lancaster, roughly forty miles of the Columbia & Port Deposit Branch including the junction with the A&S Branch at Port and the York Haven Line west to Shocks Mill. Cola’s jurisdiction over the C&PD was unique in that most of the line was actually under control of the Baltimore Dispatcher and was considered part of the Chesapeake Division, while Cola was part of the Philadelphia Division.

View looking west from the Columbia Branch near the Mill Street crossing. This is the original Philadelphia & Columbia alignment and is operated by NS to access Lancaster area industries and Dillerville Yard, the center of freight operations in the area. Note the steep descent of the branch, compared to the Low Grade visible to the left, which utilized heavier catenary supports on account of it supporting high voltage transmission lines to Royalton. In typical PRR fashion the Columbia branch was maintained to high standards including the use of catenary to provide a relief route in the event there was wreck on neighboring lines.

View looking west from the Columbia Branch near the Mill Street crossing. This is the original Philadelphia & Columbia alignment and is operated by NS to access Lancaster area industries and Dillerville Yard, the center of freight operations in the area. Note the steep descent of the branch, compared to the Low Grade visible to the left, which utilized heavier catenary supports on account of it supporting high voltage transmission lines to Royalton. In typical PRR fashion the Columbia branch was maintained to high standards including the use of catenary to provide a relief route in the event there was wreck on neighboring lines.

The Low Grade and electrification would survive the Penn Central debacle but ultimately met its demise after the creation of Conrail. Due to the high cost of electric supply charges, the aging infrastructure and the dependency on Amtrak to move trains east of Parkesburg it was decided to abandon an integral part of the system in favor of the neighboring Reading Railroad Main Line ending over 80 years of service on perhaps one of Cassatt and Brown’s greatest achievements. The Columbia and Port Deposit survives as Norfolk Southern’s artery to Maryland’s Eastern Shore and the Port of Baltimore. The former P&C to Lancaster provides NS a dedicated connection to Dillerville yard servicing the industrial areas around the seat of Lancaster County. Though not what used to be Columbia still sees a parade of freight daily, though mostly nocturnal, moving freight as Cassatt had envisioned over a century ago.

Columbia Pennsylvania: Early Transportation History

Modern facade detail of the 1877    Pennsylvania Railroad station in Columbia located along North Front Street.

Modern facade detail of the 1877  Pennsylvania Railroad station in Columbia located along North Front Street.

Columbia Pennsylvania is a town steeped in transportation history, beginning with the area’s settlement led by English Quaker John Wright through the heyday of the Pennsylvania Railroad. Incorporated in 1814 and originally known as Wrights Ferry, settlers aspired to great accomplishments, renaming the town in honor of Christopher Columbus in an effort to entice Congress to select the town as the nation’s capitol. Despite a valuable endorsement by George Washington, Columbia fell just one congressional vote shy of this honorable distinction in 1790. Soon after, in 1812, Columbia lost another bid for distinction when Harrisburg was chosen as the capital of Pennsylvania due to its closer proximity to the Commonwealth's geographic center.

By 1826 Columbia would be central to various modes of transportation including Wright’s Ferry, and a 5690’covered bridge that provided access to the west bank of the Susquehanna River in Wrightsville. More significant was the construction of a series of canals, establishing Columbia as the eastern terminus of the Main Line of Public Works Project. These canals eased travel to points west such as Pittsburgh, Lake Erie and West Virginia, and provided access to the Susquehanna & Tidewater Canal, opening the way east to Baltimore and other seaboard destinations.

PRR in the vicinity of Front and Walnut Streets. Note the passenger station on the right. Date Unkown. Personal collection of Fred Abendschein.

PRR in the vicinity of Front and Walnut Streets. Note the passenger station on the right. Date Unkown. Personal collection of Fred Abendschein.

By the 1834 opening of the canal the town also became the western terminus of the Philadelphia and Columbia Railroad, which connected the namesake towns via Lancaster as the eastern extension of the trans-state Public Works. Though the P&C was far more effective than canal travel to the west, poor construction and inadequate equipment would hinder the railroad from operating efficiently. The 1846 charter granted to the Pennsylvania Railroad dealt a major blow to the Main Line of Public Works. By 1857 the growing private venture secured access to Columbia by purchasing the entirety of the system, including the P&C. Its rebuilding of the P&C and later use of canal alignments created a dedicated, all-rail route from Pittsburgh and points west to Philadelphia and New York City.

Illustration of the June 28th, 1863 Columbia –Wrightsville Bridge burning during the Civil War from Harper’s Weekly. Collection of  The Civil War

Illustration of the June 28th, 1863 Columbia –Wrightsville Bridge burning during the Civil War from Harper’s Weekly. Collection of  The Civil War

The PRR would serve a major strategic asset to the North during the Civil War, and Columbia would also play a part during the Gettysburg campaign.  As the war raged in Gettysburg, General Robert E. Lee planned to advance Confederate troops east via the Wrightsville – Columbia bridge to take Harrisburg, Lancaster and Philadelphia.  The citizens of Columbia and the State militia burned the vital bridge preventing Lee’s troops from crossing into Lancaster County foiling their attacks. Shortly there after Northern troops would prevail and Columbia would settle into a time of industrial prosperity.

1894 map of Columbia at the peak of its industrial era by T. M. Fowler. Collection of Library of Congress Geography and Map Division.

1894 map of Columbia at the peak of its industrial era by T. M. Fowler. Collection of Library of Congress Geography and Map Division.

The bridge to Wrightsville was rebuilt yet again, and the Philadelphia and Reading Railroad would begin serving Columbia by way of the Reading and Columbia branch. With growing popularity the railroads would seal the fate of the remaining canals that survived hauling coal. Columbia was at the heart of an area rich with iron deposits, now being transported by rail, fostering the rapid expansion of anthracite fired steel and iron forges throughout the Chiques, Conewago and Swatara valleys. Textile mills, lumber and the crossroads of passenger transportation also contributed to local economy. As a new century approached, Columbia had overcome early challenges and the ravages of war to reach its industrial peak, becoming a major railroad hub, host to extensive rail shops and yards, employing hundreds of local residents for both the PRR and Phildelphia and Reading railroads.

Susquehanna Reprise

Approaching thunderstorm and Hill Island from the east bank, Royalton, Pennsylvania.

Approaching thunderstorm and Hill Island from the east bank, Royalton, Pennsylvania.

Though we've discussed the trials and tribulations the Pennsylvania Railroad endured sharing the banks of the Susquehanna River, particularly on the Columbia and York Haven lines, I would like to take a chance to celebrate the river itself. The Susquehanna runs approximately 464 miles from the uplands of New York and Western Pennsylvania to create the longest river on the east coast to drain into the Atlantic Ocean. The river's watershed drains some 27,500 square miles encompassing nearly half of the State of Pennsylvania. The broad shallow river winds a wandering course to the mouth of the Chesapeake Bay at Harve De Grace, Maryland. Through various routes including the mainline, York Haven, Port Road and Northern Central the PRR follows considerable lengths of the Susquehanna. In particular, for this post at least, we celebrate some of the natural beauty of the mighty river in context of Lancaster County and the PRR York Haven and Columbia branch. Enjoy!

Clearing fog, Roundtop Mountain, from the mouth of Chiques Creek. Marietta, Pennsylvania

Clearing fog, Roundtop Mountain, from the mouth of Chiques Creek. Marietta, Pennsylvania

Confluence of Chiques Creek and the Susquehanna, framed by the York Haven Line Bridge. Marietta, Pennsylvania

Confluence of Chiques Creek and the Susquehanna, framed by the York Haven Line Bridge. Marietta, Pennsylvania

Mooring posts and Turkey Hill Point, Washington Boro, Pennsylvania.

Mooring posts and Turkey Hill Point, Washington Boro, Pennsylvania.

Royalton's Early Transportation Roots

The canal lock that survives along Water Street in Royalton survives in ruin as quiet testimony of rail's triumph over canal transportation in the race to build America. One of 14 locks along the Eastern Division Canal it was part of Pennsylvania’s failed Mainline of Public Works that gave way to the Pennsylvania Railroad.

The canal lock that survives along Water Street in Royalton survives in ruin as quiet testimony of rail's triumph over canal transportation in the race to build America. One of 14 locks along the Eastern Division Canal it was part of Pennsylvania’s failed Mainline of Public Works that gave way to the Pennsylvania Railroad.

In a strip of land between the former Harrisburg and Lancaster Railroad's Columbia branch and the Susquehanna River in modern day Royalton, Pennsylvania lays one of the few remaining clues of another transportation empire that succumbed to the practicality of the railroads. The State owned Mainline of Public Works was completed in 1834 creating a multimodal transportation network to connect Philadelphia and Pittsburgh in direct competition with the Erie Canal. Consisting of over 273 miles of canal and 120 miles of railroad, the system utilized various modes of transport based on  geographic necessity. The Philadelphia & Columbia Railroad connected its namesake towns to the Eastern Division of the Pennsylvania Canal. The Eastern Division ran 43 miles north from Columbia along the east bank of the Susquehanna River in Lancaster and Dauphin Counties.  The canal made a northern connection to the Juniata Division Canal at Duncan’s Island and intermediate connections to Harrisburg and the Union Canal in Middletown. The Juniata Division paralelled the Juniata River making connection with the Allegheny Portage Railroad in Hollidaysburg where canal boats were then transported by rail over a series of inclined planes to cross the Allegheny ridge at a summit of 2322 feet above sea level. West of the Allegheny summit the Portage Road  made connection to the Western Division Canal in the City of Johnstown following the path of the Conemaugh, Kiskiminetas and Allegheny Rivers westward to Pittsburgh and the Ohio River.

1875 map of Londonderry Township illustrates the Eastern Division of the Pennsylvania Canal as well as the railroads that would put the Mainline of Public Works out of business. Map Collection of  http://maley.net/atlas/ .

1875 map of Londonderry Township illustrates the Eastern Division of the Pennsylvania Canal as well as the railroads that would put the Mainline of Public Works out of business. Map Collection of http://maley.net/atlas/.

The dangerous and slow inclined planes of the Portage Road along with the canals would prove to be the downfall of the Public Works system limited by capacity and the seasonal nature of operations. The vast and diverse infrastructure needed constant work, many cases in remote areas making the system costly to maintain. By the 1840’s some investors began to look to the railroad as a better transportation solution and in 1846 the charter to build the Pennsylvania Railroad, a privately owned rail route from Harrisburg to Pittsburgh would challenge the Public Works System running almost exactly the same route. While the benefit of rail transportation over the Public Works was quickly realized subsequent expansion east to Philadelphia in 1854 would create the first all rail route across the state, dealing the final blow to the canals and Portage Railroad. The PRR eventually purchased most of the bankrupt Public Works system from the state to improve their mainline, often offering favorable routes alongside of towns rather than the early street running alignments of the original 1846 railroad.

Philadelphia Division: Royalton

Plate drawing of Roy Interlocking circa 1957. By this date this facility was a remote interlocking under the control of the operator at State Tower in Harrisburg.  Note the jump over that positions the freight main on the proper side of the passenger mainline to diverge south along the Susquehanna to make connection with the York Haven line at Shock Mills. Plate drawing collection of  The Broad Way .

Plate drawing of Roy Interlocking circa 1957. By this date this facility was a remote interlocking under the control of the operator at State Tower in Harrisburg.  Note the jump over that positions the freight main on the proper side of the passenger mainline to diverge south along the Susquehanna to make connection with the York Haven line at Shock Mills. Plate drawing collection of The Broad Way

Straddling the towns of Middletown and Royalton in Dauphin County, Royalton interlocking was a strategic point where most freight and passenger traffic separated for the trip east to New York, Philadelphia and Baltimore. Approximately 10 miles east from State Interlocking the mainline and Columbia branch (today Norfolk Southern's Royalton branch) ran along side each other with the freight operating on tracks furthest to the north. The Columbia branch, which drops south along the Susquehanna diverted freight trains away from the main at Royalton requiring traffic to cross into the path of the busy passenger main. To avoid this potential traffic disruption the PRR applied a proven technique of building a fly-over to allow all tracks/trains to gain proper position without the need to physically cross or intersect the other route.

View of current interlocking looking west at Roy. In the distance one can see the eastbound home signals and Amtrak's Middletown station, the overhead bridge is Burd Street. Note the older style relay hut and air plant on the right side of the tracks, this was the site of the original 2 story frame tower that controlled the interlocking prior to the late 1950’s project which moved control of this interlocking to State. Norfolk Southern operates the line diverging to the left as the Royalton Branch, which connects to the Enola and Port Road branches at Shocks Mill. This was the former PRR Columbia branch and at one time was a double track electrified artery that linked the mainline with the low-grade line to points east.

View of current interlocking looking west at Roy. In the distance one can see the eastbound home signals and Amtrak's Middletown station, the overhead bridge is Burd Street. Note the older style relay hut and air plant on the right side of the tracks, this was the site of the original 2 story frame tower that controlled the interlocking prior to the late 1950’s project which moved control of this interlocking to State. Norfolk Southern operates the line diverging to the left as the Royalton Branch, which connects to the Enola and Port Road branches at Shocks Mill. This was the former PRR Columbia branch and at one time was a double track electrified artery that linked the mainline with the low-grade line to points east.

Prior to the late 1950's Royalton interlocking was controlled by a two story frame tower that sat on the eastern side of the tracks (railroad was oriented north - south here). The early interlocking plant was of an older design using a mechanical armstrong complex to control the switches and signals between the mainline and Columbia branch. The Columbia branch served as a back road connection from the mainline and freight yards in Harrisburg  to the low-grade route via Shocks Mill allowing freight from all directions to bypass congestion in Enola when necessary. In the late 1950’s Royalton interlocking was made a remote facility named Roy with control given to the operator at State Tower in Harrisburg. Evidence of this project survives in the form of a single story relay house that rests on the foundation of the former tower. As part of Amtrak’s Keystone Line rehab, Roy was rebuilt once again providing Amtrak with a set of crossovers for operational flexibility (the line is now governed by Rule 261-allowing bi-directional traffic flow) while maintaining the connection to the Royalton branch.

The single story brick building next to the westbound home signal protecting the Columbia Branch was a small yard office and maintainers building. The structure survives today to serve Amtrak C&S crews, having recently received new windows and an extension, evident by the different color brick on the left side of the structure.

The single story brick building next to the westbound home signal protecting the Columbia Branch was a small yard office and maintainers building. The structure survives today to serve Amtrak C&S crews, having recently received new windows and an extension, evident by the different color brick on the left side of the structure.

Special thanks to Mr. Don Rittler, who's input on operations at Royalton provided some insight on this relatively obscure facility on the Pennsylvania Railroad. Don worked as a tower operator for the PRR and its successors in the Harrisburg region from 1937-1979.

Chickies Rock

View looking north of Marietta and the York Haven line along the Susquehanna from Chiques Rock, a prominent geological feature which provides a breathtaking view of the river valley. Note the catenary poles here, which still carry a high voltage feeder line from the Safe Harbor Hydroelectric Plant to Amtrak where it supplies catenary power via the substation at Royalton.

View looking north of Marietta and the York Haven line along the Susquehanna from Chiques Rock, a prominent geological feature which provides a breathtaking view of the river valley. Note the catenary poles here, which still carry a high voltage feeder line from the Safe Harbor Hydroelectric Plant to Amtrak where it supplies catenary power via the substation at Royalton.

Chickies Rock is a unique geological feature along the Susquehanna River known as an anticline, an arch of exposed rock arranged in layers that bend in opposite directions from its peak. Chickies is classified as the largest example of its kind on the East Coast. This particular location also played a significant role during the Civil War. As a highpoint along the Susquehanna River, the bluff was a strategic location for the Union Army during the Confederate’s occupation of Wrightsville across from Columbia during the Gettysburg Campaign. Later the Columbia and Donnegal Electric Railway would build a trolley line north from Columbia to the peak of the Rocks where it also constructed an amusement park. The line scaled 1900 feet up the west side of Chickies Hill Road on a 6% grade abruptly turning toward the peak to access the park. Opening in 1893 the line later extended down to Marietta providing both towns access to the popular recreation area. The trolley line and park continued to operate until its abandonment in April of 1932.

Stereo-view of Chickies Rock. This view illustrates the original Harrisburg, Portsmouth, Mount Joy and Lancaster alignment of what would become the PRR Columbia Branch. Image made by the W. T. Purviance Company between 1870-1880. Collection of the  NY Public Library System

Stereo-view of Chickies Rock. This view illustrates the original Harrisburg, Portsmouth, Mount Joy and Lancaster alignment of what would become the PRR Columbia Branch. Image made by the W. T. Purviance Company between 1870-1880. Collection of the NY Public Library System

Looking to the north from Chickies Rock one can see the PRR York Haven line, the former alignment of the Columbia branch and the town of Marietta. The rail lines converge at the base of the rocks to squeeze south (railroad east) on a narrow flat along side the Susquehanna River. It was at this location during the construction of the low-grade that the PRR decided it would build the York Haven line out on a fill to avoid the curving profile of the older alignment between here and Columbia. As a result Kerbaugh Lake, named after one of the biggest contractors on the low-grade project was created. Though referred to as a lake the area was really a low laying swamp with poor drainage that separated the two alignments. In 1936 the flood prone Susquehanna rose to levels that consumed the new fill destroying the vital low-grade, flooding Kerbaugh Lake and the Columbia branch along the shore. The devastation required months to rebuild the York Haven line and forced the decision to abandon the older Columbia branch alignment. During this period the PRR also filled in Kerbaugh Lake and improved drainage in the area by installing several culverts between the lake and Susquehanna under the right of way. Today most of this area is part of the Chickies Rock Park operated by the Lancaster County Parks Department and provides some beautiful views along various trails following the former Columbia branch between Marietta and old Kerbaugh Lake in addition to park high above on Chickies Rock itself.

A 1906 USGS topographical map illustrating the former alignments of the PRR, note the newer York Haven line stays close the shore on the Eastern (top) bank of the Susquehanna all the way from Shocks Mills (left) to Columbia (right). This included the fill across a river bend just beneath Hempfield which became known as Kerbaugh Lake. Also noteworthy is the trackage snaking up the inland side of Chickies Ridge, this was the Columbia & Donnegal Electric Railway, a trolley line which operated an amusement park at Chickies Rock.

A 1906 USGS topographical map illustrating the former alignments of the PRR, note the newer York Haven line stays close the shore on the Eastern (top) bank of the Susquehanna all the way from Shocks Mills (left) to Columbia (right). This included the fill across a river bend just beneath Hempfield which became known as Kerbaugh Lake. Also noteworthy is the trackage snaking up the inland side of Chickies Ridge, this was the Columbia & Donnegal Electric Railway, a trolley line which operated an amusement park at Chickies Rock.

A 1956 USGS topographical map showing the changes as a result of the 1936 flood. Note Kerbaugh Lake is filled in, the Columbia branch is gone and the Columbia and Donnegal Electric Trolley and park have been abandoned.

A 1956 USGS topographical map showing the changes as a result of the 1936 flood. Note Kerbaugh Lake is filled in, the Columbia branch is gone and the Columbia and Donnegal Electric Trolley and park have been abandoned.

Philadelphia Division: Rowenna - Marietta

Continuing East on the York Haven line from Shocks Mill Bridge, we encounter more history on the fabled low-grade project of Alexander Cassatt. The east bank of the Susquehanna River was host to two major modes of transportation by the mid 1800’s, the Public Works Canal and the Columbia Branch of the Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad. By the time plans came for the new low-grade the canals had been largely abandoned for some time, however the Columbia Branch became a vital link to the original Philadelphia and Columbia as well as the Columbia & Port Deposit Railroad providing connections to the mainline via Royalton. While designing the new low-grade the Columbia branch was the choice line to connect the Northern Central via the new Shocks Mills bridge, the old alignment would require revisions to fit the requirements of the new line. By the turn of the century Cassatt’s low-grade project would bring big changes to the local railroad scene. With the consolidation and construction of the new freight network many of the older track alignments were abandoned in favor of a separate right of way to avoid pedestrian and street traffic. Common to many locations on the PRR, these abandoned segments were either sold off or utilized as stub end tracks to serve industries still active near the town centers.

Interlocking plate of "Shocks" location of the junction of the former Harrisburg and Lancaster branch between Royalton and Columbia and the low-grade York Haven Line. Note the track diverting to the right of the interlocking point titled "to yard", this is the original alignment of the H&L Columbia Branch retained to serve several freight customers.     Plate collection of   The Broad Way  .

Interlocking plate of "Shocks" location of the junction of the former Harrisburg and Lancaster branch between Royalton and Columbia and the low-grade York Haven Line. Note the track diverting to the right of the interlocking point titled "to yard", this is the original alignment of the H&L Columbia Branch retained to serve several freight customers. Plate collection of The Broad Way.

In the village of Rowenna, just east of the Shocks Mill Bridge, a segment of the old Harrisburg and Lancaster drops off the embankment where the Royalton - Columbia branch and the York Haven line meet at an interlocking simply known as Shocks. This spur continued parallel to the mainline for several miles accessing agricultural industries and a military transfer depot constructed during World War II. Sill in service today, this branch serves the former Military installation, now an industrial park as well as a feed trans-load facility off Vinegar Ferry Road.

Remaining trackage from the old Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad's Royalton - Columbia Branch, now an industrial track retained to serve a few local customers. The active 1902 York Haven line alignment is out of view to the to right on an elevated fill to accommodate trains off the Shocks Mill Bridge  .

Remaining trackage from the old Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad's Royalton - Columbia Branch, now an industrial track retained to serve a few local customers. The active 1902 York Haven line alignment is out of view to the to right on an elevated fill to accommodate trains off the Shocks Mill Bridge.

Just a few miles further east we enter the Borough of Marietta. Established in 1812, Marietta once boasted many river, rail and canal dependent industries. On the south end of town remnants of the old Columbia Branch surface in an isolated area bound by Chiques Creek and Furnace Road. This area, which the creek and a local iron furnace are named after (albeit different spellings) derives from the Native American word Chiquesalunga, or crayfish. In different eras it has been spelled Chickies, Chikis and Chiques but all refer to this common meaning. The Chickies Furnace #1 opened in 1845 with production thriving until the late 1890’s closing due to better, more efficient facilities, most likely in nearby Steelton.

Remaining bridge piers of the former Columbia branch stand up-stream in Chiques Creek. In view is one of William H. Brown's typical stone arch bridges on the active York Have line. This area is located at the former site of the Chickies Furnace, an early site of iron production in the 1800's.

Remaining bridge piers of the former Columbia branch stand up-stream in Chiques Creek. In view is one of William H. Brown's typical stone arch bridges on the active York Have line. This area is located at the former site of the Chickies Furnace, an early site of iron production in the 1800's.

Among the foundations and rubble that remains of the former Chickies Furnace #1, the Columbia branch can be found along the old canal bed. You can spot telltale signs of PRR construction methods, the most immediate is the use of the ubiquitous 3 pipe railings on a bridge over a sluice between the canal and creek. Piers also remain from a deck bridge that carried the branch over the creek prior to the 1936 flood while the former roadbed of cinder ballast provides reference of where the line entered the area from the west. Just down stream on Chiques Creek, the York Haven line crosses the outlet to the Susquehanna on a W. H. Brown trademark 3 arch stone bridge well above high water. The history of when the Columbia branch was abandoned ties into not only the construction of the low-grade but also the great flood of 1936, subject of next week’s post!

Alternate view looking upstream at Chickies Furnace reveals the dam that fed a channel for the old iron works as well as the various walls that date back to the original 1846 furnace site. Note the piers from the former Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad Columbia branch. The piers were most likely upgraded around the same time the low-grade was built judging by the similarities in the stone when compared to the newer arch bridge down stream.

Alternate view looking upstream at Chickies Furnace reveals the dam that fed a channel for the old iron works as well as the various walls that date back to the original 1846 furnace site. Note the piers from the former Harrisburg, Portsmouth, Mount Joy and Lancaster Railroad Columbia branch. The piers were most likely upgraded around the same time the low-grade was built judging by the similarities in the stone when compared to the newer arch bridge down stream.

Philadelphia Division: Shocks Mills Bridge

During a developing thunderstorm the Shocks Mills bridge reveals its scars with the back lighting emphasizing the difference between the original stone arches and the replacement deck girder spans to the left. This view is from a large rock cluster in the river looking north from the east bank of the mighty Susquehanna River.

During a developing thunderstorm the Shocks Mills bridge reveals its scars with the back lighting emphasizing the difference between the original stone arches and the replacement deck girder spans to the left. This view is from a large rock cluster in the river looking north from the east bank of the mighty Susquehanna River.

Perhaps the bane of Chief Engineer William H. Brown's existence, the Shocks Mill Bridge is of significant note among the countless stone arch bridges, overpasses and culverts constructed on the PRR during his tenure. Opened in 1903 the Shocks Mills bridge was a part of the low-grade freight only line being constructed to connect Philadelphia and Harrisburg. Situated roughly 8 miles railroad west of Columbia the strategic bridge and accompanying line linked the Northern Central in Wago with existing lines in Columbia and ultimately the new Atglen and Susquehanna further down river. The 28 arch stone bridge was over 2200 feet long spanning the Susquehanna River with trains riding approximately 60 feet above low water. A smaller sister to the beautiful Rockville Bridge further upstream, initial construction cost the PRR $1 million dollars to build the bridge and long fill on the eastern approach. However problems with the bridge developed when piers began to settling in 1904 resulting in more money and time spent to reinforce the compromised areas of the span. After this additional work the bridge endured decades of heavy use and the additional of catenary during the later electrification phase of freight lines in 1937-38.

shocksmills.001

In June of 1972, Hurricane Agnes would batter the East Coast causing record floods throughout the area resulting in over 3 billion dollars in damage and causing over 128 fatalities. Cash starved Penn Central was hit hard having multiple washouts throughout the system but one of more significant would be the loss at Shocks Mill. On July 2nd, 1972 a train crew noticed problems with the center piers of the bridge as flood waters raged below during one of the worst natural disasters in American history. Soon after, six piers toward the center of the stone bridge would collapse rendering the low-grade line useless until the damage could be assessed and rebuilding could take place. Becuase the PC was under bankruptcy protection court permission was sought to rebuild the vital link. Started late in the third quarter of 1972 the new construction was completed by August of 1973 utilizing nine new concrete piers supporting deck girder spans to bridge the void. Until settling compromised a pier on the Rockville bridge in 1997 this would be the only major failure on record of the proven and sturdy construction methods Brown used during his 25 year tenure as Chief Engineer.

Philadelphia Division: Cordorus Creek

CodorusCreek.001

During the construction of the low-grade, surveyors encountered several obstacles in the form of creeks and rivers. At approximately milepost 47 on the York Haven Line, Chief Engineer, William H. Brown handled Codorus Creek like many others around the system utilizing the standard cut stone masonry arch bridge, this one consisting of five arches. The Codorus bridge curves to the east on a high fill as  the mainline climbs toward the Shocks Mill Bridge over the Susquehanna River, less than a mile to the east.

Philadelphia Division: Cly

Former location of Cly block station and interlocking. The tower actually sat just around the curve, with this bridge supporting the eastbound home signals. Note the extra space on the right, this area was once four tracks wide with the Northern Central and York Haven Lines coming down from Enola.  Four miles east of here the NC would diverge from the York Haven Line at Wago Junction. This location was once part of the electrified low-grade line, evident by the cut steel posts on the left side of the tracks. Norfolk Southern has been doing considerable work here replacing rail, signals and general clean-up. After making this photo the former PRR signal bridge would fall, being cut up, further eliminating the visual clues that speak to the heritage of this line.

Former location of Cly block station and interlocking. The tower actually sat just around the curve, with this bridge supporting the eastbound home signals. Note the extra space on the right, this area was once four tracks wide with the Northern Central and York Haven Lines coming down from Enola.  Four miles east of here the NC would diverge from the York Haven Line at Wago Junction. This location was once part of the electrified low-grade line, evident by the cut steel posts on the left side of the tracks. Norfolk Southern has been doing considerable work here replacing rail, signals and general clean-up. After making this photo the former PRR signal bridge would fall, being cut up, further eliminating the visual clues that speak to the heritage of this line.

Leaving the greater Harrisburg / Enola area from the west bank of the Susquehanna, the PRR's York Haven Line drops down river toward Columbia, PA. This line was a key component of PRR president Alexander J. Cassatt’s plan to build a low-grade freight bypass diverting traffic off the mainline from the Philadelphia area. Existing lines and new construction in the early 1900’s provided access to Baltimore by way of both the Northern Central via York and the Columbia and Port Deposit Branch via mainline connection at Perryville, Philadelphia via the new Atglen & Susquehanna and Lancaster via the original Philadelphia & Columbia. Running a distance of 15 miles east from Enola Yard along the former Northern Central alignment, this “branch” was actually one of the busiest electrified freight arteries in the east. Alongside the Susquehanna River in the town of Cly, the railroad maintained an interlocking here connecting the York Haven Line to the Northern Central. These lines would run parallel to Wago Junco where the NC drops southwest toward the city of York.

Plate drawing of Cly interlocking circa 1963. Note on the bottom right the Northern Central was already reduced to one track east of the interlocking in the vicinity of Cly tower and Wago Junction where the line physically split off from the York Haven line to Columbia. By this time little freight traffic traveled east of York on the former Northern Central route and passenger traffic no longer warranted double track in many locations. Plate drawings collection of  http://broadway.pennsyrr.com/Rail/Prr/Maps/.

Plate drawing of Cly interlocking circa 1963. Note on the bottom right the Northern Central was already reduced to one track east of the interlocking in the vicinity of Cly tower and Wago Junction where the line physically split off from the York Haven line to Columbia. By this time little freight traffic traveled east of York on the former Northern Central route and passenger traffic no longer warranted double track in many locations. Plate drawings collection of http://broadway.pennsyrr.com/Rail/Prr/Maps/.

Cly tower was constructed in 1906; one of the few PRR interlockings utilizing an Armstrong plant of mechanical levers to control switches over the later US&S electro-mechanical installations.  Constructed of brick the two-story tower was a contrast to neighboring installations built in the late 1930’s like Cola to the east, which controlled long stretches of line utilizing a Centralized Traffic Control installation. Though an important junction the Northern Central to York was never a preferred freight route in later days of the PRR hosting passenger trains and local freight. During the Penn Central years the route suffered heavy damage as a result of Hurricane Agnes. In a dire financial situation, Penn Central opted not to rebuild the route and Cly’s importance as an interlocking diminished resulting in the eventual closing of the tower in the early 1980’s under Conrail. Today there is little left here as Norfolk Southern works to modernize this line, the catenary poles have been cut down and position light signals replaced with modern installations. While connection is still made to the branch to York in a simplified interlocking at Wago the modern Cly is a mere curve and grade crossing at milepost 54 of the Enola Branch.
