New Line: PRR's Lancaster Cut-Off

1912 Sanborn Map Illustrating the addition of the Lancaster Cut-Off which would divert traffic away from the PRR's congested Old Main through the city center. Map collection of the Penn State University Library.

1912 Sanborn Map Illustrating the addition of the Lancaster Cut-Off which would divert traffic away from the PRR's congested Old Main through the city center. Map collection of the Penn State University Library.

Opening in 1883 the Lancaster Cut-Off was part of a series of main line improvements to eliminate excessive grades, traffic congestion and operational issues associated with the original main line through downtown Lancaster. Under the direction of chief engineer William H. Brown a two-track bypass running along the city’s north side was constructed between Dillerville and an interlocking named CG where it joined the existing main line just west of the Conestoga River. Though originally designed to divert only through trains away from Lancaster the improved line became the preferred routing because of the continuing problems operating through the busy city center. As a result service to the station on Queen Street declined, stirring complaints from city officials who demanded better passenger rail service.

Interior view of the concourse bridge waiting area in the 1928-29 passenger station that replaced the antiquated Queen Street station facility on the Old Main.

Interior view of the concourse bridge waiting area in the 1928-29 passenger station that replaced the antiquated Queen Street station facility on the Old Main.

Complaints continued well into the 20th century until city officials and the PRR began negotiations for a new passenger station to be located on the Cut-Off. Construction of the new facility began in August of 1928 and was dedicated dedication on April 27th of 1929. Situated between Lititz Pike and North Prince Street the beautiful brick and limestone colonial revival styled station featured a second floor waiting room with large arched windows and limestone walls. A concourse bridge over the main line connected the waiting room with 2 high level platforms while baggage was moved via a subterranean tunnel and elevators from the neighboring express building located immediately west of the station.

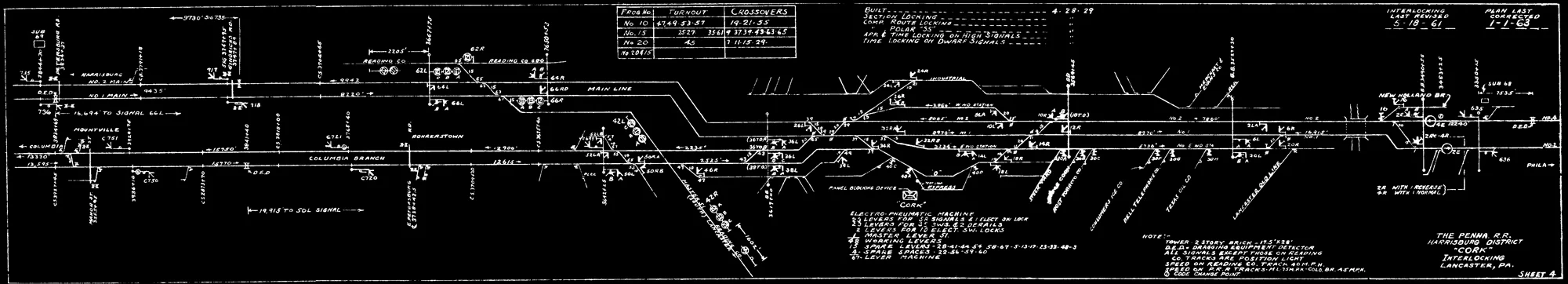

This plate drawing of the consolidated CORK interlocking plant circa 1963 illustrates the expansiveness of the consolidated territory which was once controlled be three separate towers. Plate drawing collection of The Broad Way.

This plate drawing of the consolidated CORK interlocking plant circa 1963 illustrates the expansiveness of the consolidated territory which was once controlled be three separate towers. Plate drawing collection of The Broad Way.

The construction of the new facility also necessitated additional track capacity since the old line would be largely abandoned after this project was complete. Sidings and runners were added to the two main tracks through the station complex. A new interlocking tower aptly named Lancaster controlled the new station trackage in addition to consolidating three existing interlocking towers: DV (Dillerville) - junction with the Old Line, Cut-off, Columbia branch and H&L to Harrisburg, CG (Conestoga) junction of the old main, cut-off and main line east and ES - junction with the New Holland Branch and end of the four track main line just east of the Conestoga bridge. Later renamed Cork this standard design tower of the Depression era was constructed of brick with a copper clad bay and hip roof. Inside the tower a 67 lever Union Switch & Signal Model 14 interlocking machine controlled the expansive physical plant.

As built the Lancaster Cut-Off was intended to bypass traffic that did not service the City of Lancaster, today the route is the sole surviving main line for Amtrak and Norfolk Southern operations based out of Dillerville. On the east end of the Cut-Off the grade of the Old Line can be spotted at former CG interlocking where the two lines split. (L) In the brush to the left you can make out the diverging path of the Old Main in the gap in the trees. (R) The expansive area around the main looking east is where the Old Line connected to the Cut-Off and main line east. Just out of view is the Conestoga River Bridge.

As built the Lancaster Cut-Off was intended to bypass traffic that did not service the City of Lancaster, today the route is the sole surviving main line for Amtrak and Norfolk Southern operations based out of Dillerville. On the east end of the Cut-Off the grade of the Old Line can be spotted at former CG interlocking where the two lines split. (L) In the brush to the left you can make out the diverging path of the Old Main in the gap in the trees. (R) The expansive area around the main looking east is where the Old Line connected to the Cut-Off and main line east. Just out of view is the Conestoga River Bridge.

Cork remained operational into the 21st century, during the Keystone Corridor rebuild several revisions to the interlocking simplified the infrastructure in the area pairing out the various control points and retrofitting the old building with new CTC like control boards mounted directly to the old interlocking machine. By the close of the first quarter of 2013 Cork’s local control was cut-over to Amtrak’s centralized dispatching center in Delaware, ending 84 years of continual service under three different railroads. Despite the loss of CORK the PRR passenger station continues to serve the city of Lancaster  undergoing a slow and expensive renovation that will renew its facade and interior while adding modern amenities like climate control and new electrical systems. It is unclear to the author if additional retail spaces will be developed in the lower level but the facility seems to be ripe with opportunity for travelers who visit the county seat, home to a vibrant arts and tourism region. Only time will tell what the final development of the Lancaster passenger station will bring but today it continues to serve its intended purpose maintaining the Pennsylvania Railroad's presence in the city of Lancaster.
