Harrisburg Terminal: Cumberland Valley Bridge

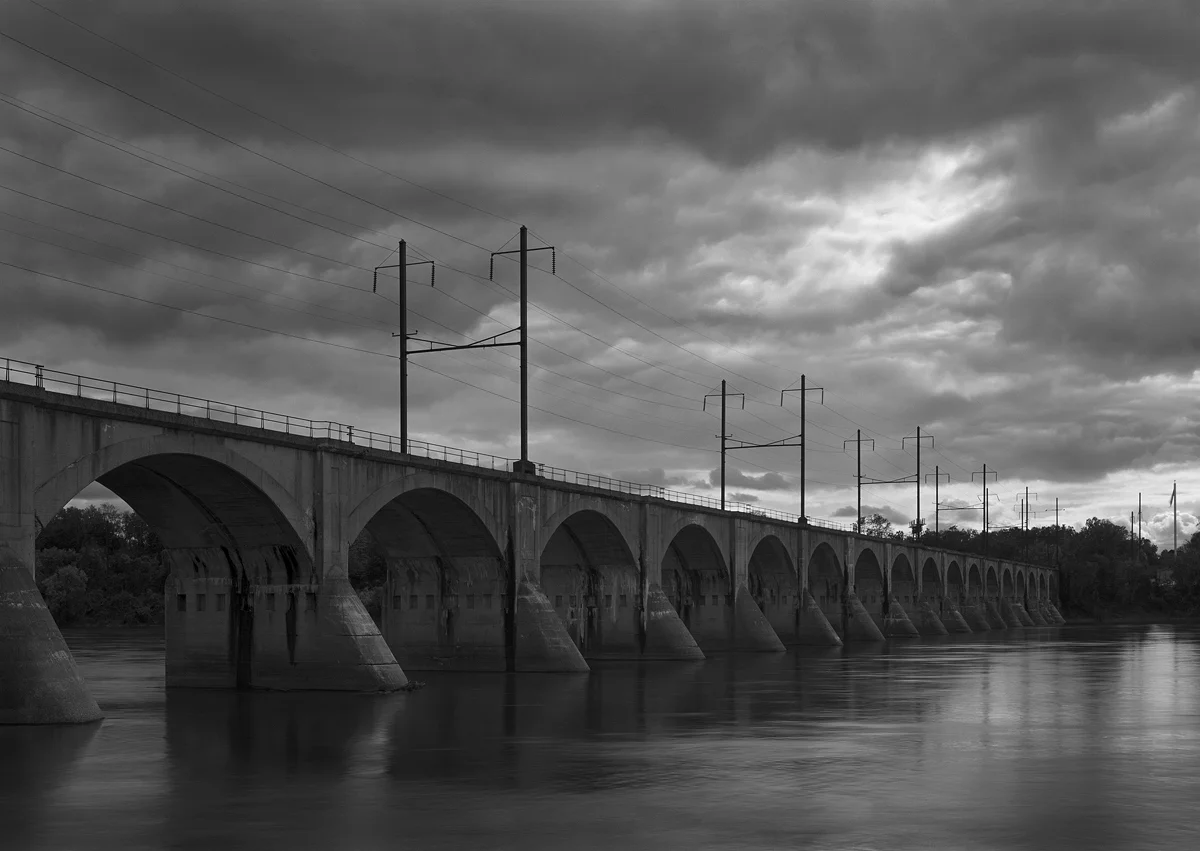

Cumberland Valley Bridge from City Island. View looking west toward Lemoyne.

Cumberland Valley Bridge from City Island. View looking west toward Lemoyne.

Following up from the last post on Lemoyne Junction we arrive at the Cumberland Valley Bridge. This strategic bridge provided the PRR with connections to the Cumberland Valley Line to Hagerstown, the York Haven Line, the mainline and Harrisburg passenger terminal. The existing bridge is the last of five such spans at this location dating as far back as 1839. The current bridge was completed in 1916 and comprised of 45 reinforced concrete arch spans carrying two main tracks over the Susquehanna between the Harrisburg passenger terminal at State interlocking and Lemoyne Junction. As part of the final phase of PRR electrification the bridge received catenary primarily for freight moves as most passenger trains operating over the bridge were coming off the non-electrified Northern Central from Baltimore. This bridge also acted as a relief valve in the event that problems developed at Rockville Bridge or Shocks Mill further south on the freight only Low Grade. The bridge survives but without train service, having had all trackage across the bridge removed after Conrail rerouted all trains over the neighboring Reading Company bridge to the south.

View of the Reading Railroad's neighboring bridge to the south, which replaced the Cumberland Valley Bridge after Conrail diverted all Hagerstown traffic to the Reading line to Shippensburg, Pennsylvania.The Reading structure was completed in 1924 and consists of fifty one concrete reinforced arches.

View of the Reading Railroad's neighboring bridge to the south, which replaced the Cumberland Valley Bridge after Conrail diverted all Hagerstown traffic to the Reading line to Shippensburg, Pennsylvania.The Reading structure was completed in 1924 and consists of fifty one concrete reinforced arches.
